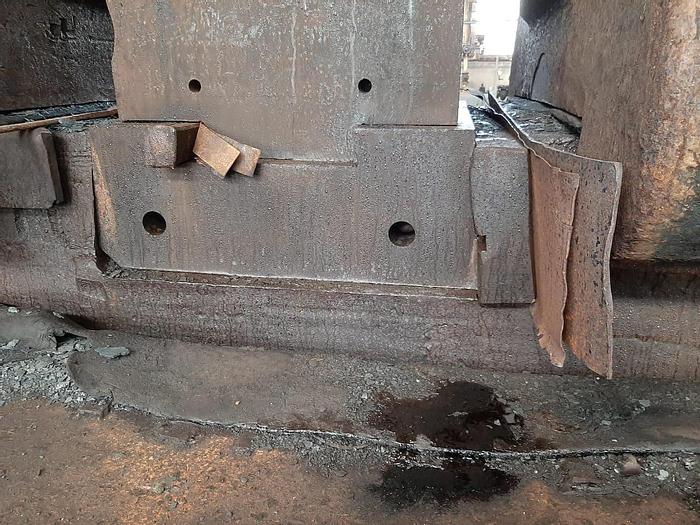

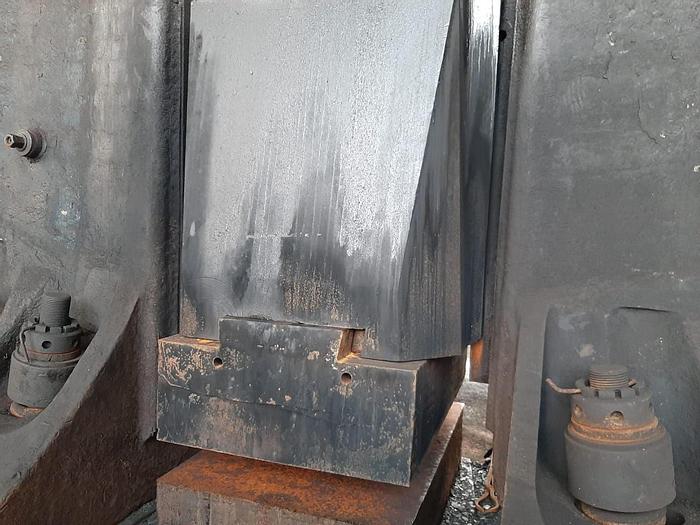

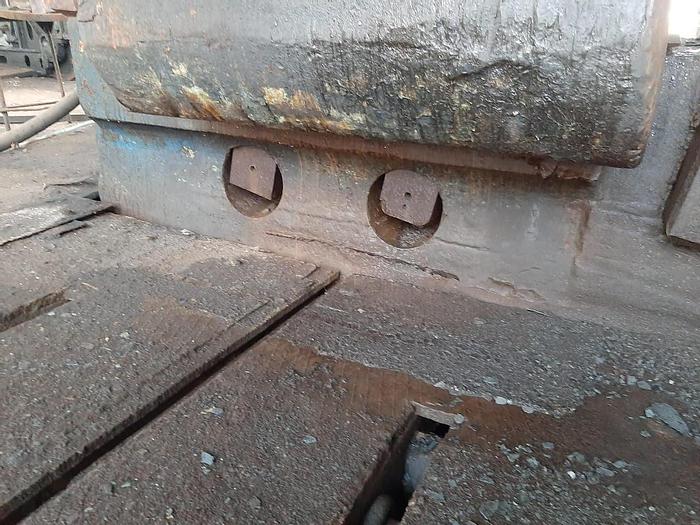

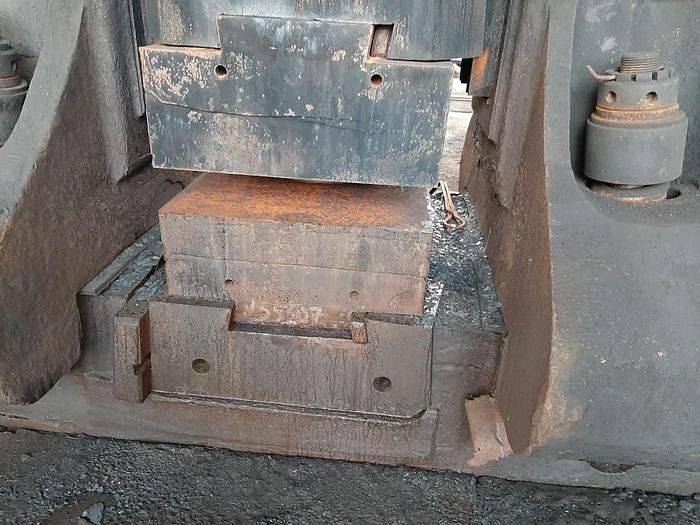

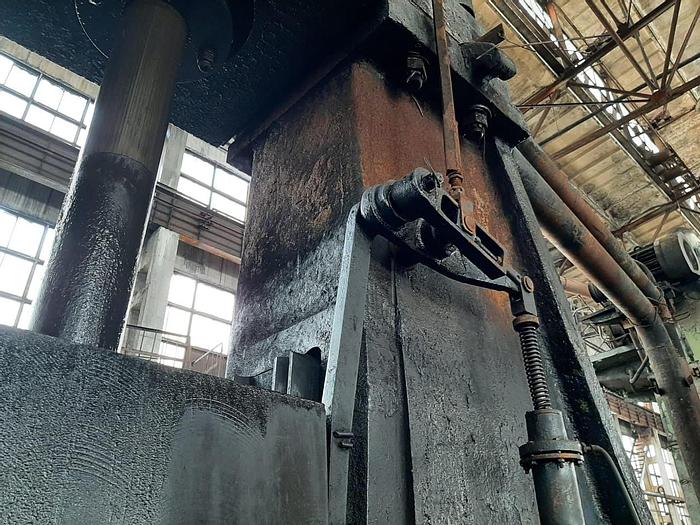

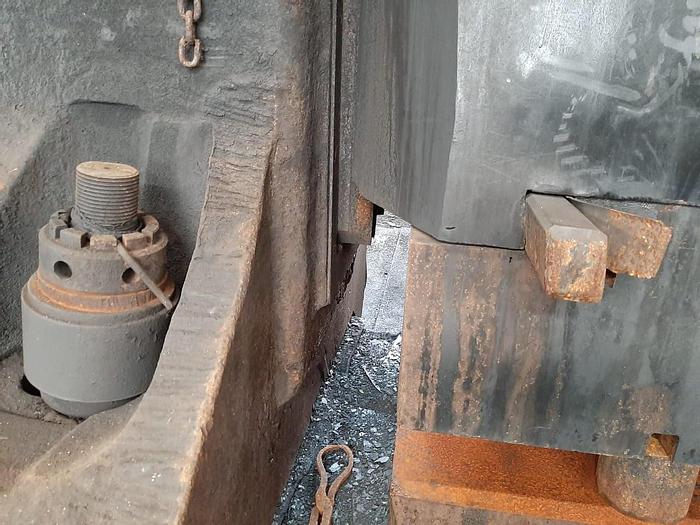

Hammer Forging Pneumatic 18KP
Sold
Specifications
Manufacturer | Kramatorsk |
Model | 18KP |
Condition | Used |
Stock Number | MA1564 |
Item condition | Good condition |
Capacity tons | 10 |
Description
Capacity : 10 tons,
Weight of falling part,nominal mass of drop parts without upper instr. : 9 tons,
Effective working kinetic energy after blow : 25000 kg mtr.,
Max. working ram stroke : 1400 mm,
Max no of blows : 30/min ,
Distance between slides : 1000 mm,
Shut height : 775 mm,
Ram size front to back : 1200 mm,
Bolster size front to back : 1200 mm,
Air pressure : 7-9 MPA ,
Height of instruments : 450 min.,
Die-holder front to back dimensions : 1400 mm,
Height above floor level : 7270 mm,
Hammer dimensions : 4400 x 10420 x 2700 mm,
Mass (less anvil block): 75 tons,
Weight : 205 tons.
