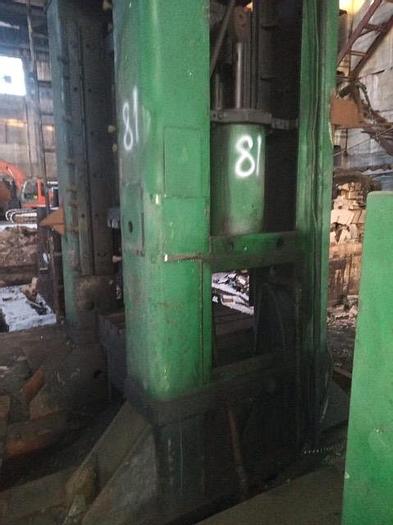

Press Trimming KD9536

Capacity : 400 tons

Slider stroke : 400 mm

Slider strokes per minutes : 25

Shut height : 670 mm,

Distance adjustment between table and slider : 160 mm,

Slider size : 800 x 800 mm,

Table size : 1000 x 1000 mm,

Table gap size : 630 x 630 mm,

Bolster plate thickness : 160 mm,

Table height above floor : 660 mm,

Max. stamp weight fixed on the slide : 1000 kg

Cushion stroke : 160 mm

Main power drive : 40 kW

Voltage : 340 V

Machine dimensions : 3470 x 3140 x 5940 mm,

Weight : 35 tons.
