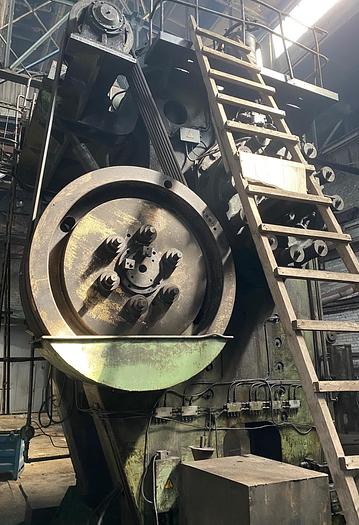

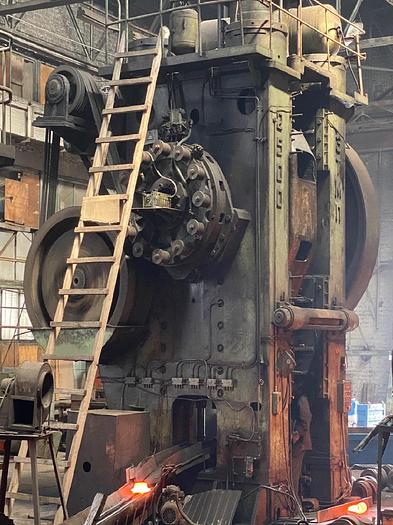

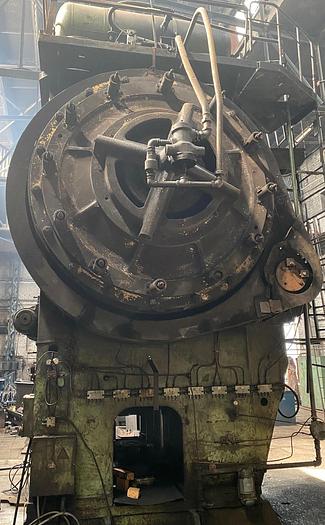

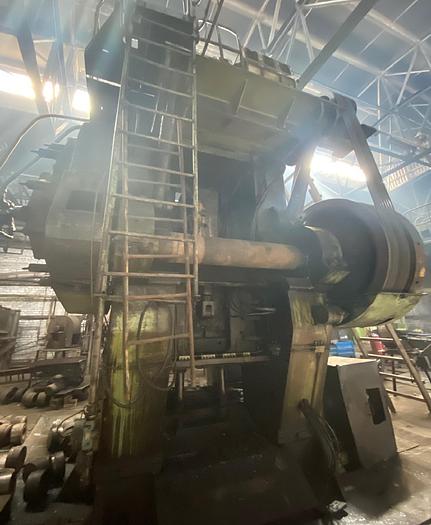

Press Hot Forging K8544
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | K8544 |
Year | 1975 |
Condition | Used |
Stock Number | MA1557 |
Condition | Good working condition |
Capacity tons | 2500 |
Description
Capacity : 2500 tons,
Ram Stroke : 350 mm,
Stroke per minutes : 60,
Shut height (ram down, table up) : 890 mm,
Table adjustment : 10 mm,
Distance between press columns : 1,320 mm,
Table dimensions (FB x LR) : 1,400 x 1,200 mm,
Ram dimensions (FB x LR) : 1,120 x 1,070 mm,
Mechanical upper ejector stroke : 0-60 mm,
Pneumatic lower ejector force : 10 ton,
Pneumatic lower ejector stroke : 70 mm,
Main motor power x rpm : 132 x 970 kW,
Press layout dimensions (FB x LR) : 4,680 x 5,350 mm,
Height above floor level : 6,400 (21 feet) mm,
Press weight : 190 tons.
