Lathe Vertical Turning CNC Rafamet Bost

CNC Vertical Lathe Double

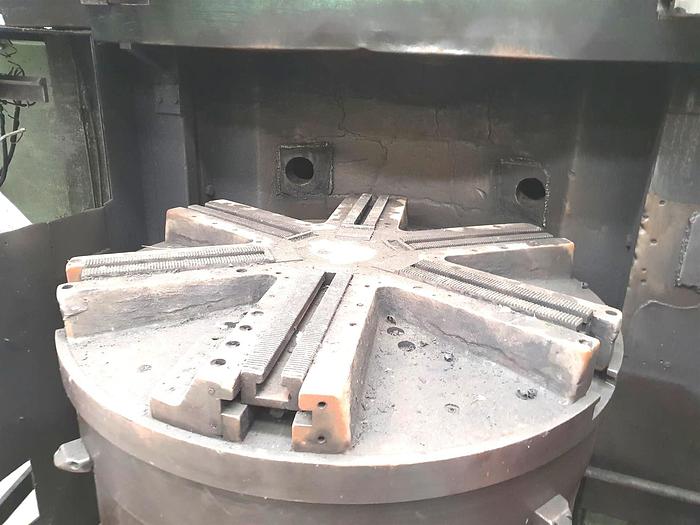

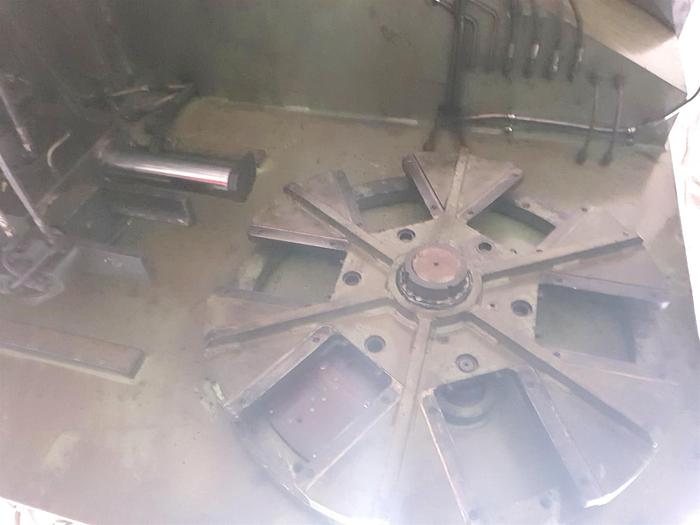

Chuck – Facep late : 1300 mm,

Max. Swing dia : 1600 mm,

Max. Turning length : 500 mm,

Height under tool post : 630 mm,

Chuck Turing speed – Gear I : 16 – 63 rpm,

Chuck Turing speed – Gear II :50 – 200 rpm,

Ram size : 220 x 220 mm,

Tool change system : Hydraulic,

Tool changer for Each ram : 6 places,

Turret Position : 12 places,

X1 & X2 Servo motors : 45 Nm / 2000 rpm,

Z1 & Z2 Servo motors : 45 Nm / 2000 rpm,

Machine size :4500 x 3000 x 3500 mm,

Main motor :141 kW / 2600 rpm,

Machine weight : Approx 22 ton,

Control : Siemense 850 4-axis,

Quantity No. : 4.

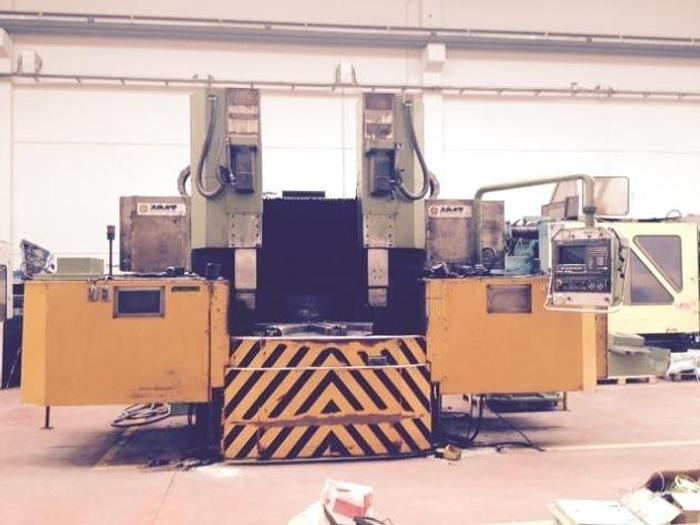

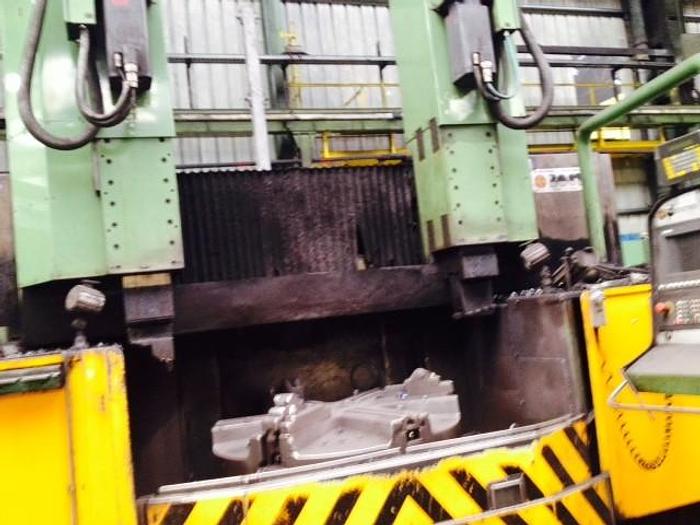

Double column machines with 2x heavy ram for Heavy Machining,

Machines were used to turn Railway & Metro wheels,

The machine is in Excellent Mechanical condition,

With machine documentation,

With extra/spare main motor gearbox.

Retrofit to new control.
