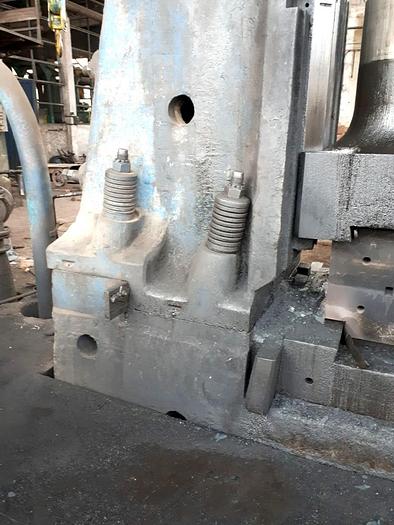

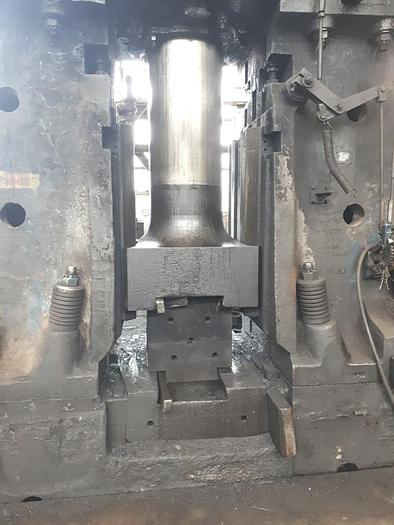

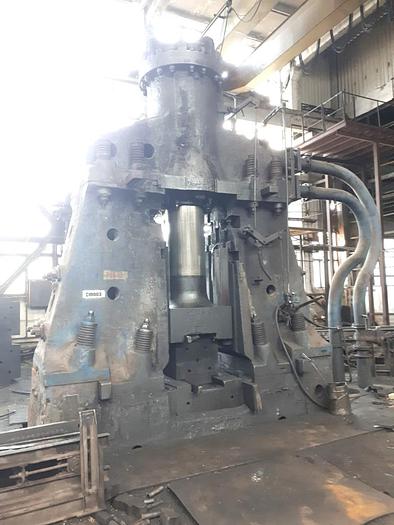

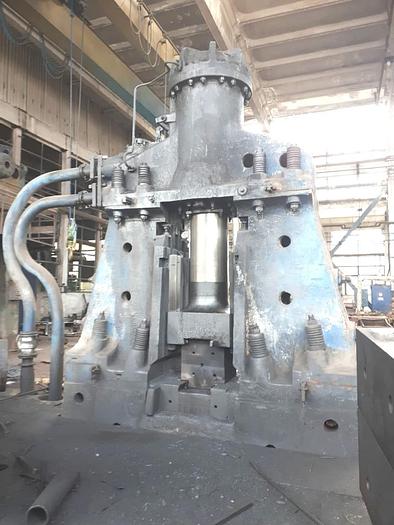

Hammer Forging Pneumatic CM6300
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | CM6300 |
Year | 1987 |
Condition | Used |
Stock Number | MA1510 |
Item condition | Good Condition |
Capacity tons | 6.2 |
Description
Analogue of Huta Zgmunt Hammer MPM 16000B
Capacity : 6.2 tons,
Maximum energy of impact at maximum stroke : 17500 kgm,
Maximum working stroke of ram : 1000 mm,
Number of blows per minute : 80,
Guideway spacing : 850 mm,
Length of die seat in the tup : 900 mm,
Length of die seat in the die holder : 1250 mm,
Min. height of the die (without tail) : 400 mm,
Max. weight of upper die : 1.8 tons,
Min. height of die partition above floor : 740 mm,
Steam or Incoming air pressure : 5-7 atm,
Average steam consumption : 1600 Kg/h,
Average air consumption : 30 m3/min,
Height of hammer above floor : 5000 mm,
Total height of hammer : 7500 mm,
Weight of anvil block without die holder : 120 tons,
Weight of hammer with anvil block : 168 tons.
