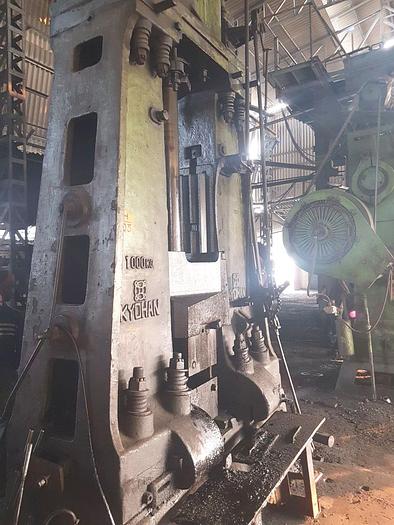

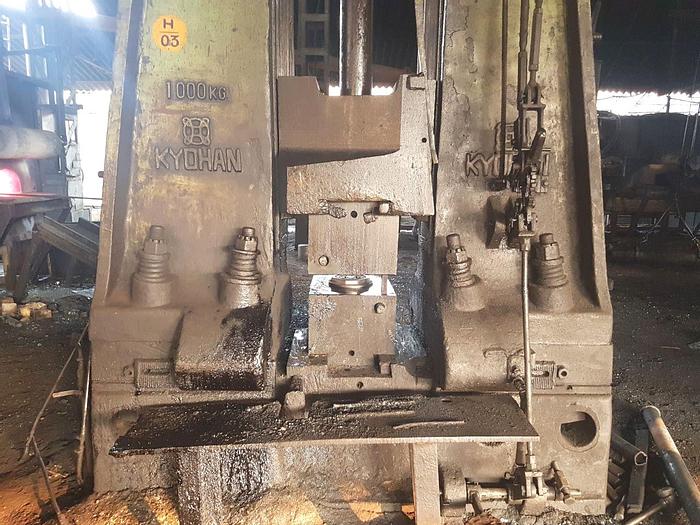

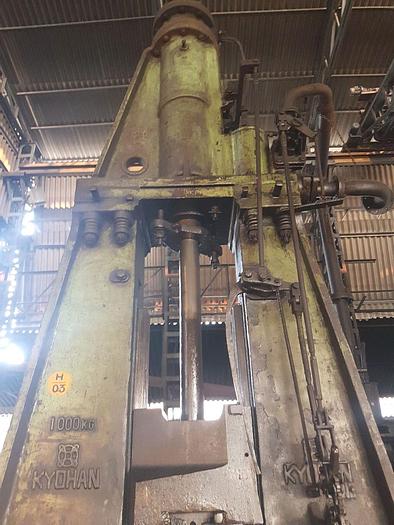

Hammer Forging Pneumatic 1 Kyohan, Japan
Sold
Specifications
| Manufacturer | Kyohan, Japan |
| Model | 1 |
| Year | 1984 |
| Condition | Used |
| Stock Number | MA1428 |
| Item condition | Good working condition |
| Capacity tons | 1 |
Description
Capacity : 1 ton,
Weight of the falling parts : 1000 kg,
Blow energy : 12500 kgf.m,
Max no. of ram strokes per minute : 30,
Ram travel : 850 mm,
Distance between columns : 650 mm,
Ram dimensions from front to back : 560 mm,
Die support dimensions from front to back : 690 mm,
Min. Distance between the ram and the die support : 500 mm,
Air(steam) pressure : 6 kgf/cmp,
Overall Dimensions :
Length : 2235 mm,
Width : 750 mm,
Height from the ground : 4800 mm,
Anvil weight (approx.) : 20 tons,
Total weight of the hammer(approx) : 32 tons.
