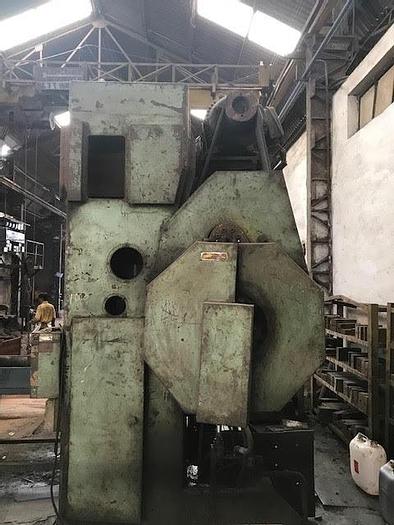

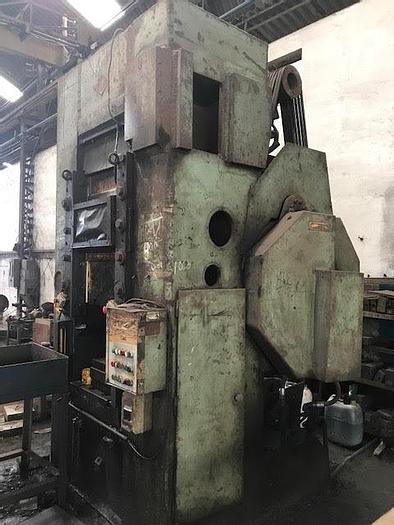

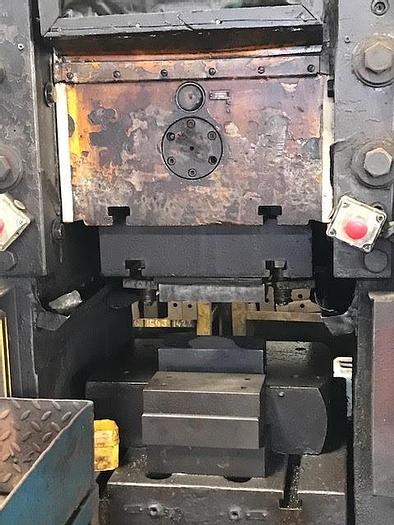

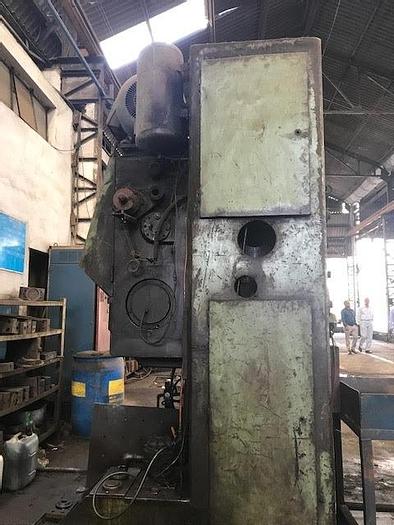

Press Knuckle Joint Coining K8338

Capacity : 630 tons,

Ram stroke : 150 mm,

Number of strokes in 1 min. : 40,

Shut height : 420 mm,

Stamping area : 560 mm,

Stamping area adjustment : 15 mm,

Table size : 630 x 630 mm,

Ram dimension front-back : 500 mm,

Lower knockout Stroke : 90 mm,

Lower knockout Force : 200 kN,

Upper knockout Stroke : 16 mm,

Upper knockout Force : 60 kN,

Main drive motor power : 21 kW,

Overall dimensions : 2214 x 1485 x 3610 mm,

Weight : 13.5 tons.
