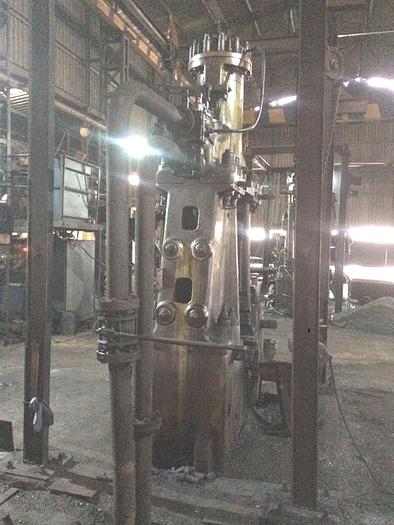

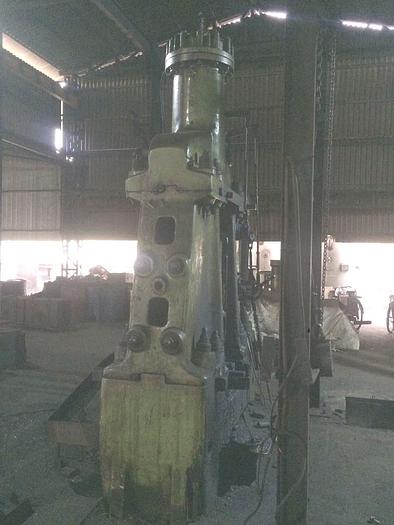

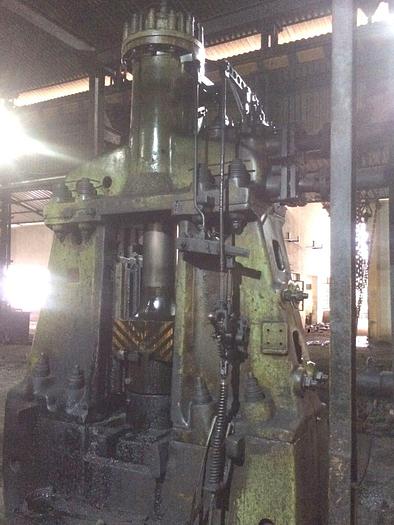

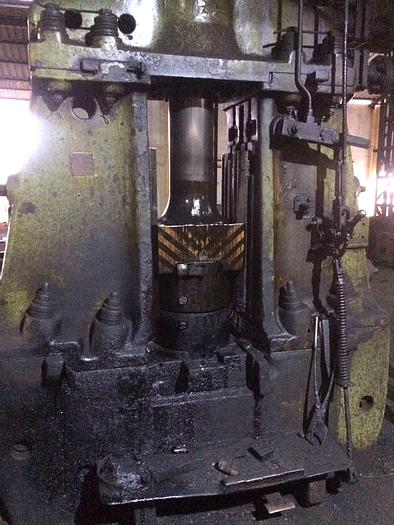

Hammer Forging Pneumatic MPM1600B

Capacity : 0.75 tons.

Energy of blow : 18.4 KJ,

Weight of falling part (without die) : 690 kg,

Max weight of upper die : 200 kg,

Weight of anvil block without die holder : 12.5 tons,

Weight of hammer with anvil block : 22 tons,

Approximate forging weight : 0.5-1 kg,

Average steam consumption : 380 kg/h,

Average air consumption cold : 10 m3/min,

Average air consumption hot : 7 m3/min,

Number of blows per minute : 120 1/min,

Overall dimensions :

Length of hammer : 2100 mm,

Width of hammer : 1185 mm,

Total height of hammer : 3850 mm,

Height of hammer : 3440 mm,

Min height of die partition above floor : 800 mm,

Min height of the die (without tail) : 180 mm,

Guidway spacing : 418 mm,

Length of the die seat in the tup : 400 mm,

Length of the seat in the die holder : 600 mm,

Max width of working area : 450 mm,

Max tup stroke : 750 mm.
