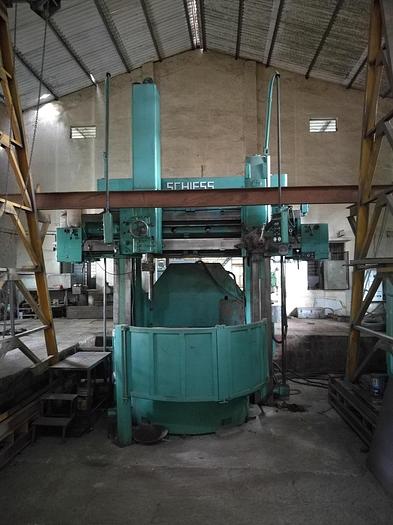

Lathe Vertical Turning KZ200
Specifications
| Manufacturer | Schiess |
| Model | KZ200 |
| Year | 1960 |
| Condition | Used |
| Stock Number | MA1415 |
| Item condition | Good working condition |
| Capacity tons | 2200 |
Description
Double Column Vertical Turning Lathe :

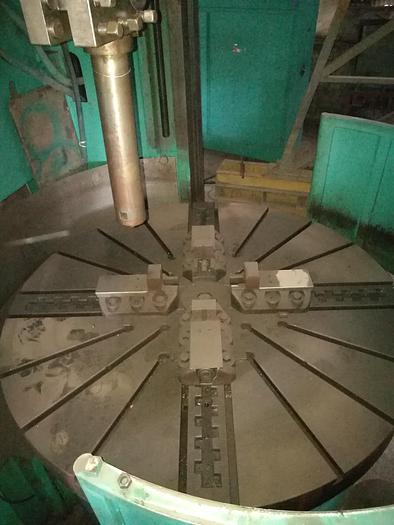

Table diameter : 2000 mm,
Max. turning diameter : 2200 mm,
Max. turning height : 1500 mm,
Vertical stroke of each ram : 1050 mm,
Max. load on chuck : 6 Ton,
Chuck speed max : 122 RPM

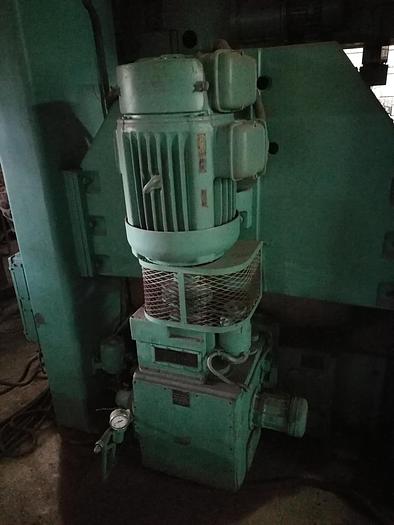

Main motor power : 60 HP
Machine weight : 22 ton,
Machine Size 4800 mm (W) X 4000 mm (L) X 4100 mm (Ht)
Power 415V AC, 3 Phase, 50 Hz,
4 off independent chuck jaws.

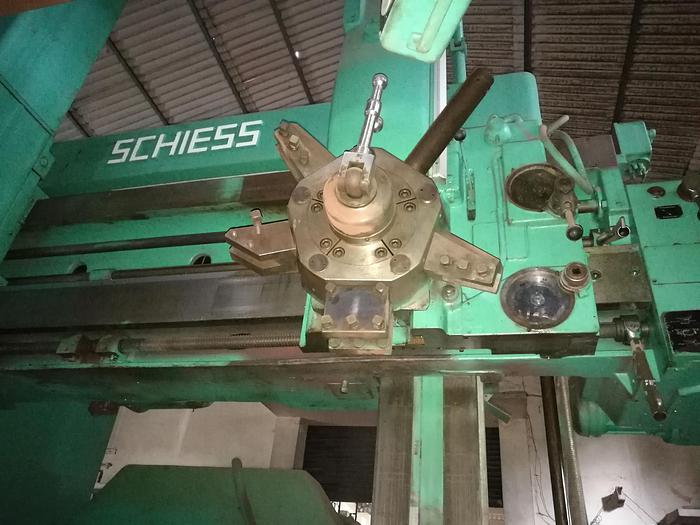

5 position manually operated turret to RH Saddle.
The machines include all the attachments which we have for them for tool holding etc.
