Hot Forging Line ASH100-150/2W-2Y-M
Specifications
Manufacturer | Kramatorsk |
Model | ASH100-150/2W-2Y-M |
Year | 2011 |
Condition | Used |
Stock Number | MA1406 |
Item condition | Excellent working condition |
Capacity tons | 6300 |
Description
Hot Forging Line :

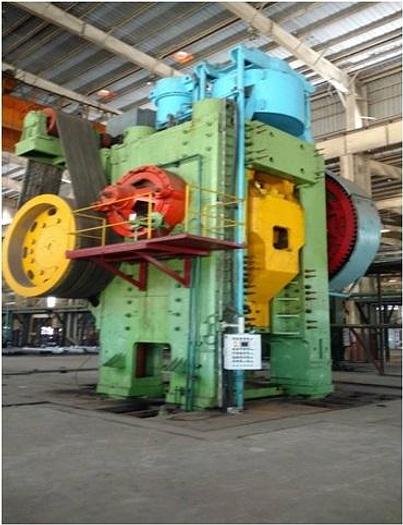

1) Press Hot Forging :
Capacity : 6300 tons,
Stroke : 460 mm,
Stroke per minute : 12,5-40 stroke/min.,
Shut height : 1150 mm,
Table height adjustment : 15 mm,
Table dimensions : 1590 x 1900 mm,
Ram dimensions : 1680 x 1680 mm,
Upper knock-out capacity : 10 ton,
Lower knock-out capacity : 16 ton,
Height above floor level : 9500 mm,
Main motor power : 400 kW,
Dimensions : 8600 x 5900 mm,
Weight : 650 tons

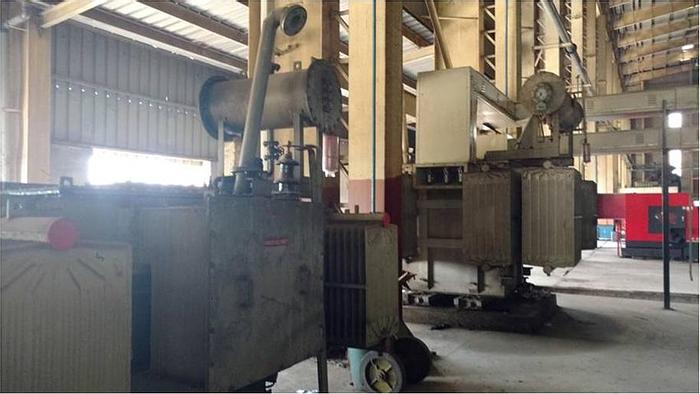

2) Prolec 750 KVA Transformer
Qty : 1 No.
3) Indotech 3000 KVA Transformer
Qty : 1 No.

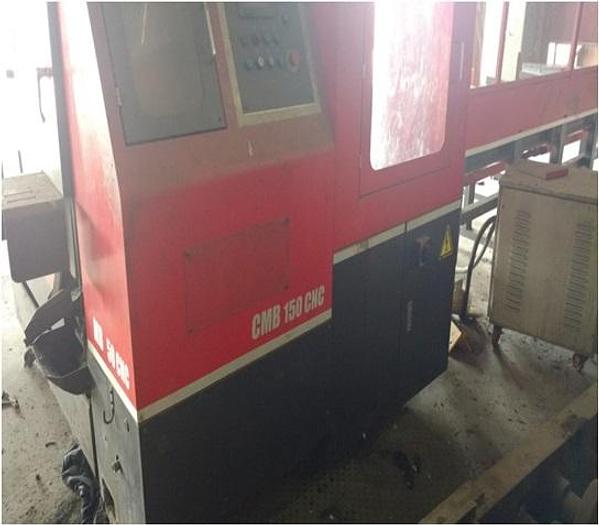

4) Circular Saw Machine :
Make : Amada,
Model : CMB 150 CNC,
Year : 2011,
Qty : 2 Nos.
5) Induction Billet Heater, Coil & Hydraulic Pusher :
Make : Inductotherm,
Out Put : 2400 KW,
Coil Dia : 125,
Coil Dia : 110.

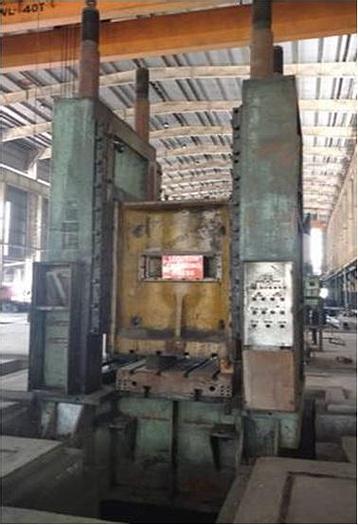

6) Trimming Press :
Capacity : 1000 Tons,
Model - K9540
Make –Russian,
Qty : 1 No.
7) Continuous Suspended Tray Hardening Controlled Atmosphere & Tempering Plant for Crank Shafts and Small Forging heat Treatment Furnace with Control Panel :
Make : Fluidtherm,
Qty : 1 No,
Model : STF. 55/80/100/PQ/OQ/6TH,
Type : 1500 Kg/Hr,Net.

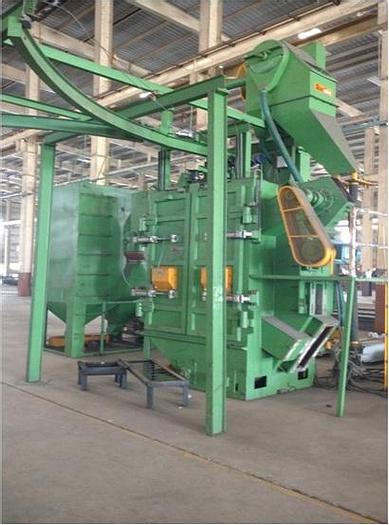

8) Surface Airless Shot Blasting Machine Hanger Type :
Make : Surfex,
Model : ASH100-150/2W-2Y-M,
Qty : 1 No.
