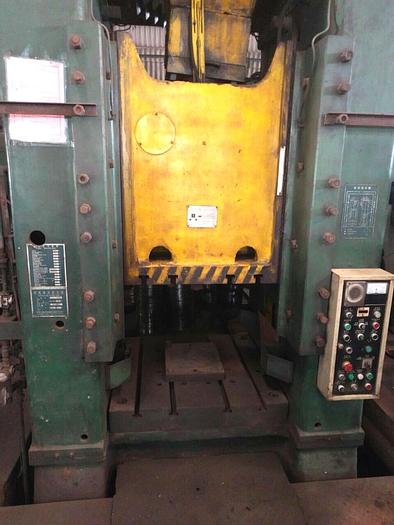

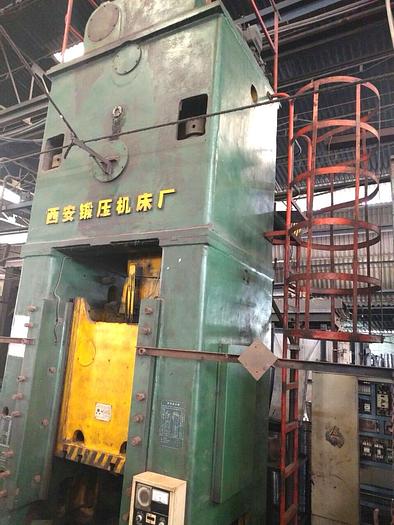

Press Trimming Chinese J31-250B Chinese

Capacity : 250 tons,

Ram stroke : 315 mm,

Nominal force stroke : 10.4 mm,

Stroke per minutes : 20,

Max. die - mounting height : 490 mm,

Die mounting height regulating variable : 200 mm,

Distance among guideways : 810 mm,

Plate thickness : 140 mm,

Plate size : 1000 x 950 mm,

Slide bottom surface size (L.R. x F.B) : 980 x 850 mm,

Clutches gas pressure : 0.45 MPa,

Main motor

Type : YH200L-4B3,

Power : 30 kw,

Speed : 1380 r/min,

Die mounting height accommodation

Type : YI32S-8-B5,

Power : 2.2 kW,

Speed : 750 r/min,

Air cushion

Ejecting force : 63 kN,

Pressing force : 400 kN,

Stroke : 150 mm,

Total weight of press : 30.5 tons.

Technical manuals available.
