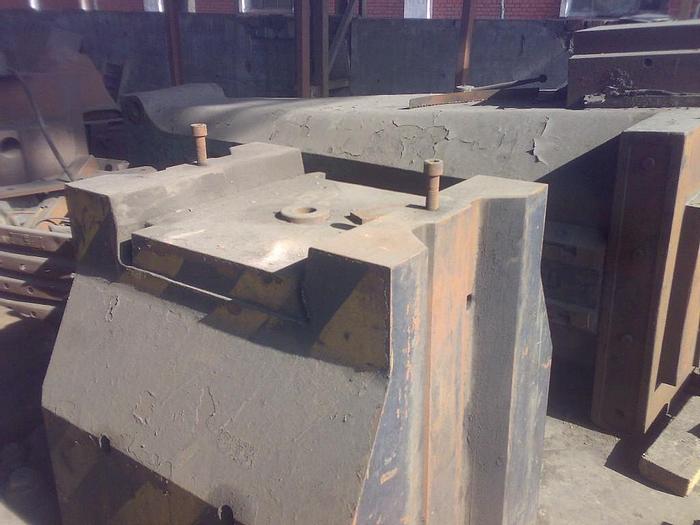

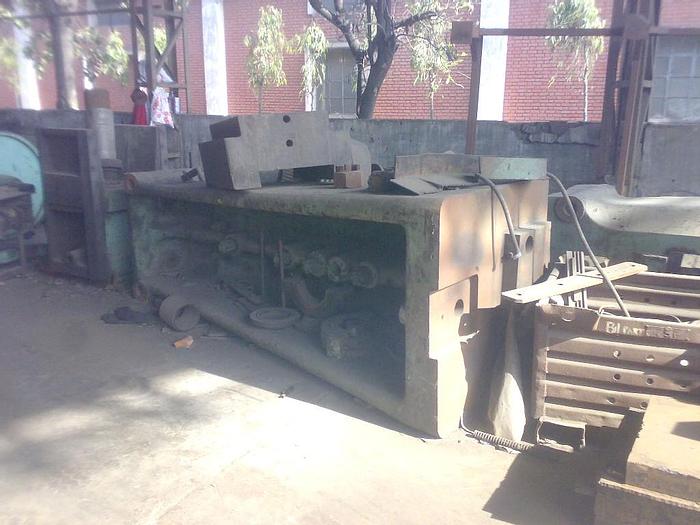

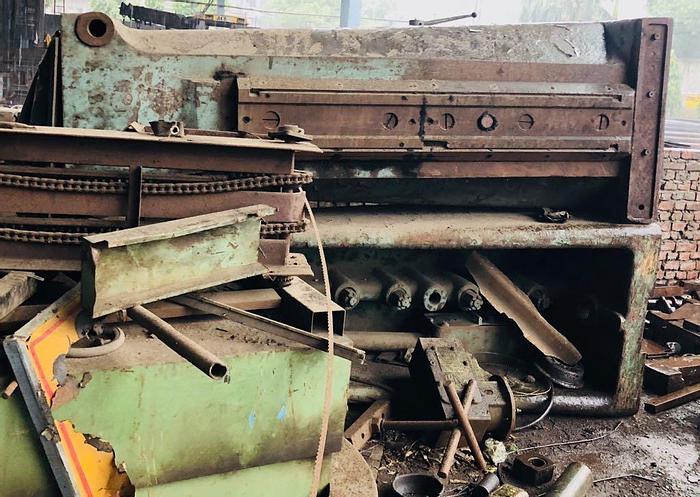

Hammer Forging Hydraulic KH315

Blow work : 31.5 kJ,

Drop weight (ram and die holder) : 2900 kg,

Drop height to reach max. blow energy : 700 mm,

Max. blow frequency at nominal working capacity : 67 1/min,

Die height (without dovetails) at max. blow energy : 400 mm,

Height of die recess without dovetails : 150 mm,

Daylight between guides : 700 mm,

Ram depth : 600 mm,

Height above floor : 5370 mm,

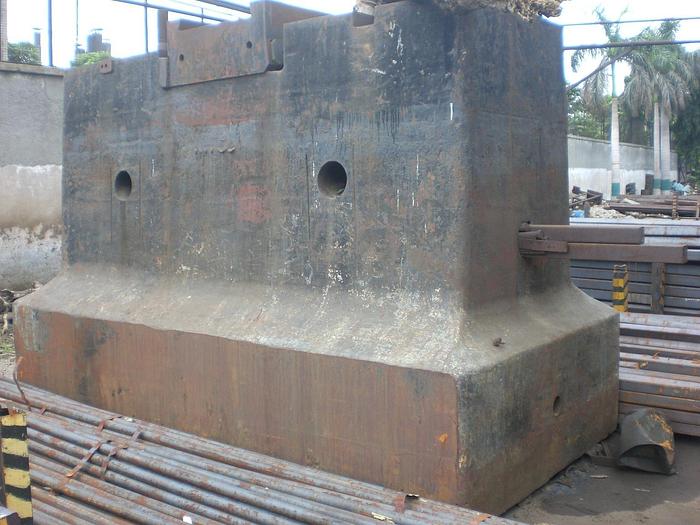

Weight of anvil : 37.5 tons,

Overall weight of the hammer : 70 tons,

Oil quantity in head container : 900 l,

Piston rod : Ø50 X 2.30 lg

Cylinder-F (daylight) : 160 mm,

Filling pressure : 7 bars,

Slowly "up" : 0.77 m/min,

Operating voltage : 440 V, 3-phase, 60 hz,

Control voltage : 220 V, 60 Hz,

Valve voltage : 24 V - DC

Main drive motor : 60 kW,

Control motor : 1.8 kW,

Lube pump motor : 0.09 kW.
