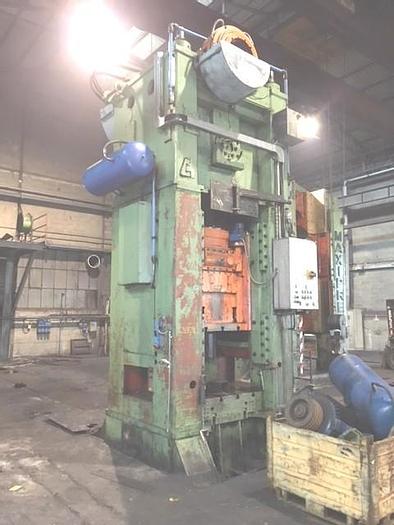

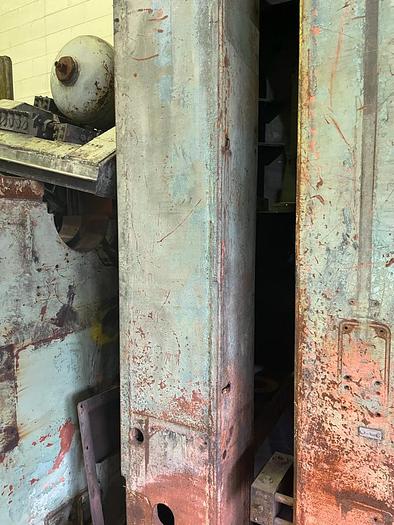

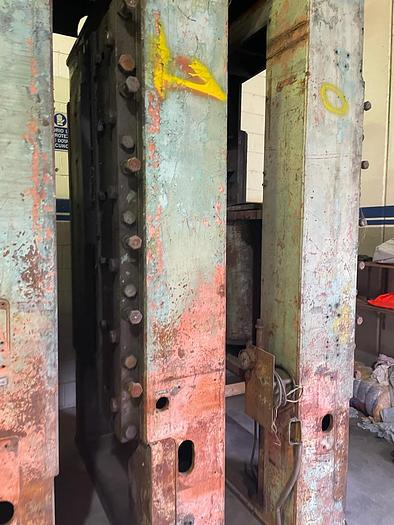

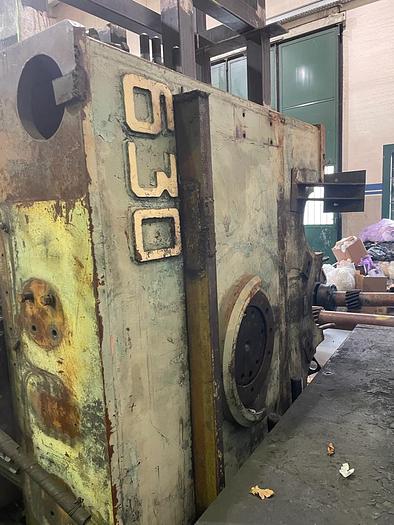

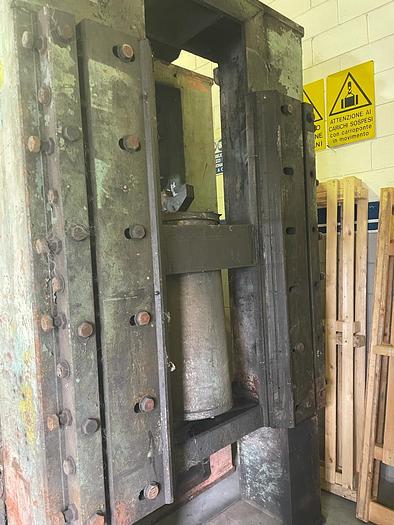

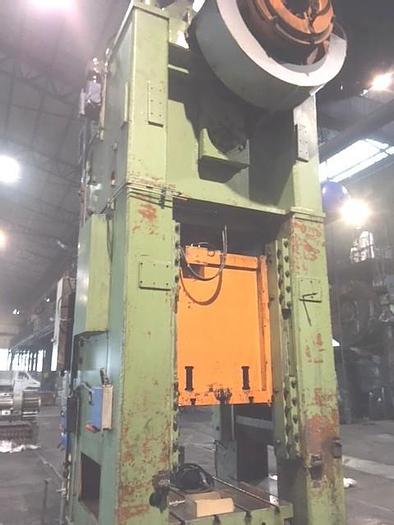

Press Trimming K9538

Capacity : 630 tons,

Slider stroke : 400 mm,

Slider strokes : 20 stroke per Min.,

Shut height : 570 mm,

Stroke path till its position where it develops nominal capacity : 9,5 mm,

Table size : 1250 x 1250 mm,

Table gap size : 800 x 800 mm,

Slider size : 1000 x 1000 mm,

Distance adjustment between table and slider : 180 mm,

Motor capacity : 61 kW,

Bolster plate thickness : 180 mm,

Window size : 750 x 400 mm,

Ram load : 2 ton

Voltage : 340 V,

Machine dimensions : 3600 x 3470 x 6190 mm,

Machine weight : 49.8 tons.

Technical manuals available

2 presses available

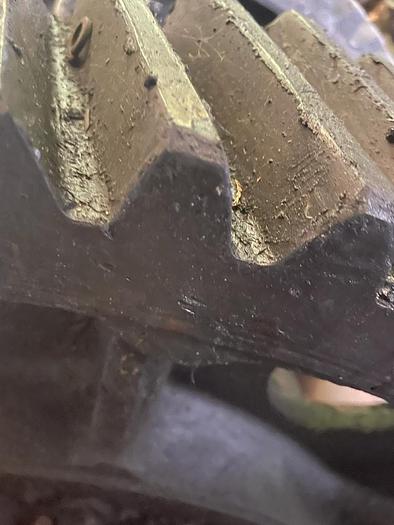

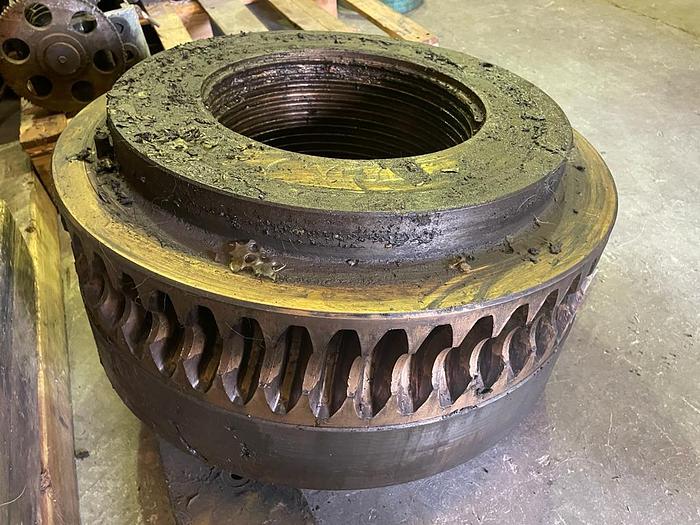

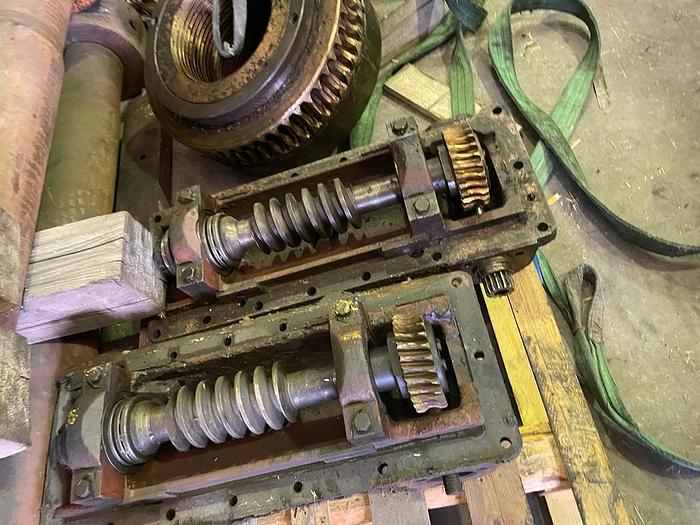

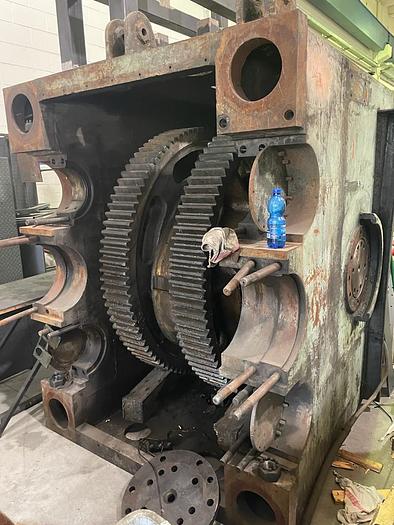

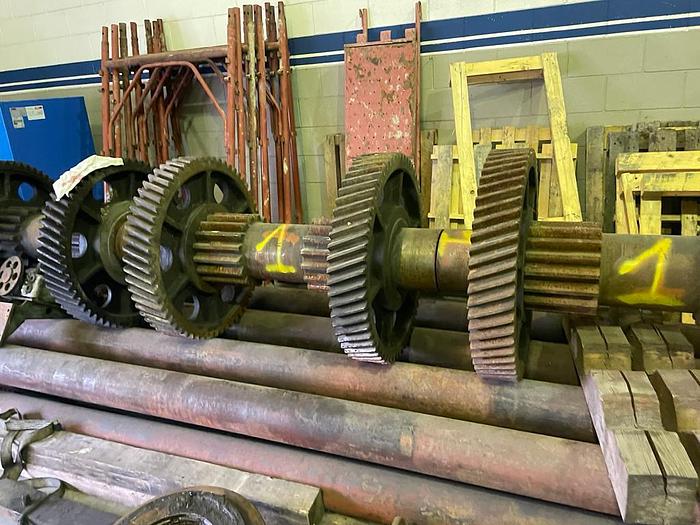

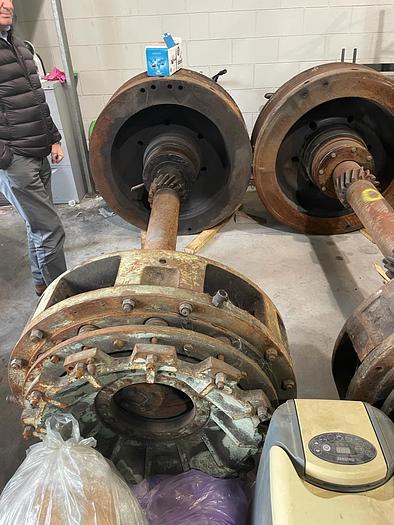

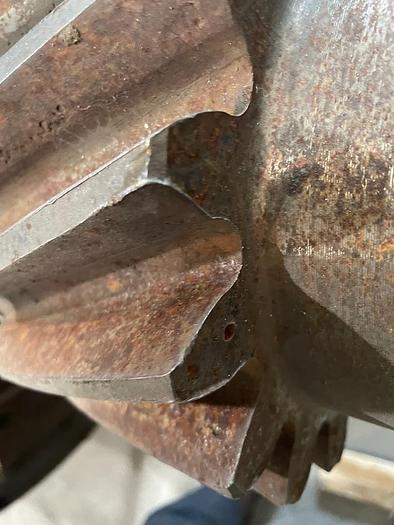

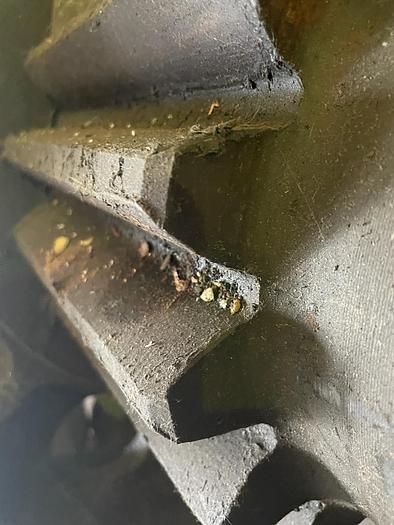

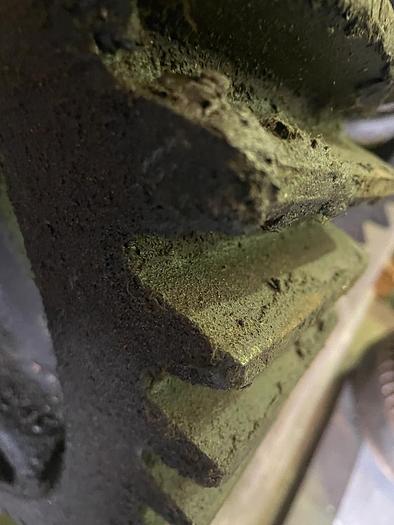

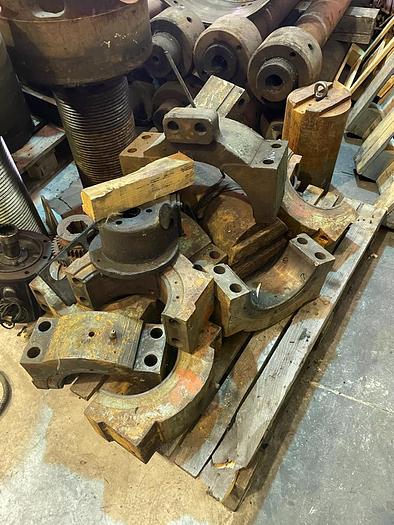

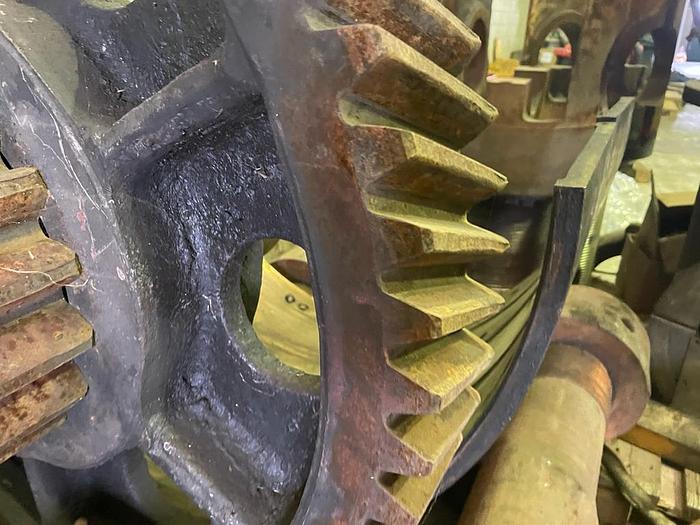

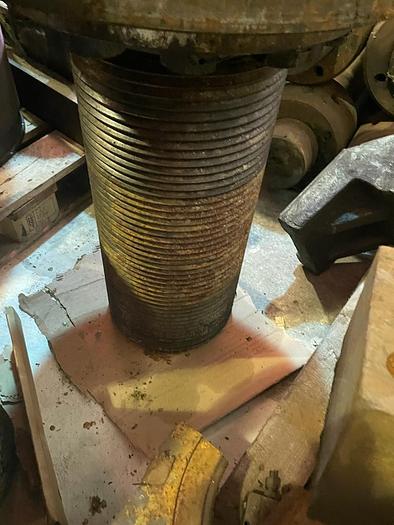

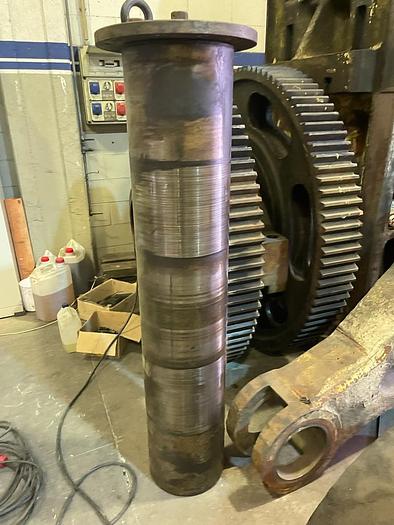

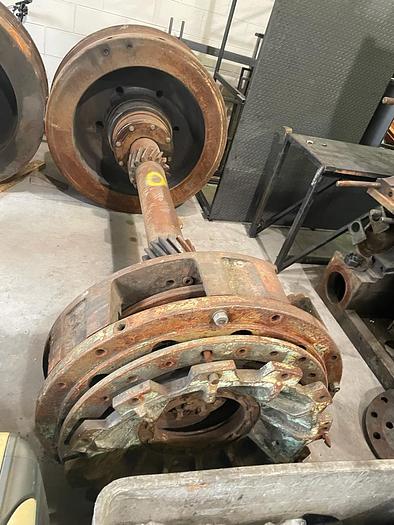

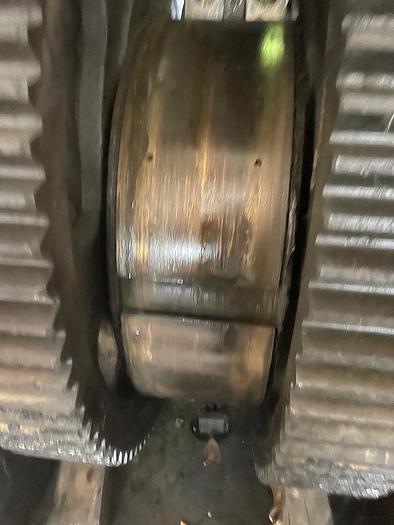

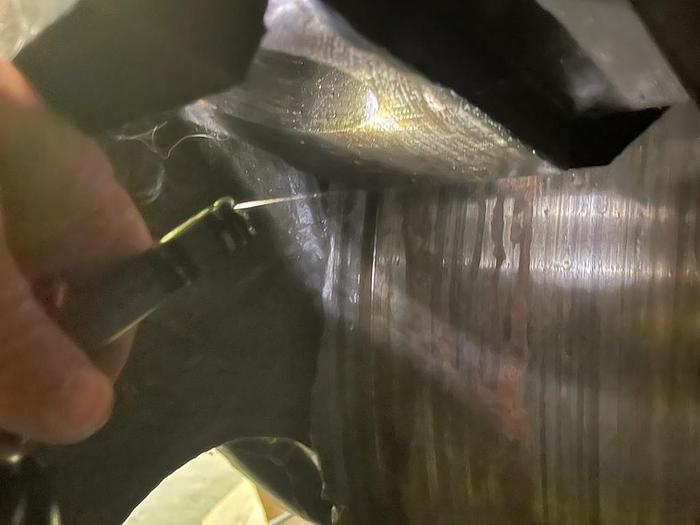

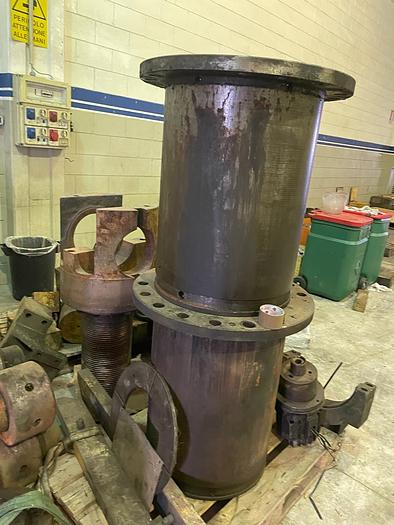

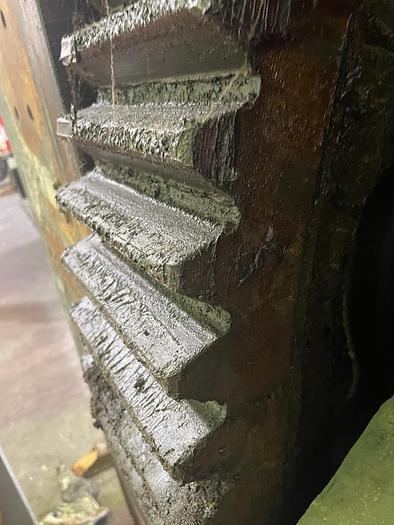

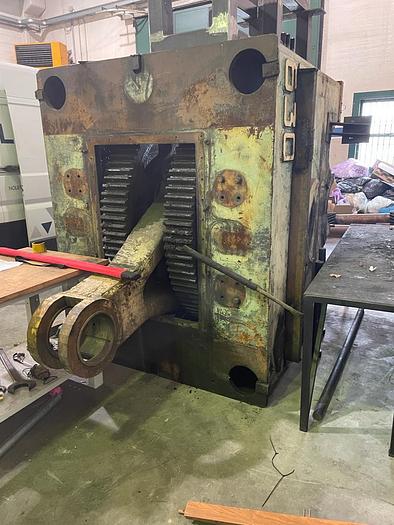

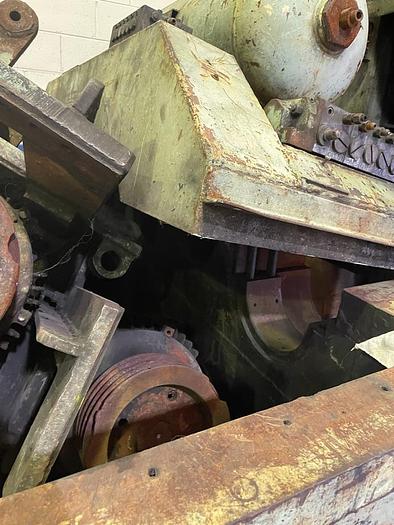

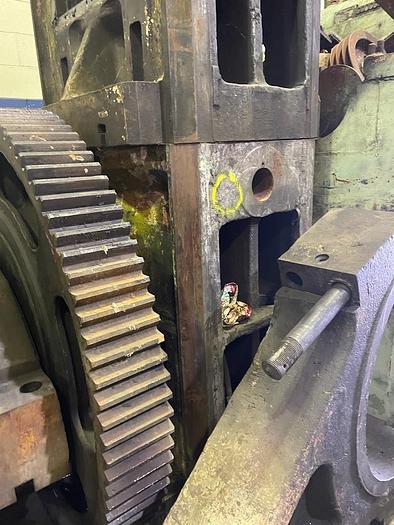

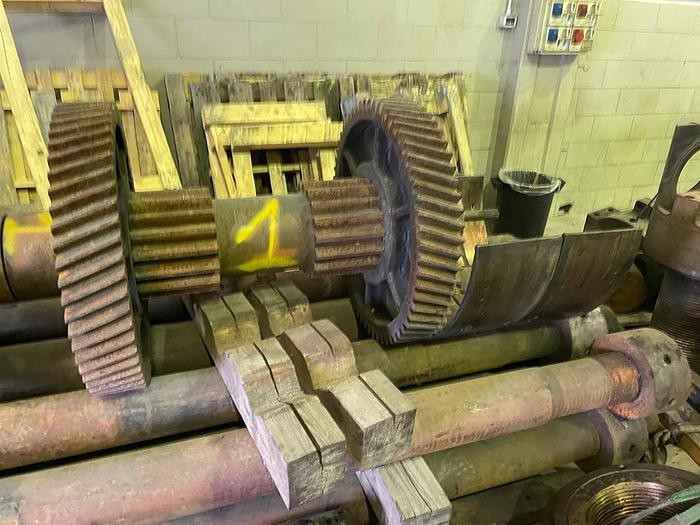

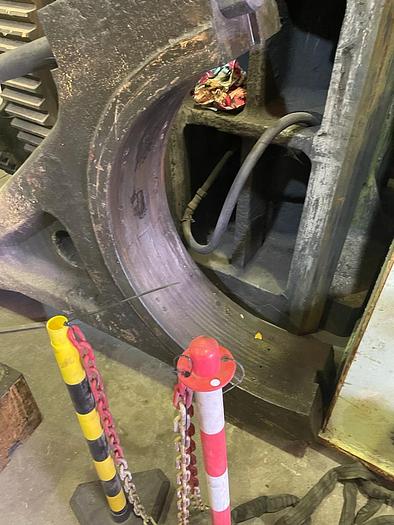

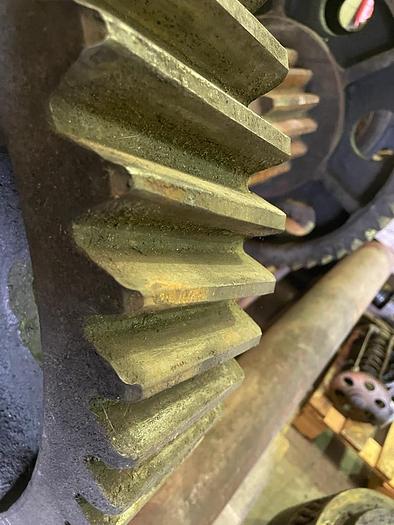

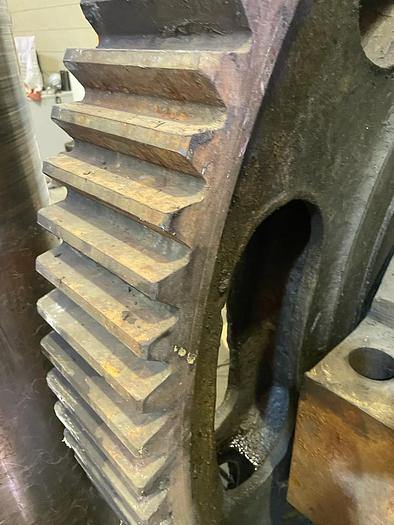

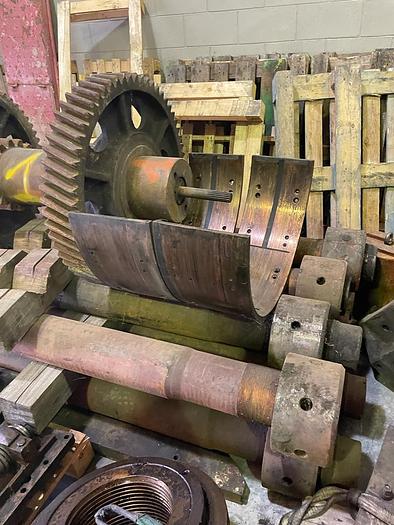

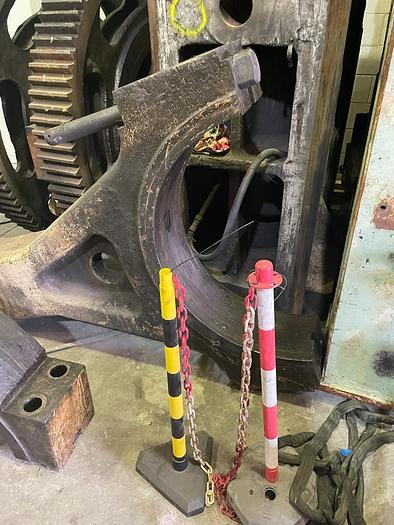

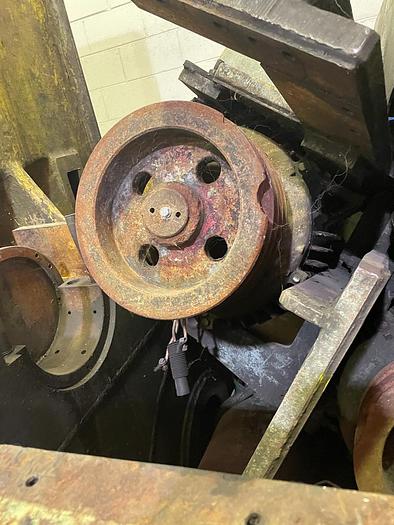

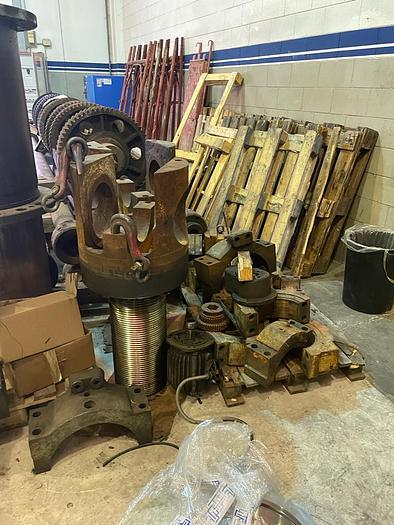

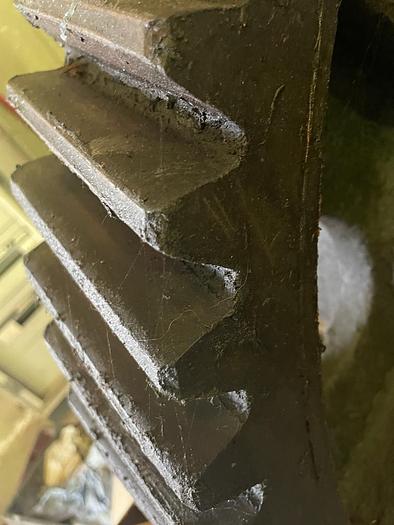

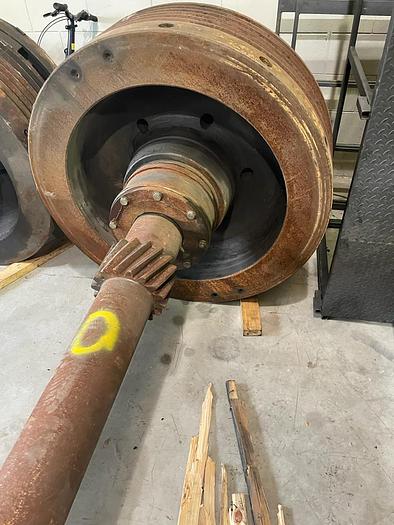

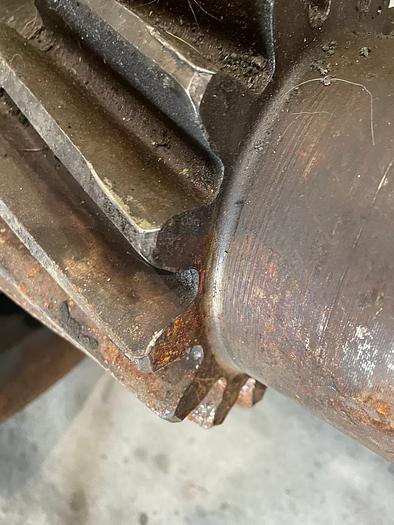

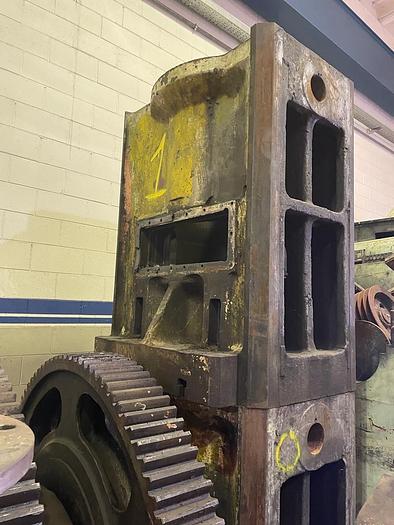

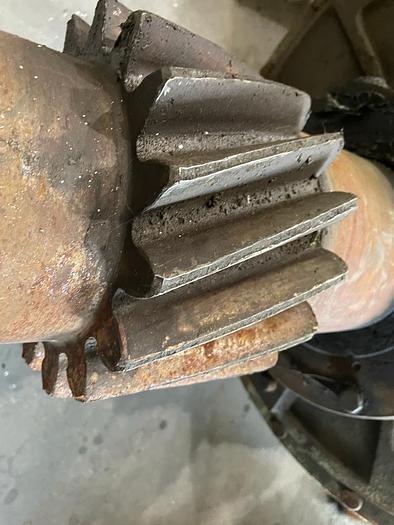

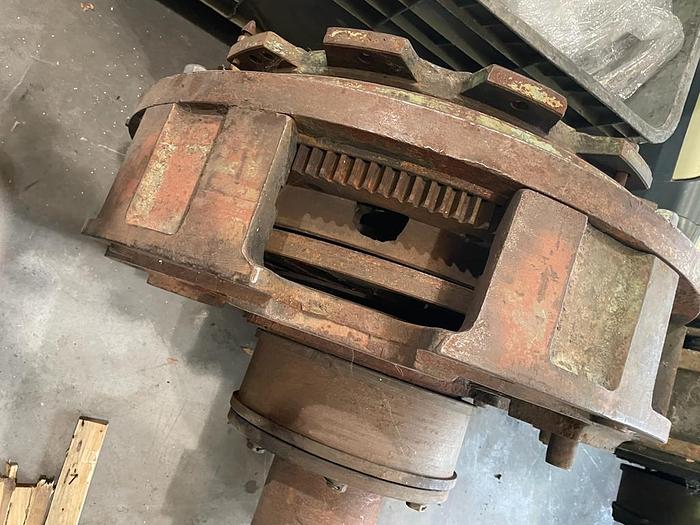

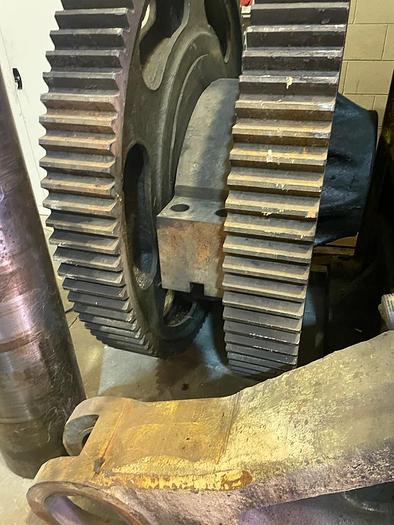

The mechanical part is in excellent condition. One press needs to redo the connecting rod bushings. The gears are very beautiful and must be just cleaned. All the mechanical pieces are present.The electrical systems and control panel are old and not usable.
