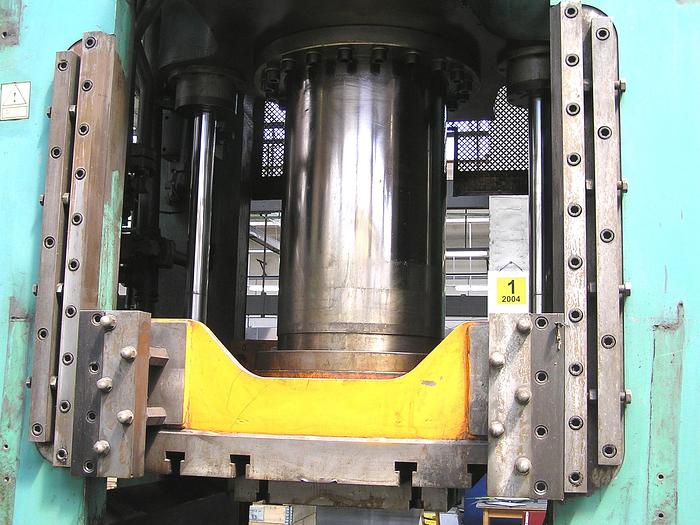

Press Forging Hydraulic PHBM 450
Specifications
Manufacturer | Abe Seiki,Japan |
Model | PHBM 450 |
Year | 1982 |
Condition | Used |
Stock Number | MA1309 |
Item condition | Good Condition |
Capacity tons | 450 |
Description
Maximum baling pressure: 450 tons
Maximum pulling force: 300 tons
Maximum support force: 370 tons
Number of lowering positions, infinitely adjustable: 2
Working pressure: 50/60/350 bar
Dimensions: 1700 x 2250 x 4500mm
Upper piston stroke: 620 mm
Lower piston stroke: 300 mm
Table size, bottom: 950 x 950 mm
Press plate size, top: 950 x 950 mm
Clamping device for the tool: T-slots - parallel according to DIN 650, 28 mm
Connecting thread / for tool /: M 150 x 3
Construction height between the upper press plate and the table: 1,550 mm

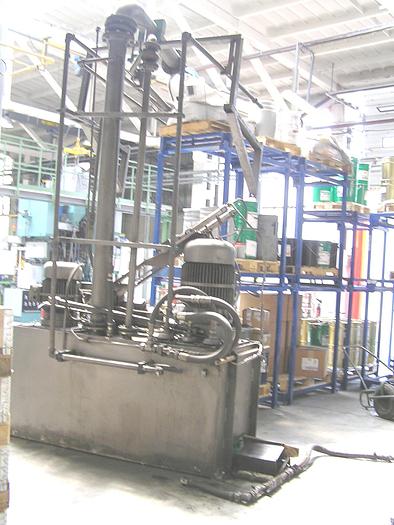

Transport medium: hydraulic oil
Electrical equipment of the machine: VDE 0113
Power consumption: 65 KW
Weight of the equipment with hydraulics: press: 20 tons, accessories: 5 tons
Theoretical number of strokes per minute: 12.
Designed especially for powder company press.
