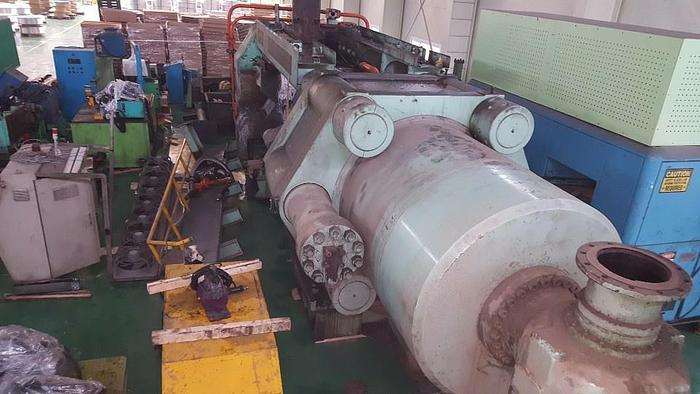

Press Extrusion Hydraulic Line Loewy

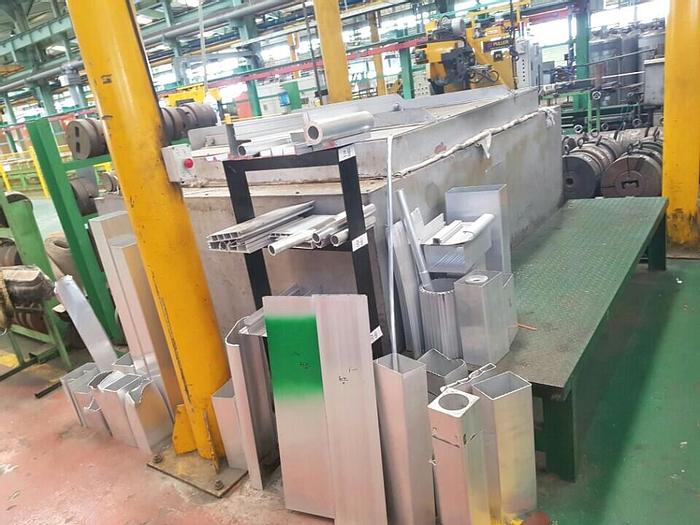

Aluminum extrusion press line

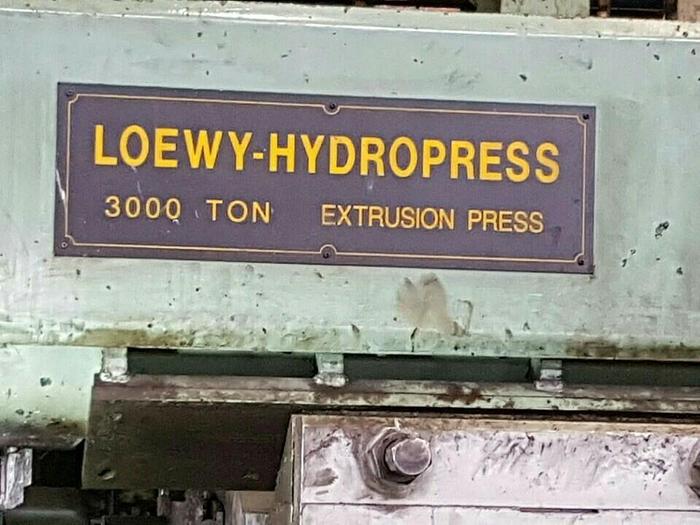

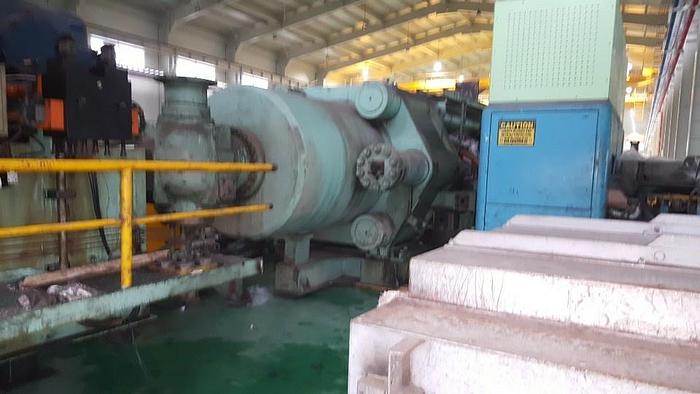

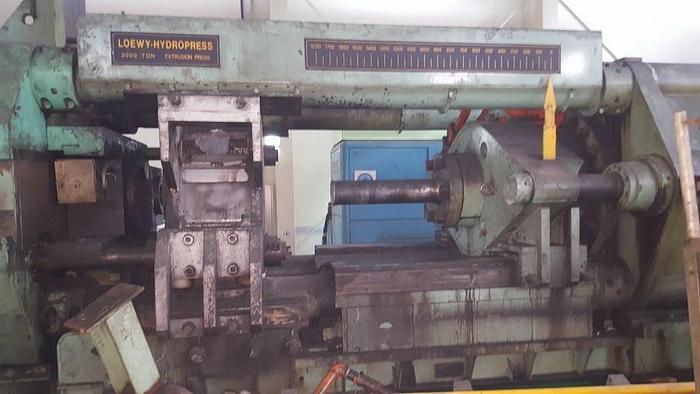

1. LOEWY HORIZENTAL EXTRUSION PRESS

Capacity : 3000 Tons

Billet Diameter : 229mm ., mandrel

Press Length : 12M

Press Width

Press Height : 5M

Run Out Table Length : 15M

Stretcher Type : Vertical

Cooling Table Length : 38M

Cooling Table Width : 3M

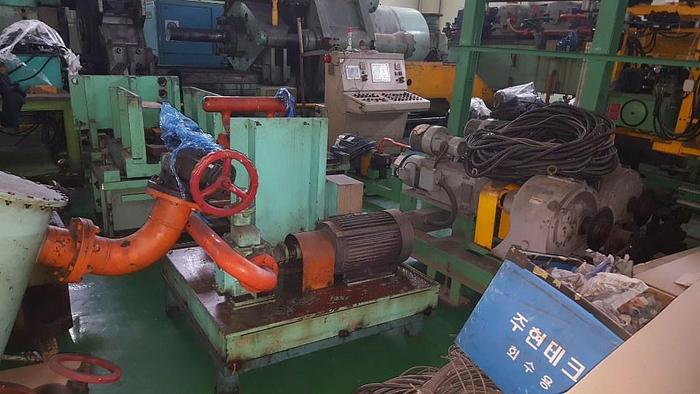

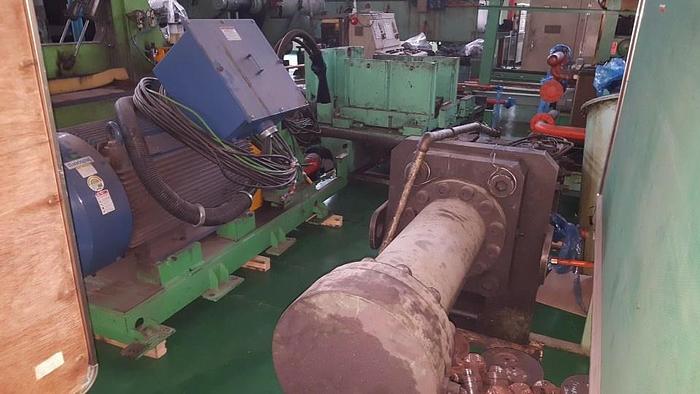

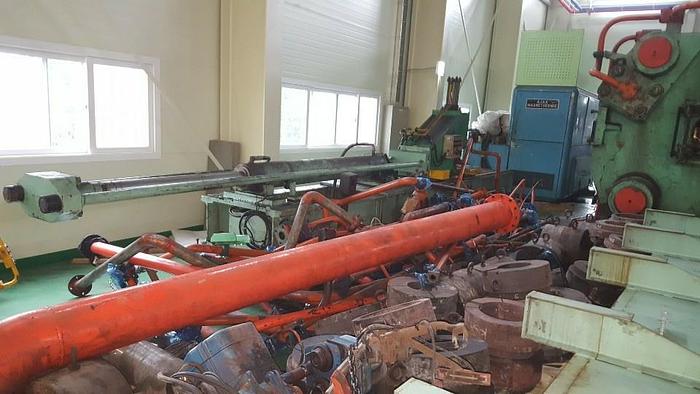

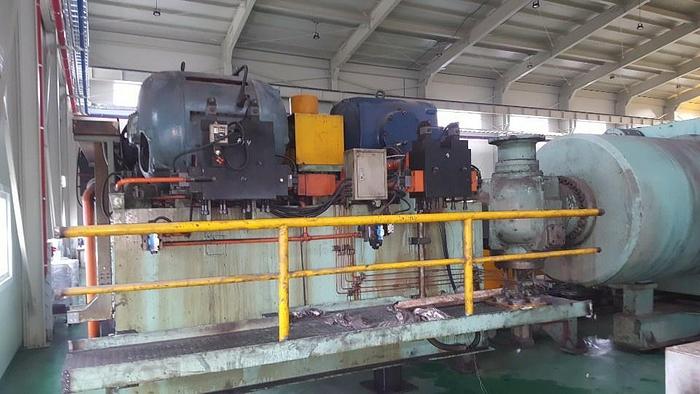

1) Hydraulic Cylinder

Main Ram: 1219 mm diameter x 1675 US tons,

Container Cylinder : 280 mm diameter x 140 x 450 US tons,

Die-Slide Cylinder : 140 mm diameter x 80 x 1900 US tons,

Side Cylinder : 310 mm diameter x 203 x 1675 US tons,

Shear Cylinder : 228 mm diameter x 165 x 1000 US tons,

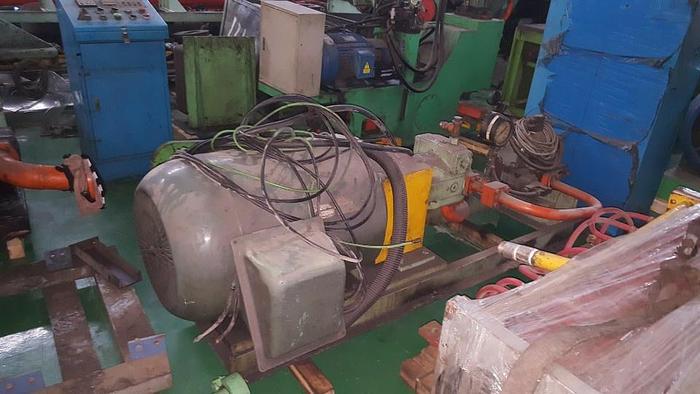

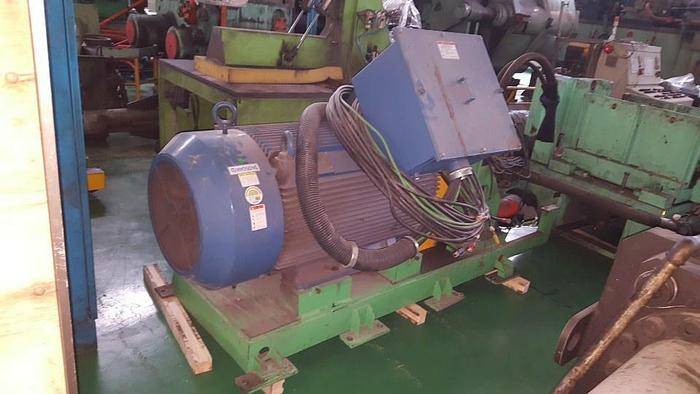

2) Hydraulic Cylinder Power

    Main Ram

    Area : 11,670㎠,

    Pressure : 240 kgf/㎠,

    Power : 2,800 ton,

Side Cylinder

Bore : 754.5㎠ x 2=1,509㎠,

Rod : 323.5㎠ x 2=647㎠,

Advance Area :1,509㎠ ,

Pressure : 240 kgf/㎠,

Power  : 362 ton ,

Return Area : 862㎠,

Pressure : 240 kgf/㎠,

Power  : 207 ton ,

Container Cylinder

Bore : 615.5㎠ x 2=1,231㎠

Rod : 154㎠ x 2=308㎠

Open Area :1,231㎠ ,

Pressure : 240 kgf/㎠,

Power  : 295 ton ,

Close Area : 923㎠,

Pressure : 240 kgf/㎠,

Power  : 221 ton ,

Sealing Area : 923㎠,

Pressure : 210 kgf/㎠,

Power  : 193 ton,

Shear Cylinder

Bore : 408㎠,

Rod : 214㎠,

Down Area : 408㎠,

Pressure : 240 kgf/㎠,

Power  : 98 ton,

Lifting Area : 194 ㎠,

Pressure : 240 kgf/㎠,

Power  : 46 ton,

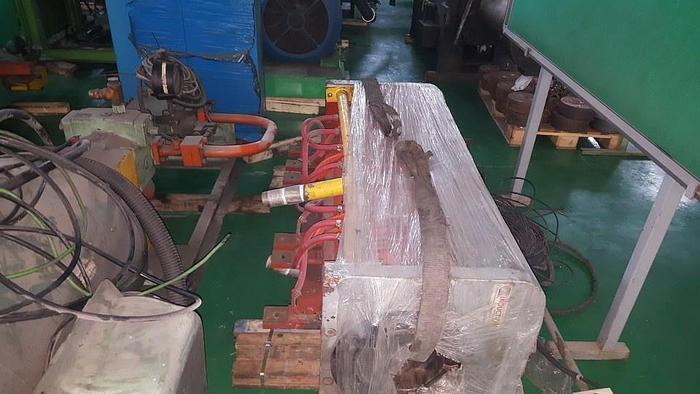

a. Induction Billet Heater

1) Type : INDUCTION - 3 Zones,

2) Size : 9" X 1500 mm,

3) Transformer section:

4) Main voltage : 4160 V

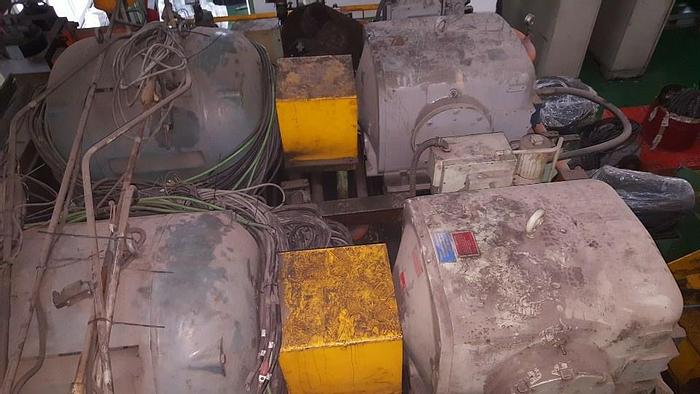

b. Puller

Main voltage: 440 V, 60 Hz Type: Double puller,

P1 motor: 19 kW DC, 25 HP P2 motor : 19 kW DC, 25 HP

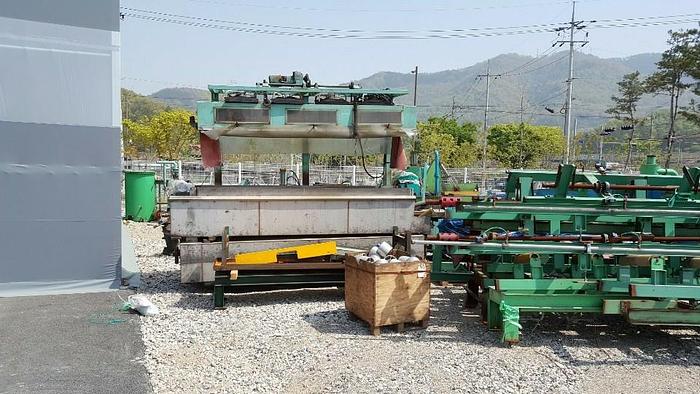

c. Water Quenching System

Type: Water quenching - deep quenching and spray quenching,

Size: 700 x 3000 mm Roller pitch: 550 mm Roller size: Ø110 x 420 mm,

d. Movable Hot Saw

Saw blade: Ø750 x 110~120 tooth,

Saw cutting size: 250 mm,

Saw drive motor: 5.5 kW (7.5 HP)

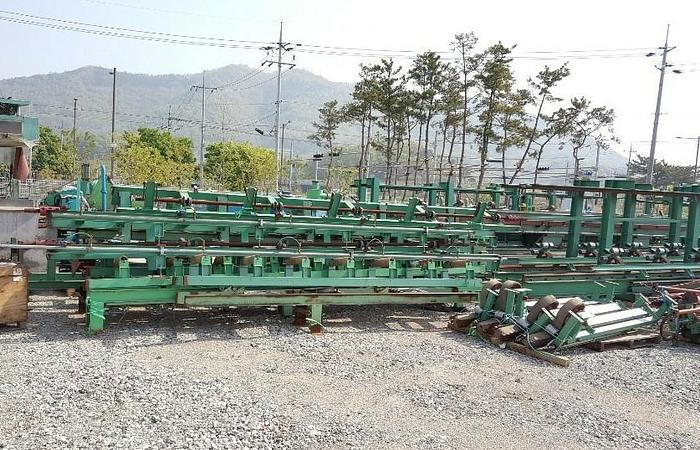

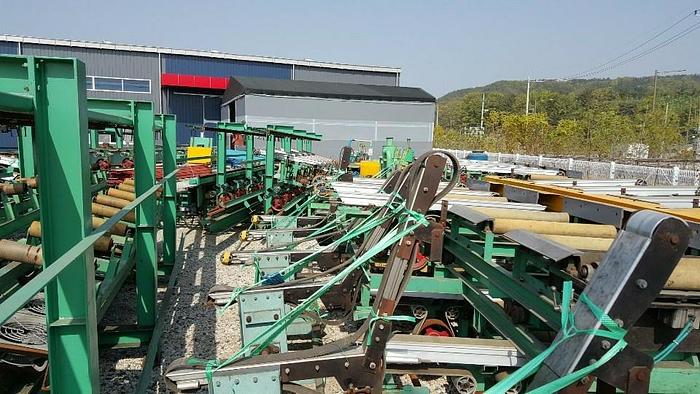

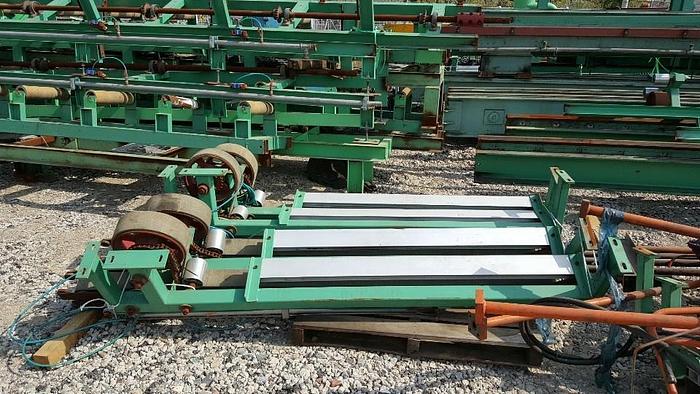

e. Run-Out Table

Type: free roller

Table size: 600 X 915 X 15000 mm,

Roller pitch: 500 mm,

Roller size: Ø110 x 450 mm,

f. Transfer Conveyor

Type: conveyor belt,

Table size: 1425 X 895 X 37200 mm,

Belt pitch: 1,200 mm Belt size: 100 x 10T,

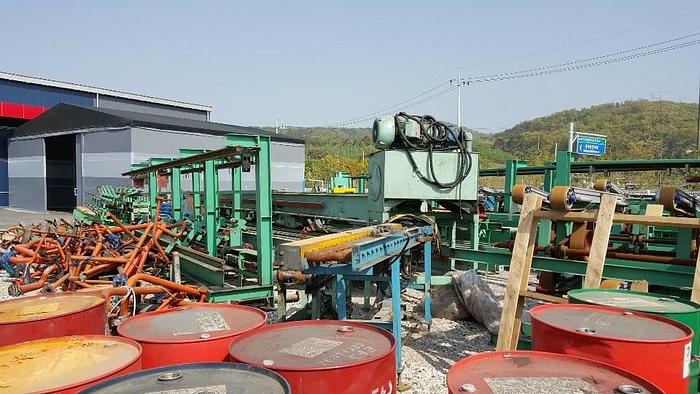

g. Cooling Table

Type: conveyor belt,

Table size: 2955 X 855 X 38,400 mm,

Belt pitch: 1,200 mm,

Belt size: 100 x 10T

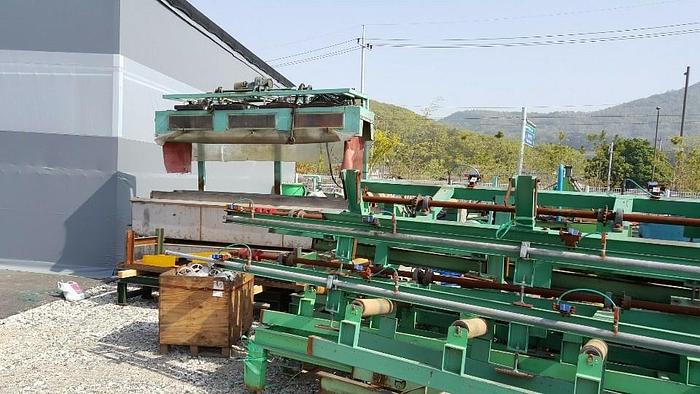

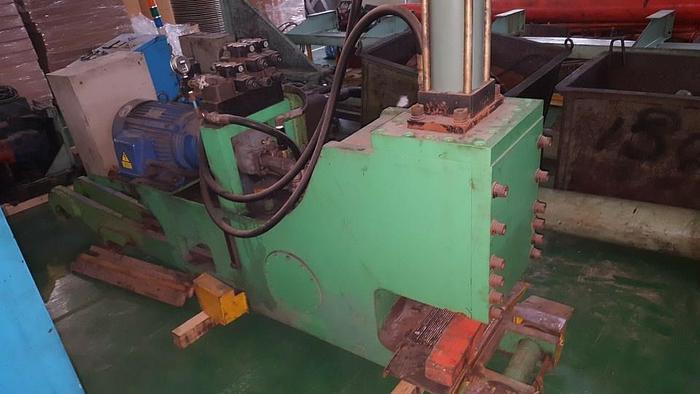

h. Stretcher

Type: Vertical type

Jaw dimension: 300 mm,

i. Storage Table

Type: Conveyor belt,

Table size: 2010 X 865 X 38,400 mm,

Belt pitch: 1,200 mm,

Belt size: 100 x 10T

j. Saw Charge Table

Type: chain drive type

Table size: 900 X 885 X 39,600 mm,

Roller pitch: 600 mm,

Roller size: Ø110 x 10T X 790 mm,

k. Final Cutting Saw

Saw blade: Ø650 x 80~100 tooth,

Saw cutting size: 650 mm,

Saw drive motor: 5.5 kW (7.5HP)

l. Inspection Table

Type: free roller, conveyor belt,

Size: 2,100 X 14300 mm,

Roller pitch: 300 mm Roller size: Ø110 x 800 mm,

Belt pitch: 1,300 mm,

Belt size: 75 x 10T,

m. Cooling Fan

Quantity: 101 EA,

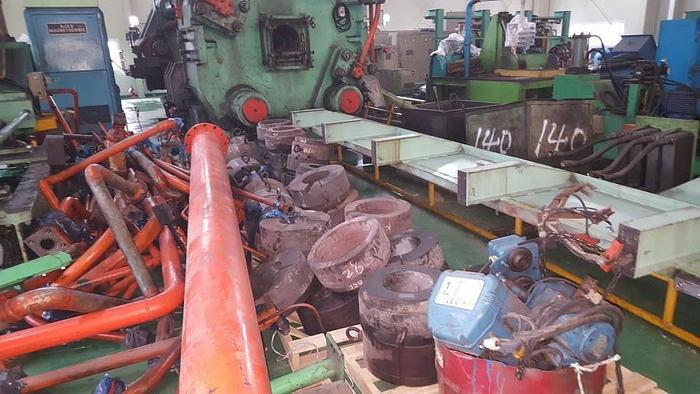

n. Spare Parts

Dummy: 2 EA Stem: 1 EA

Container: 1 EA.
