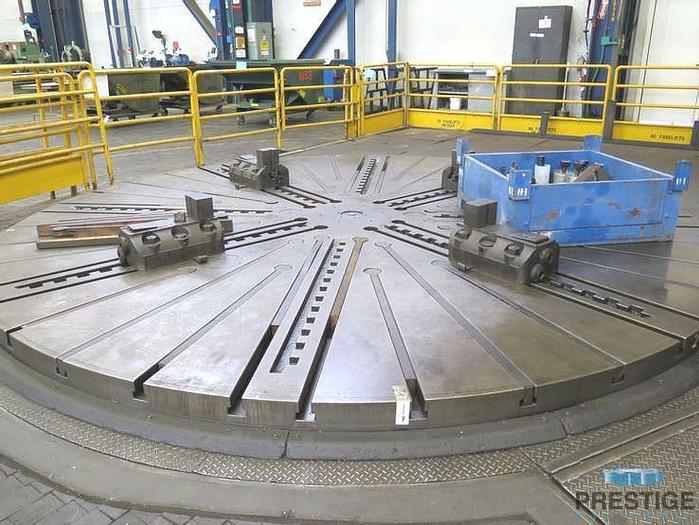

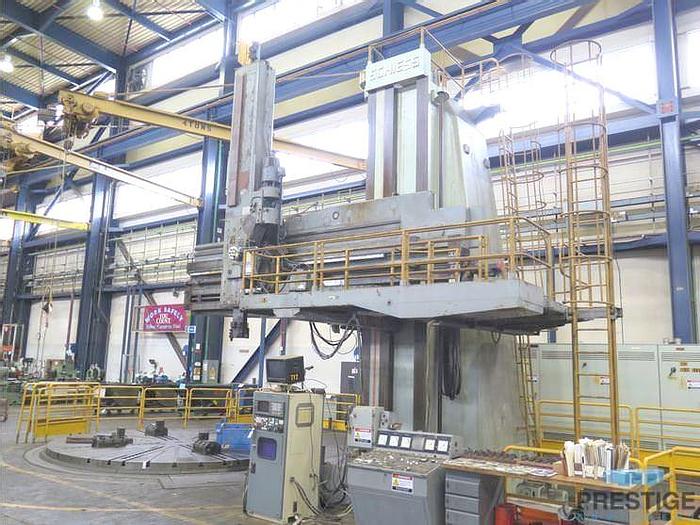

Lathe Vertical Turning CNC 3VKE 500/900

CNC openside vertical boring mill

Table diameter : 5000 mm,

Maximum swing : 9000 mm,

Maximum height under rail : 4500 mm,

Ram vertical travel : 2300 mm,

Column travel : 2235 mm,

Table:

Main motor : 120 hp,

Table speeds, standard : .25-40 rpm,

Table speeds, creep motion : .0015-.25 rpm,

Table speed ranges, standard & creep: 4 each,

Table turning feeds : 0.0032-.4727 ipr,

Table milling feeds : 0.0984-14.9 ipr,

Table weight capacity : 100 tons,

Foundation load with work-piece : 350,000 lbs,

Milling drive:

Milling spindle motor : 25 hp,

Milling spindle speeds : 10-500 rpm,

Milling speed ranges : 2-ranges,

Milling feeds : 0.0984-14.9 ipr,

Rapid traverse:

Column, standard : 157.48 ipm,

Column, creep : 0.1574 ipm,

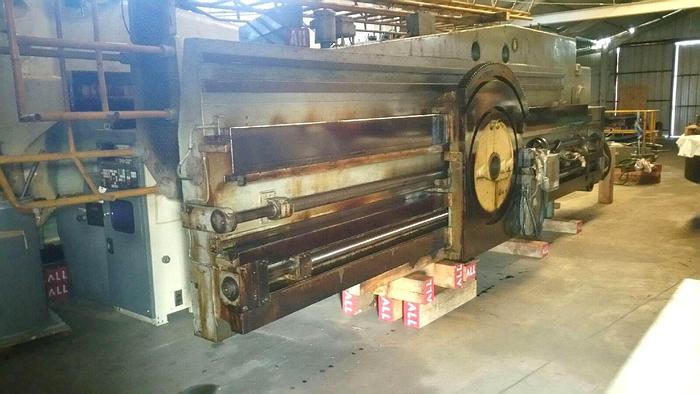

Cross rail, standard : 94.49 ipm,

Cross rail, fine : 2.401 ipm,

Cross rail, creep : 0.165 ipm,

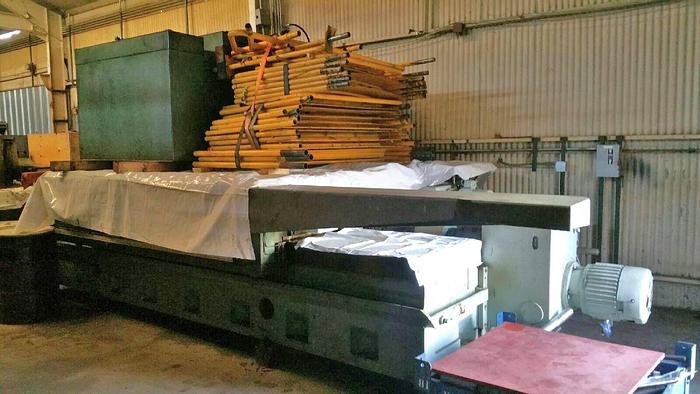

Floor space:

Approximate floor space (L x W) : 12040 x 7518 mm,

Approximate overall height : 8620 mm,

Equipped with:

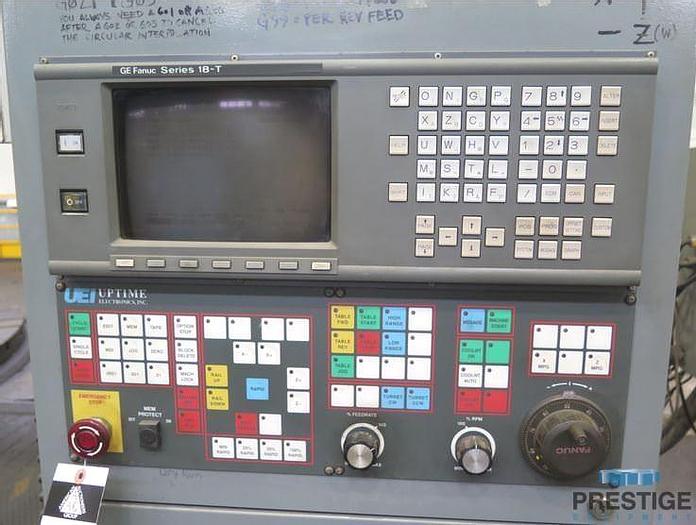

Fanuc 18-t cnc control, new 1998

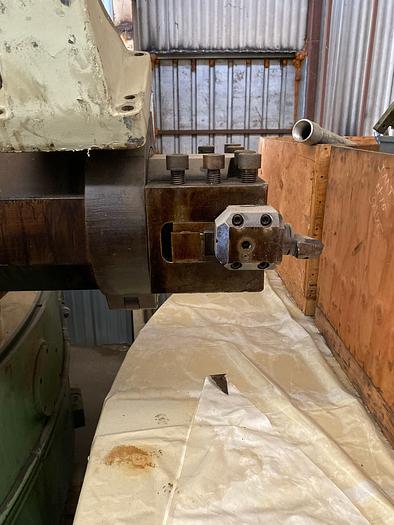

Swivelling ram w/live spindle

Heidenhain scales & rotary encoder

Threading & angular turning

25 hp spindle drive

120 hp table drive motor

440/3/60 electrics

Features:

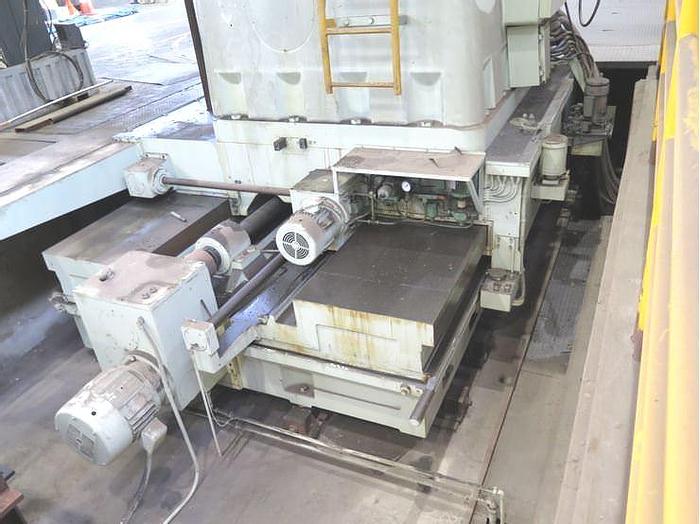

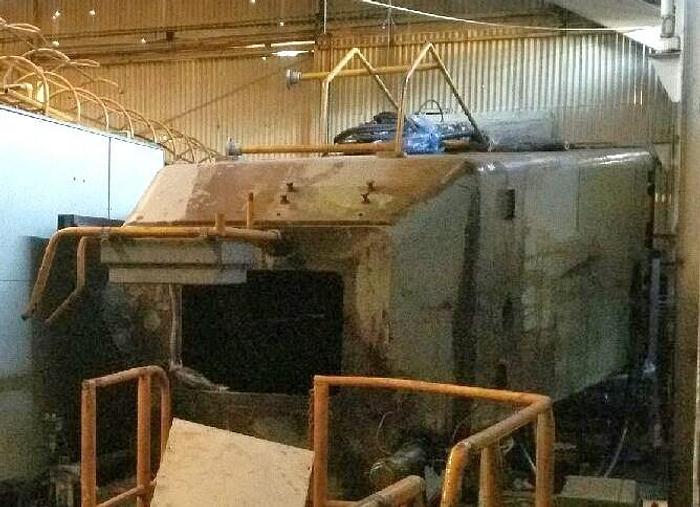

Openside design with sliding column

Ram with live spindle

Table indexing, heidenhain control for milling, drilling, & boring Operations

Technical manuals available.
