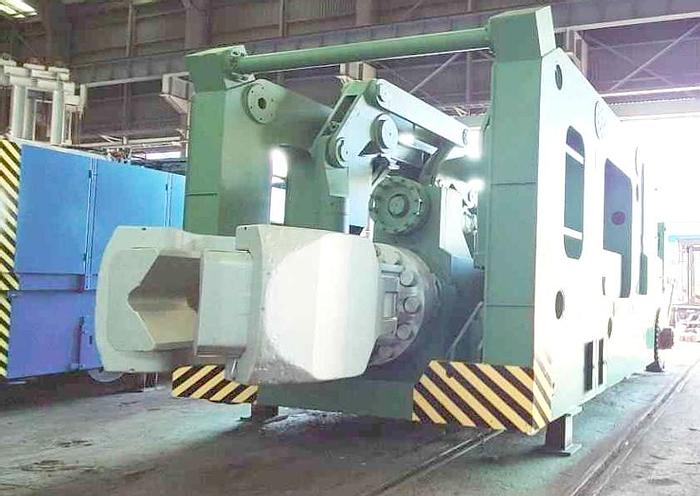

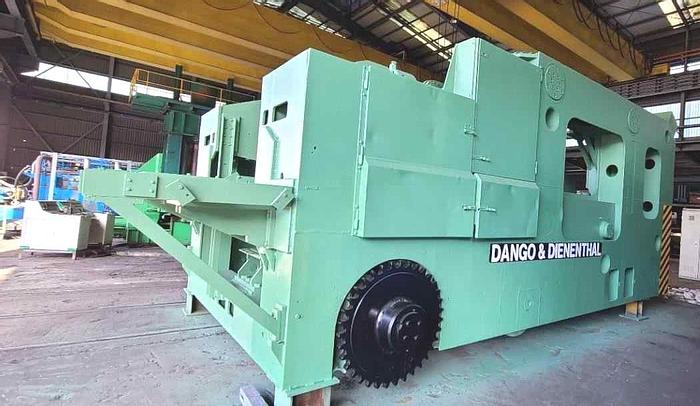

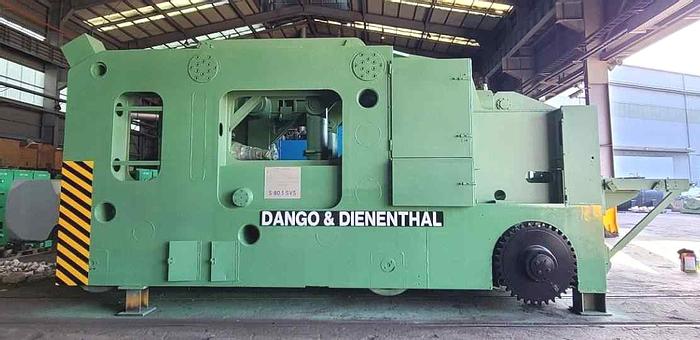

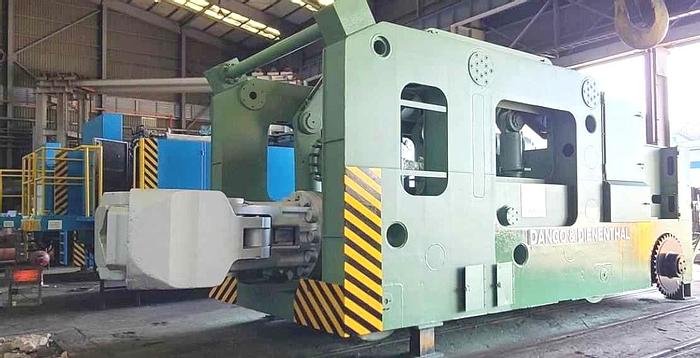

Manipulator Dango & Dienenthal

Rail Bound Manipulator(Dango)

Capacity : 25 tons,

Carrying capacity, nominal : 250 kN,

Tongs openings, without inserts, round : 400/1100 mm round,

- with inserts : 160-300 mm round

Max. turning circle of opening tongs : 1950 mm,

Min. tongs center height above rails : 1000 mm,

Max. tongs center height above rails : 1850 mm,

Vertical stroke of tongs parallel to floor : 850 mm,

Vertical tilting angle of tongs : 10° 6.5° down , up

Horizontal side shift of tongs : ± 200 mm,

Horizontal movements of tongs in forging direction

relative to carriage : ± 58 mm,

Center rail distance : 3200 mm,

Overall dimensions:

Width, approx. : 4278 mm,

Height, approx. : 3755 mm,

Length, approx. : 8961 mm,

Speed, times:

- forging : 0-30 m/min,

- traveling : 0-50 m/min,

- turning of tongs : 0-30 RPM,

- lifting and lowering of tongs, compl. Stroke : 170 mm/sec,

- tilting of tongs, compl. Stroke : 170 mm/sec,

- side shifting of tong, compl. Stroke : 170 mm/sec,

- clamping of tongs, compl. Stroke :170 mm/sec,

Accuracy:

- traveling : ±3 mm,

- Rotating : ±1°

Total electrical capacity installed, approx. : 273 kW,

Total delivery of the main pumps : 750 L/min

Total capacity of accumulator : 150 l

Usable capacity of accumulator: 50 l

Cooling capacity, with max. water inlet temp. 36℃,min. : 100 kW,

Travel distance unfixed m

Weight on rails approx. Mechanic + Hydraulic : 180 tons.

Including

Fully refurbishment,

New hydraulic system,

New electric system,

New rail track with chain,
