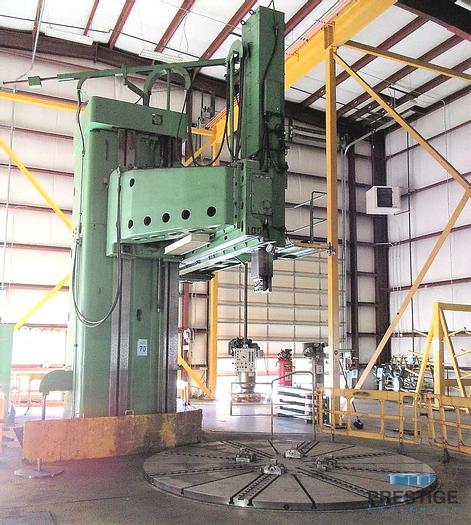

Lathe Vertical Turning CNC TMS1 40/70
Specifications
Manufacturer | Abe Seiki,Japan |
Model | TMS1 40/70 |
Year | 1992 |
Condition | Used |
Stock Number | MA1273 |
Item condition | Good Condition |
Capacity tons | 7000 |
Description
Table diameter : 4000 mm,
Maximum turning diameter : 7000 mm,
Maximum turing diameter to center: 5000 mm,
Maximum turning height : 3504 mm,
Maximum height, table to toolholder : 3575 mm,
Horizontal travel of rail head : 2550 mm,
Vertical travel of cross rail : 2200 mm,
Ram stroke : 1800 mm,
Ram swivel : +/- 30 degrees,
Table speed (16 speeds) : .23 - 30 rpm,
Table weight capacity : 176,000 lbs,
Table motor : 80 hp,
Machine footprint (w x d) : 6096 x 10516 mm,
Machine height : 8534 mm,
Machine weight : 177,000 lbs.
Equipped with:

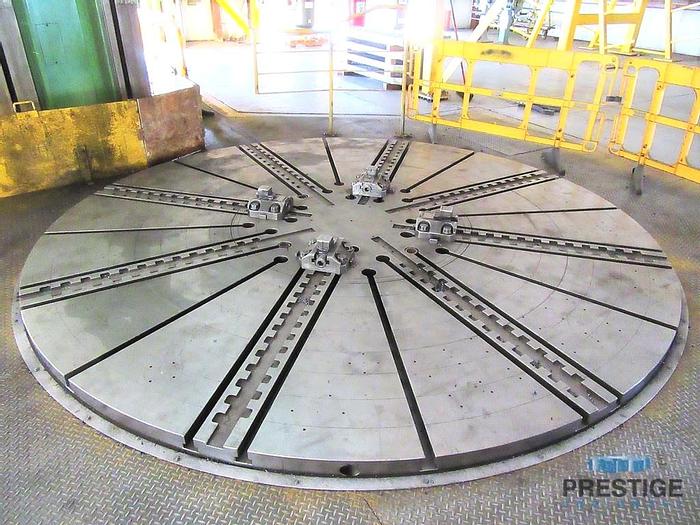

4000 mm t-slotted table with (4) face plate type jaws,

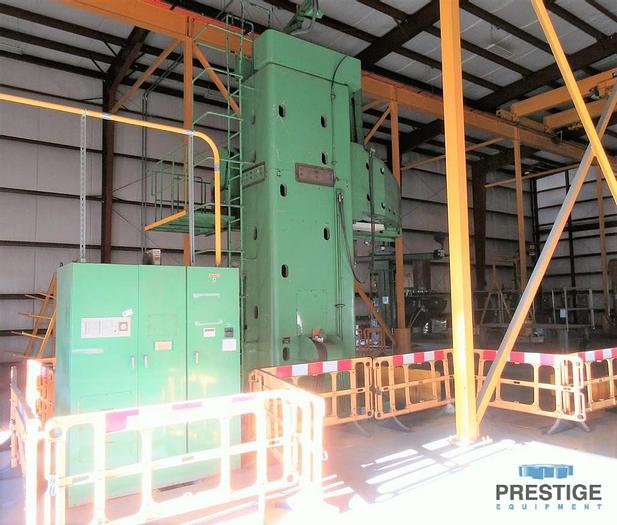

Openside design w/ infeeding column,
Vertical ram with tool block holder,
Inch/metric threading,
Independent operator platform and lift,
Newall dp700 digital readouts,
80 hp table drive.
