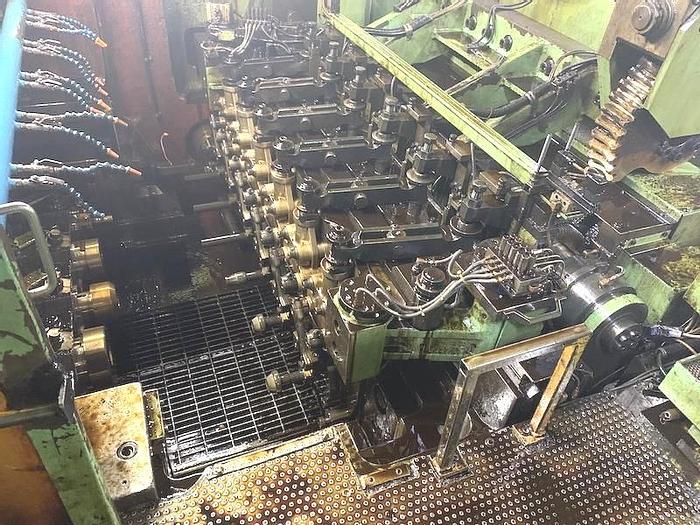

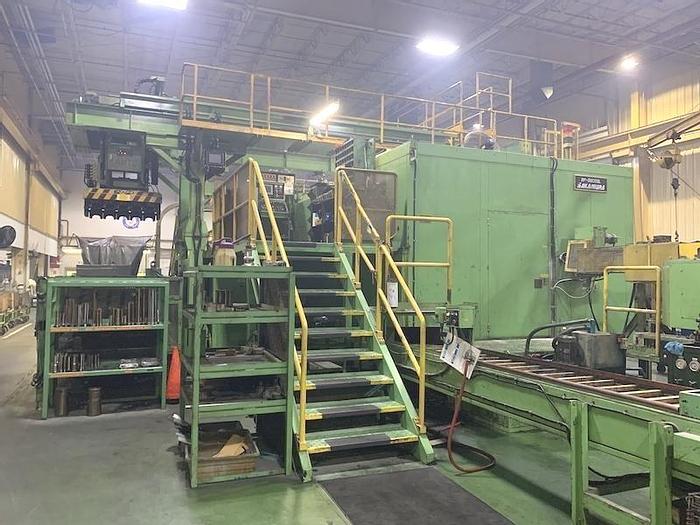

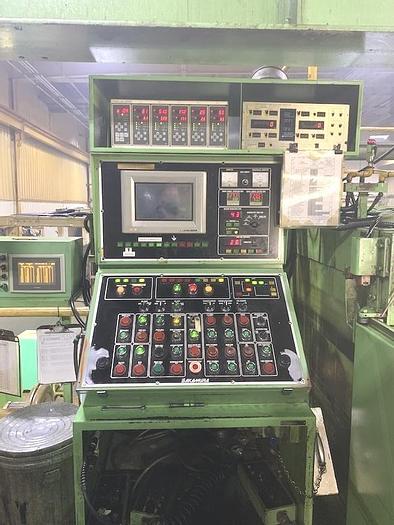

Part Former Hot BP-590SSL

Parts Formers, 5 Die

Capacity : 550 tons,

Forging Stations: Five (does not include cutting/pressure processes),

Open Upset Diameter: 80 mm (tensile strength=less than 65 kg/mm2),

Bolt Shank: 50 - 345 mm (390 mm when using material with black skin),

Transfer Length: 450 mm,

PFA (blank length): 20 -85 mm,

Forging Pressure: 1,000,000 kgf (#3,#4 each 650,000 kgf),

Maximum Cutoff: 50 mm (tensile strength =less than 50kg/mm2),

Cutoff Length: 50 - 450 mm,

Knife Dimensions: 140 mm x 5 mmL,

Quill Dimensions: 135 mm x 160 mmL,

Punch Dimensions: 160 mm x 365 mmL (with carburized bushing) (pin lock type),

Die Dimensions: 230 mm x 550 mmL (pin lock type),

Die Inner Diameter: 252 mm,

PKO Amount: 140 mm,

KO Amount: 480 mm* (spacer: if 50 mmL, 150-480 mm ; if 150 mmL, 50-380 mm

Production Rate: 40 Pcs. / minute (fixed by pulley)

Main Motor Capacity: 250 Kw (6p,480v, totally enclosed fan)

Ram Stroke: 600 mm,

Machine Weight: 240,000 Kg,

Electric (main motor): 350 KVA<480V>,

Air Capacity: 6.0L/jog,

Air Pressure: over 4.5KG/cm2,

Lubricant Capacity: 800 L,

Coolant Capacity: 900 L,

EQUIPPED WITH: see below: Sakamura Model MWR-120 Wire Straightener with Coil Drum

Equipment Weight: 10,000 Kg,

Compatible Wire Diameter: 30 -50 mm,

Coil Inner Diameter: 970 - 1200 mm,

Coil Outer Diameter: 1500 mm (max.)

Loading Weight: 3000 Kg,

Main Drum Length: 2300 mm,

Feed Speed: 6m/min,

Main Motor Capacity: 1.5Kw (4p),

Straightener Roll Adjustment: Hydraulic and Thread Adjustment,

Wire Cutting Method: Hydraulic Cutter( with pole),

Material Stopper: Vertical and Horizontal Stoppers (items to check : horizontal stopper strength/weight),

Pinch Roll Fixing Method: Presently needs countermeasures ( fixer bolt comes loose)
