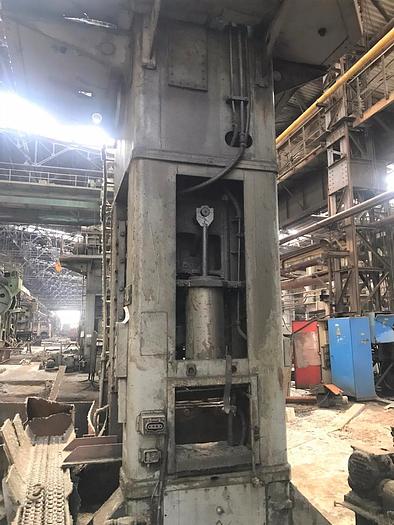

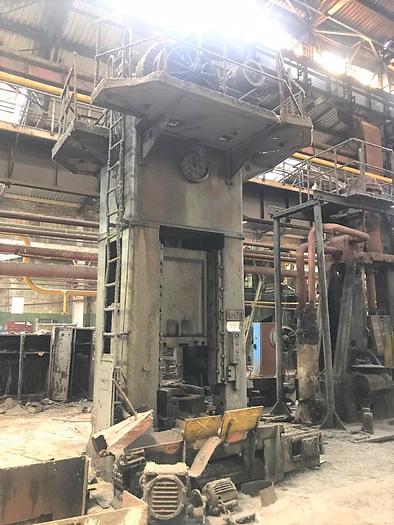

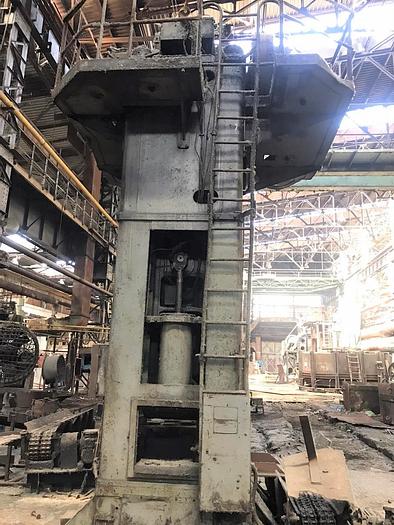

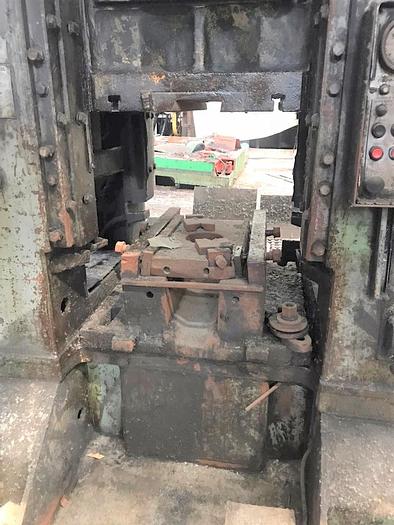

Press Trimming KA9536

Capacity : 400 tons,

Stroke : 400 mm,

Stroke per min. continuous : 25,

Shut height : 630 mm,

Distance adjustment between

ram (bottom position)and bed : 160 mm,

Ram : 800 x 800 mm,

Bed : 1000 x 1000 mm,

Window in bed : 630 x 630 mm,

Thickness stamping plate : 160 mm,

Air pressure : 5-7 MPa,

All motors power : 40 kW,

Voltage : 380 V, 50 Hz,

Dimension of press : 3410 x 3140 mm,

Height above floor level : 5940 mm,

Mass approx. : 37 tons.
