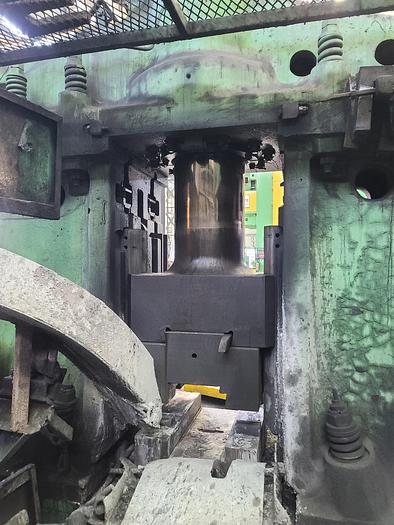

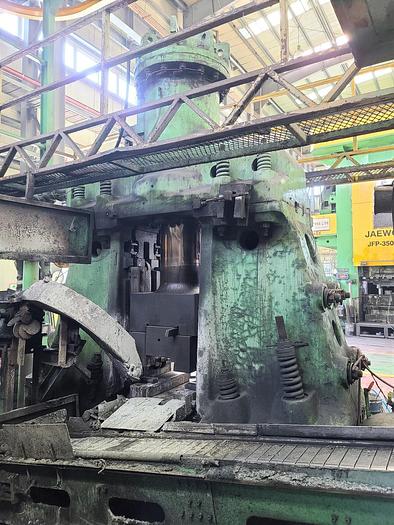

Hammer Forging Pneumatic MPM6300B

Capacity : 2.5 tons,

Energy of blow : 70 kJ,

Weight of falling part : 2496 kg,

Max weight of upper die : 800 kgs,

Anvil block weight w/o die holder : 47.5 tons,

Weight of hammer with anvil block : 72.5 tons,

Approximate forging weight : 1.5-7 kg,

Steam of incoming air pressure : 0.5-0.7 MPa,

Average Steam consumption : 970 kg/h,

Average cold air consumption : 24 m3/min,

Average hot air consumption : 18 m3/min,

Number of blows per minute : 100 1/min,

Overall dimension :

Length of hammer : 3100 mm,

Width of hammer : 1730 mm,

Total height of hammer : 5145 mm,

Height of hammer above floor : 4100 mm,

Min height of die partition above : 780 mm,

Min height of the die (without tail) : 300 mm,

Guideway spacing : 636 mm,

Length of die seat : 650 mm,

Length of the seat in the die holder : 900 mm,

Max width of working area : 650 mm,

Max tup stroke : 850 mm,

Spare Ram in included.
