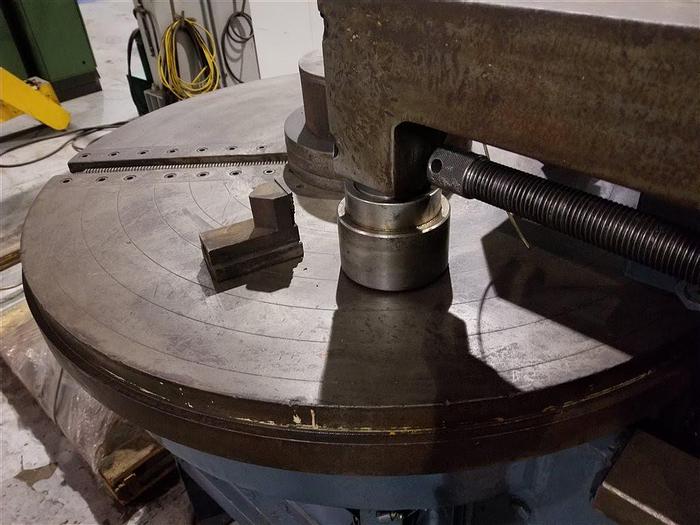

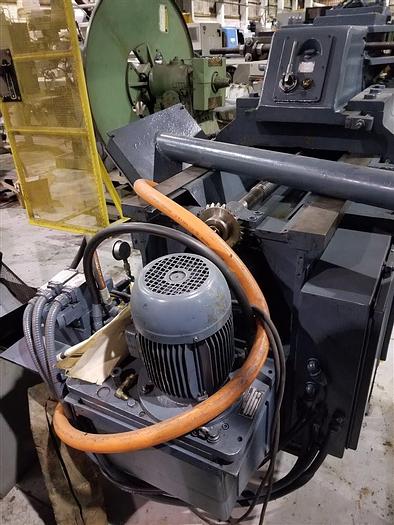

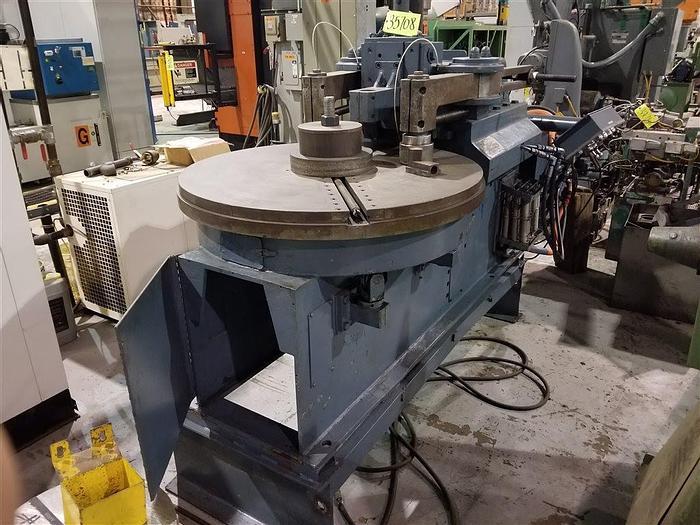

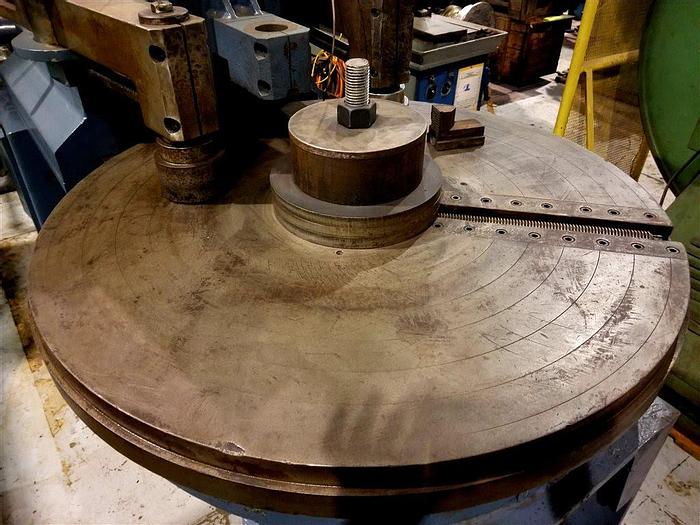

Ring Rolling Machine B-100H

Minimum I.D. : 203.20 mm,

O.D. Range : 431.80 mm, 660.40 mm & 1016 mm,

Maximum O.D. with 3-Roller Bending : No Limit,

Face Plate Rotations : 2/3/5 RPM,

Capacities - :

Flat on Flat :

44.45mm x 12.70mm to 203.20mm Min. Dia.,

60.33mm x 15.88mm to 508.00mm Min.Dia.,

69.85mm x 19.05mm to 1016.00mm Min. Dia.,

82.55mm x 19.05mm to 1524.00mm Min. Dia.,

Angles Leg Out :

88.90 mm x 88.90 mm x 7.94 mm to 1524.00mm Min. Dia.,

Angles Leg In :

76.20 mm x 76.20 mm x 7.94 mm to 1524.00 mm Min. Dia.,

Bar : 53.98 mm to 1016.00 mm Min. Dia.,

Flats on Edge : 22.23 mm x 101.60 mm to 1016.00 mm Min. Dia.,

Channels In : 88.90 mm to 1016.00 mm Min. Dia.,

Channels Out : 88.90 mm to 1016.00 mm Min. Dia.,

Tees/In : 76.20 mm to 1016.00 mm Min. Dia.,

Tees/Out : 88.90 mm to 40 Min. Dia.,

Approximate Weight : 4535 Kg.
