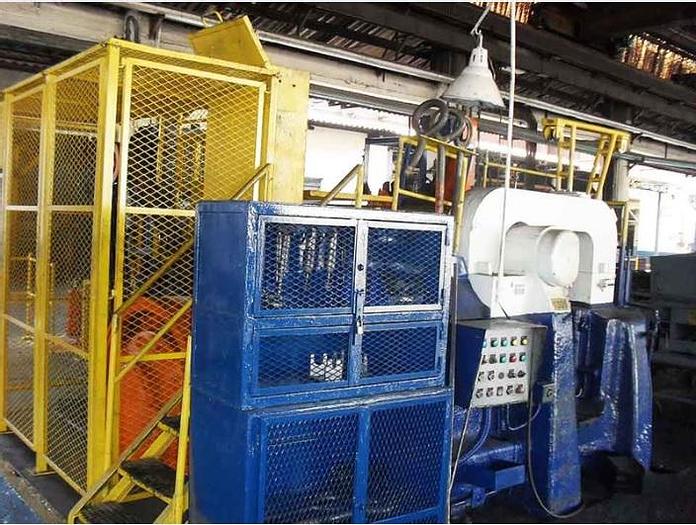

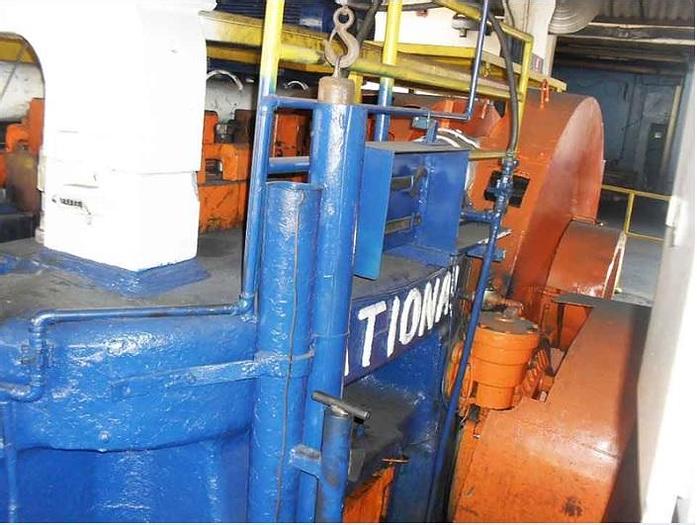

Upsetter National 5FM

5 "

Capacity : 1000 tons,

Dia : 127 mm,

Grip Open : 178 mm,

Stroke : 381 mm,

SPM : 30,

Grip Tons : 499 tonnes

Gather : 206 mm,

Hold : 57 mm,

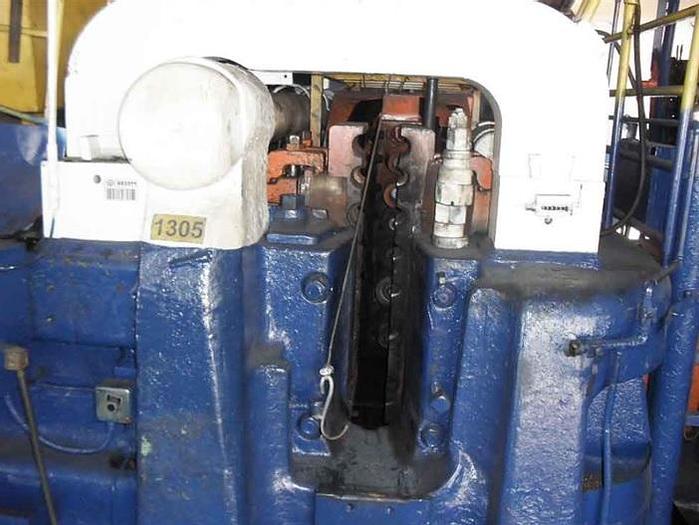

Die space length : 610 mm,

Die space height : 737 mm,

Thickness of each die : 206 mm,

Main motor power : 37 kW,

Machine length : 5207 mm,

Machine width : 3556 mm,

Distance face of wedge to face plate heading slide forward : 1295 mm,

Crank pin diameter of main shaft : 432 mm,

Net weight : 81.6 tons.

Equipped with the following:

• Heat-treated high-tensile alloy steel bedframe with heavy horizontal & vertical bedframe ribs

• Long over-arm heading slide allows the cross tie section to be massive and located directly under the front bearing section of the heading slide adding bedframe rigidity in the vital die box area

• Solid stepped design pitman provides a large bearing area on the forward stroke, materially reducing bending and shear stresses as well as bearing loads on the wrist pin and pitman

• Chrome-nickel-moly forged crankshaft

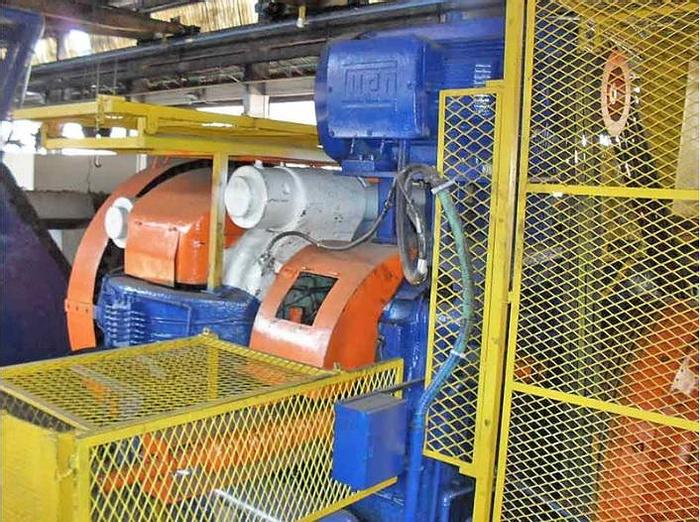

• Air clutch & Brake

• 60 Hz Electrics

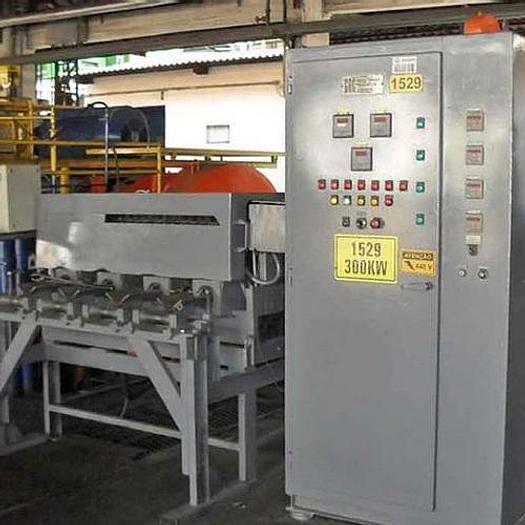

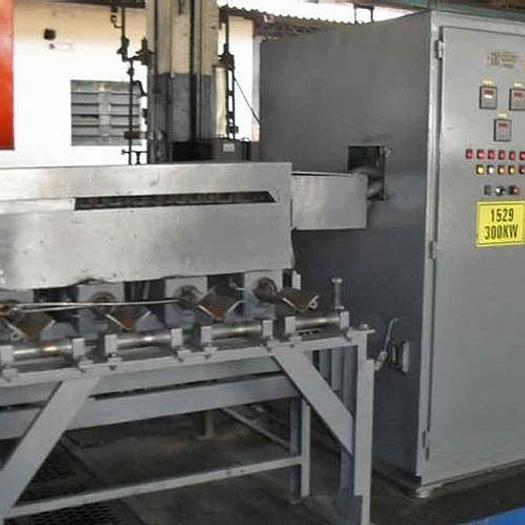

• 320kW Pillar Induction Heater.
