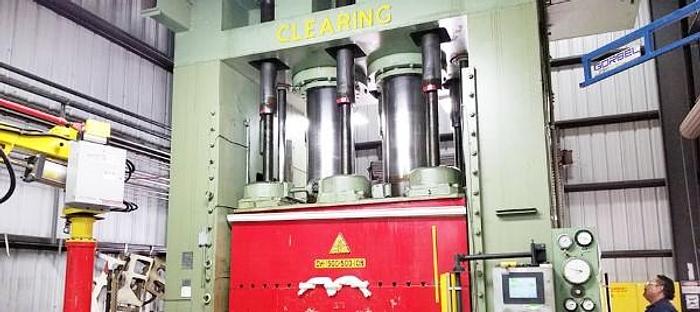

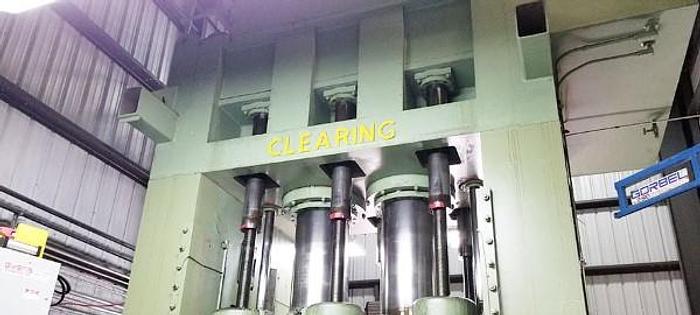

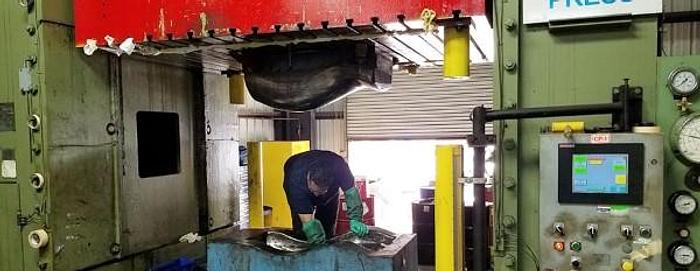

Press Sheet Stamping Hydraulic Triple Action DH-1500-500-108

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelDH-1500-500-108
ConditionUsed
Stock NumberMA1197
Item conditionGood Condition
Capacity tons2000

Description

Capacity : 2000 tons,

Maximum Combined Capacity : 2000 tons,

Maximum Capacity Of Punch Slide : 1500 tons,

Maximum Capacity Of BH Slide : 500 tons,

Gross Return Capacity : 117 tons,

Capacity Of Bed Cushion : 650 tons,

Double Action : Approach Speed : 12500 mm / Min,

Pressing Speed : 825 mm / Min,

Return Speed : 10500 mm / Min,

Null Single Action : Pressing Speed : 625 mm / Min,

Stroke : 600 mm,

Ejection Capacity : 100 tons,

Return Speed : 10000 / Min,

Stroke Of Punch Slide : 1500 mm,

Stroke OF BH Slide : 750 mm,

Stroke Of Die Cushion : 600 mm,

Shut Height Of Punch Slide : 875 mm,

Shut Height Of BH Slide : 375 mm,

Gallons Quantity Of Oil : 3200

Press Height Including Pit : 10725 mm,

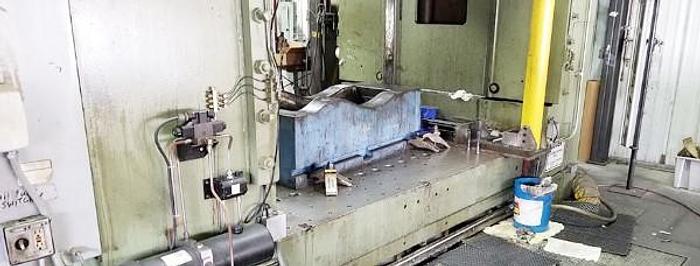

Bolster Plate : 2700 X 1775 X 300 mm,

Bed : 1775 X 2700 mm,

Open Height : 1875 mm.


Equipped With :

Pump Capacity (Two) 71.4 G.P.M. @3,000 PSI,

Main Motors (TWO) 100 H.P. (T.E.F.C.)- 900 RPM,

Die Cushion And Upgraded PLC Control.
