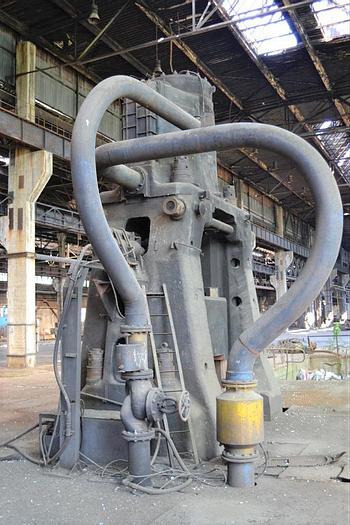

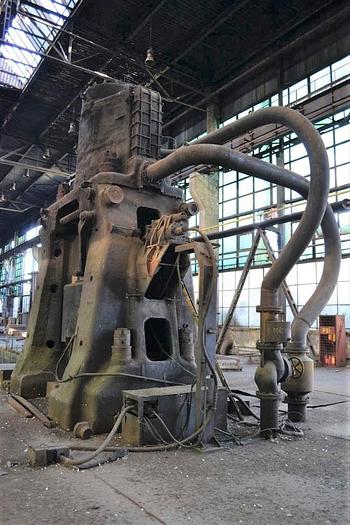

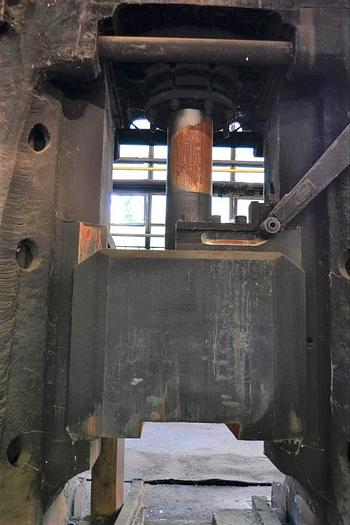

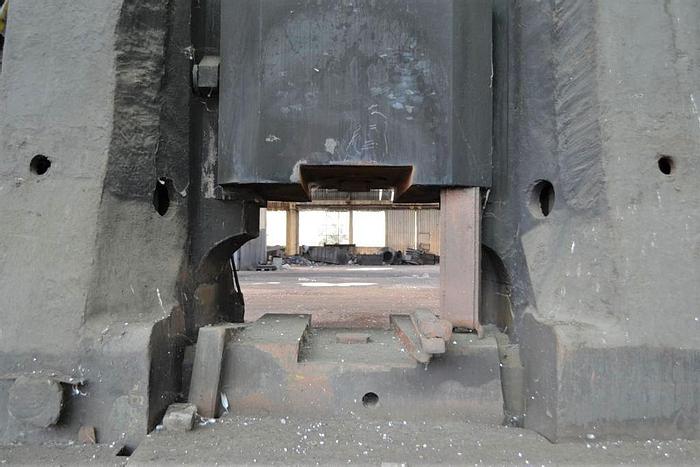

25 tons Hammer Forging Pneumatic Russian

Sold

Specifications

ManufacturerRussian
Year1986
ConditionUsed
Stock NumberMA1193
Item conditionGood working condition
Capacity tons25

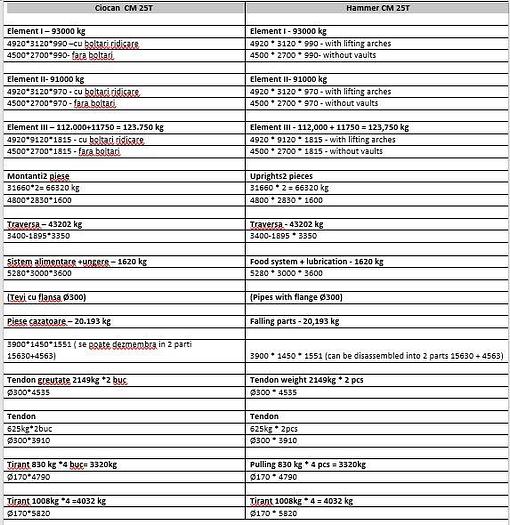

Description

Capacity : 25 tons,

Weight of falling parts (with upper die half) : 25 tons,

Maximum striking energy (at p = 9 bar) : 48,000 daN.m,

Maximum ram stroke : 1150 mm,

Distance between guides : 1220 mm,

Working cylinder diameter : 1030 mm,

Distribution valve diameter : 400 mm,

Length x Width of the die holder : 1800 x 1400 mm,

Total weight of the hammer : 458 tons.


**Dimensional Parameters**

Total height of the hammer : 10300 mm,

Height above ground level : 6900 mm,

Maximum length in horizontal plane (excluding supply pipes) : 4920 mm,

Maximum width (excluding annexes) : 3100 mm,

Minimum height of die parting line above ground : 700 mm,

Minimum height of die block (excluding swallows' tails) : 540 mm,

Foundation base area for base plate : 4500 x 2700 mm.


**Kinematic and Functional Characteristics**

Maximum ram working stroke : 1150 mm,

Maximum working stroke of the distribution drawer : 200 mm,

Working fluid pressure : (6 - 9 bar),

Maximum energy (at p = 9 bar) : 48000 daN.m,

Maximum energy (At p = 6 bar) : 33000 daN.m,

Maximum weight of upper die half : 5 tons,

Duration of a complete cycle at maximum stroke : 2 sec.,

Working medium: air, hot air up to max. 180°C, steam,

Average air consumption per cycle: 10.75 Nmc/cycle,

Maximum air flow required : 321 Nm3/minute,

Average air consumption per minute : 250 Nm3/minute.


**Servomechanism Control Characteristics**

Maximum rod stroke : 220 mm,

Control fluid pressure : (5/9) bar,

Control fluid : compressed air.


All technical manuals are available.
