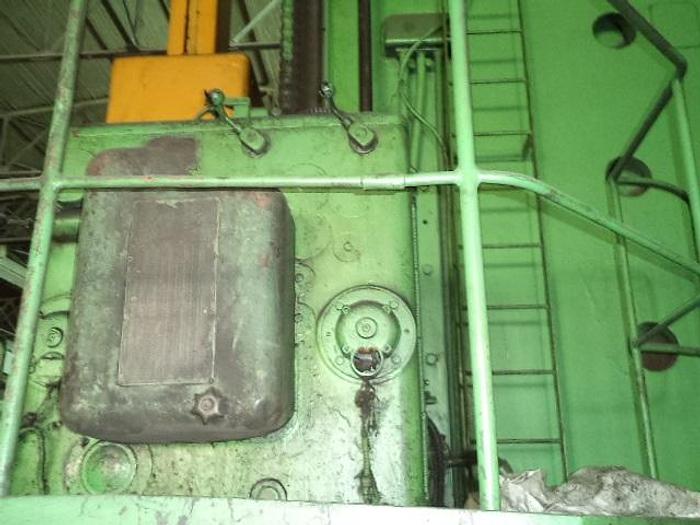

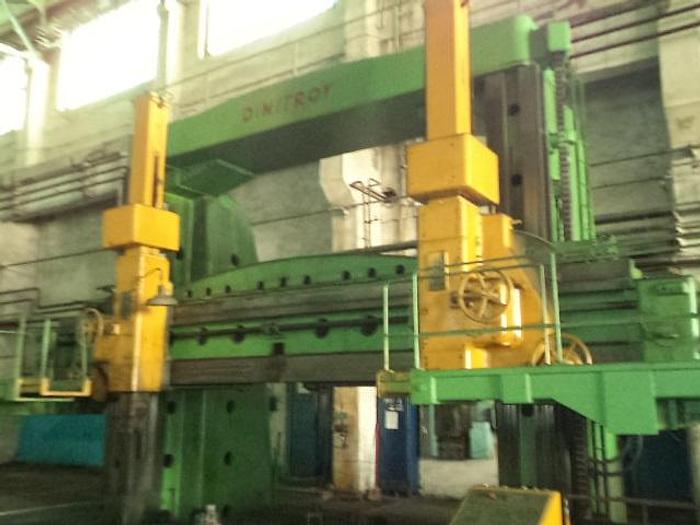

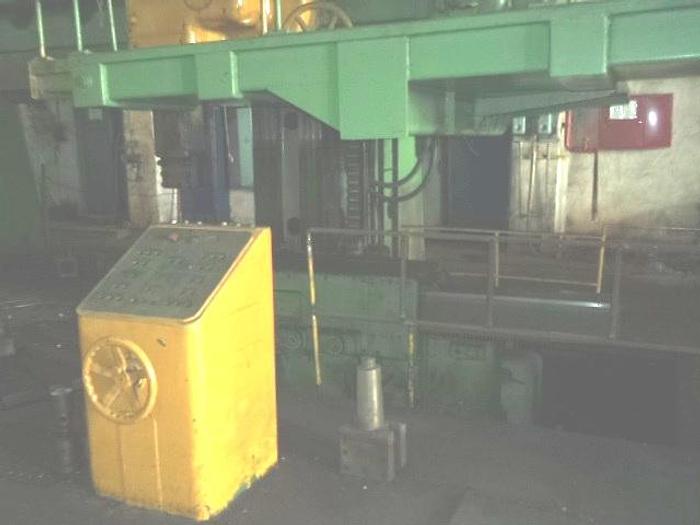

Lathe Vertical Turning K5000

Max. swing with vertical tool holder : 5200 mm,

Max. swing with side tool holder : 5000 mm,

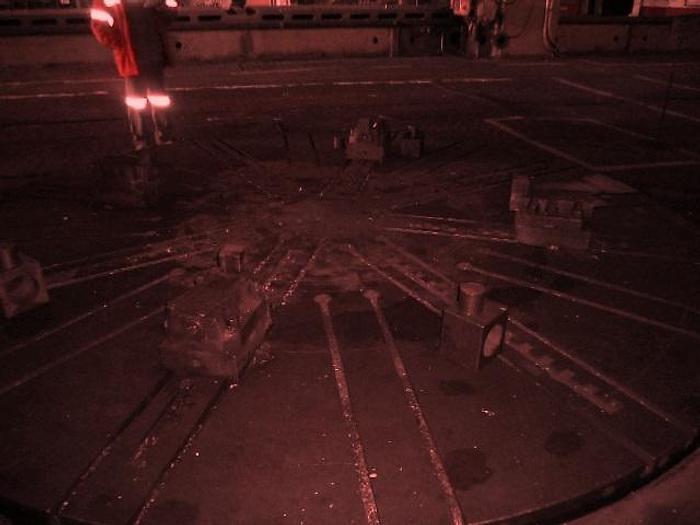

Table dia : 4750 mm,

Max. Working height : 2500 (with vertical tool holder) & 3000 mm (with side tool holder),

Max. load on table : 40 Tons,

Max. torque : 2250.000 kg/cm,

Tool holder : 60 x 60 mm,

Table T slot width : 36 mm,

Travel of horizontal slide : 2750 mm,

Travel of side ram : 1400 mm,

Horizontal travel of side ram : 1250 mm,

Total Power : 145 kW,

Machine height : 7430 mm,

Machine Weight : 103 tons.
