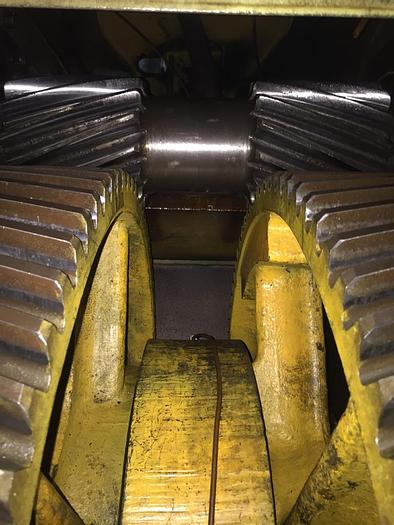

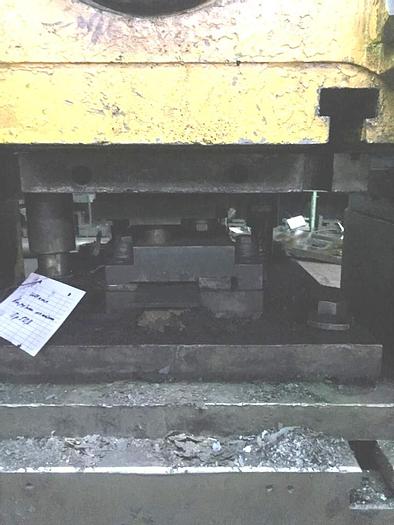

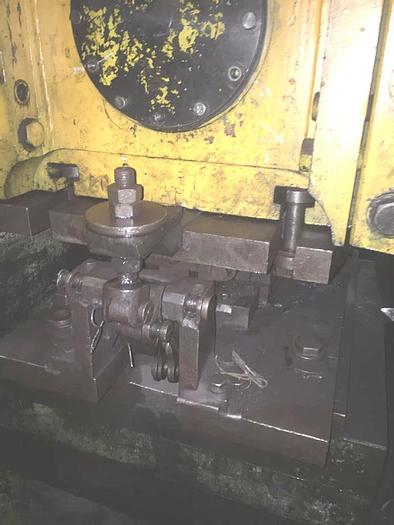

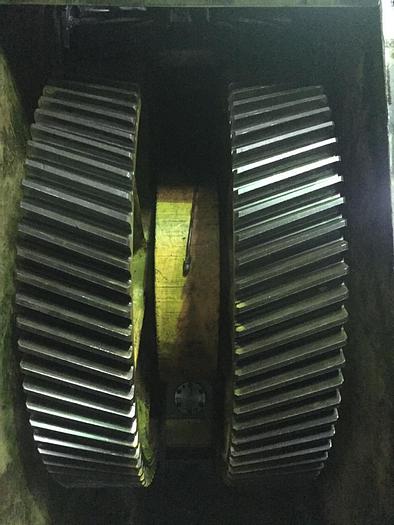

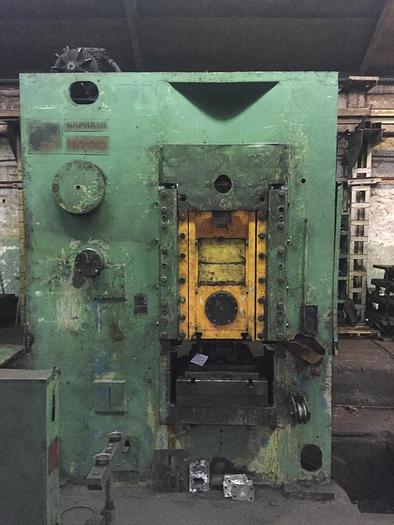

Press Knuckle Joint Coining KB8340B

Capacity : 1000 tons,

Slide stroke : 70 mm,

Strokes per 1 min : 32,

Shut height : 470 mm,

Bolster plate-to-ram adjustable stroke : 16,

Table size : 800 x 800 mm,

Bolster plate thickness : 140 mm,

Lower knockout :

Stroke : 110 mm,

Force : 320 kN,

Upper knockout :

Stroke : 10 mm,

Force : 100 kN,

Main motor power : 40 kW, 380 V,

Overall dimensions : 2950 x 1950 x 4090 mm,

Weight : 26 tons.
