Press Forging Open Die Hydraulic CKW1000
Specifications
Manufacturer | Abe Seiki,Japan |
Model | CKW1000 |
Year | 1980 |
Condition | Used |
Stock Number | MA1166 |

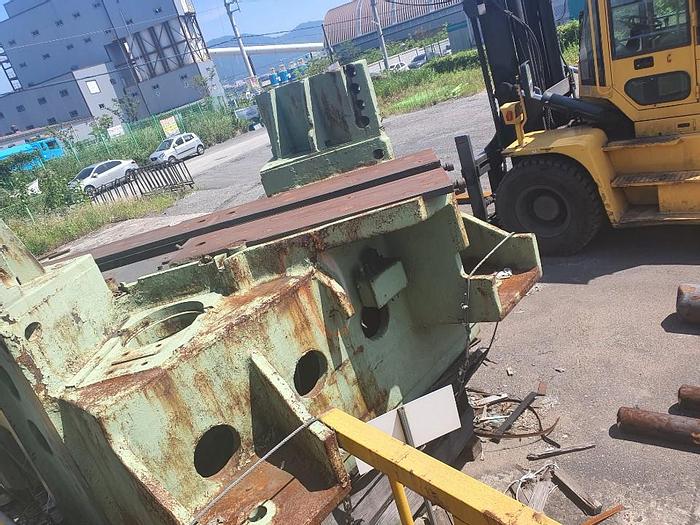

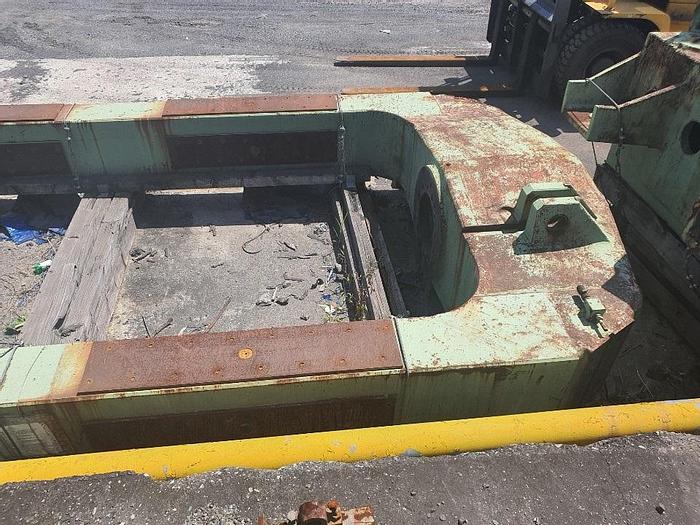

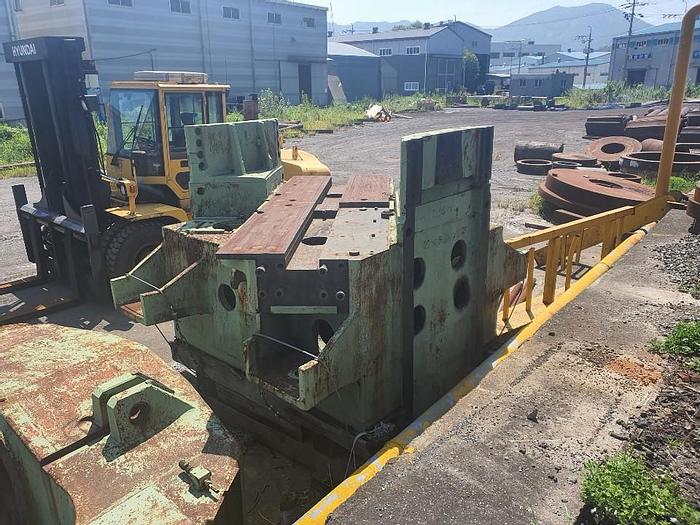

Item condition | Good working condition, Disassembled |
Capacity tons | 1000 |
Description

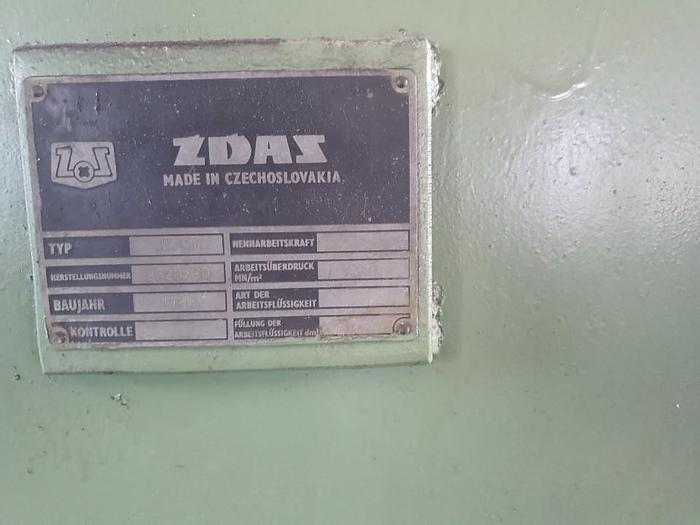

ZDAS CKW 1000 , 1000 T Press + Dango 8 Ton RBM
1.YOM 1980 Zdas Model CKW 1000
Capacity : 1000 tons,
Upsetting : 1200 tons,
Construction:
Distance between columns : 1560 mm,
Stroke : 1000 mm
Daylight between bolsters : 2,250 mm,
Speed - forging speed as well as maximum strokes / minute : 130 mm/sec,
Hydraulic controls: oil
Whether the pump room is in the cellar :underground , can be modified.
Whether dies are available or not? : no available
Auxiliary device:
Whether top changing system is remote operated.
Whether table shift is available.
Whether pop-up turntable is not available.
Total power requirement, ( 50Hz or 60Hz ) : Electrical control panel not available.
Whether electric and electronic controls are available? : Not available
Estimated weight of press mechanics : Approx 70 Ton
GA drawing - Available
Hydraulic schematic or at least make and number of main pumps : Lexroth , 2 set

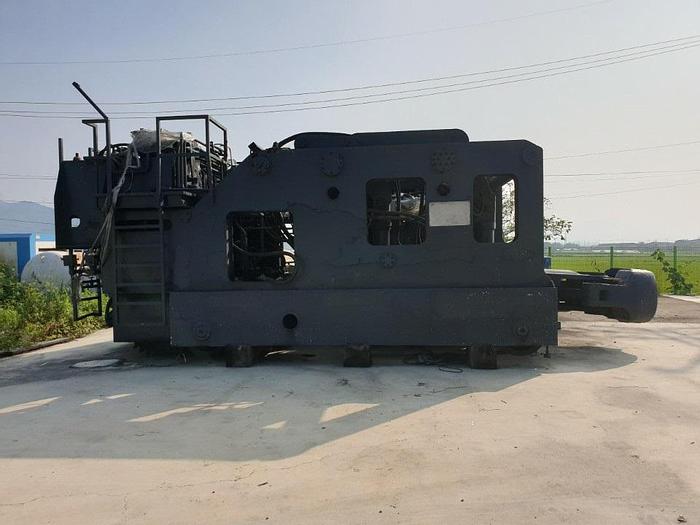

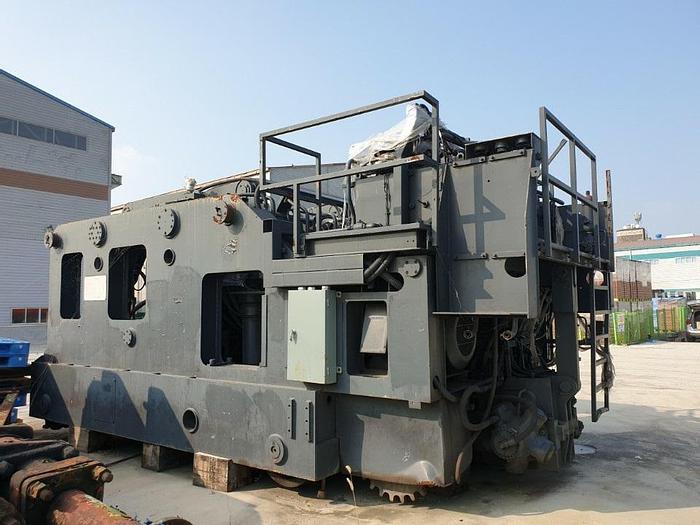

8 ton Dango RBM Model S30.1 svc
Capacity : Loading – 8 ton,
Load moment (meter-Tons) : 20 MT
YOM : 1978
Tongs Max/Min Opening Ø830 /Ø270
Lifting Stroke : 920 mm
Whether electric and electronic controls are not available .
Whether all drawings are available? : yes
Foundation : Ok
Piping : OK , drawing only.
Hydraulic schematics : Ok
Assembly and sub-assembly : Ok
Electrical and cable schedule : Ok drawing only.
Electronic schematics : Ok , drawing only.
Technical manuals available
