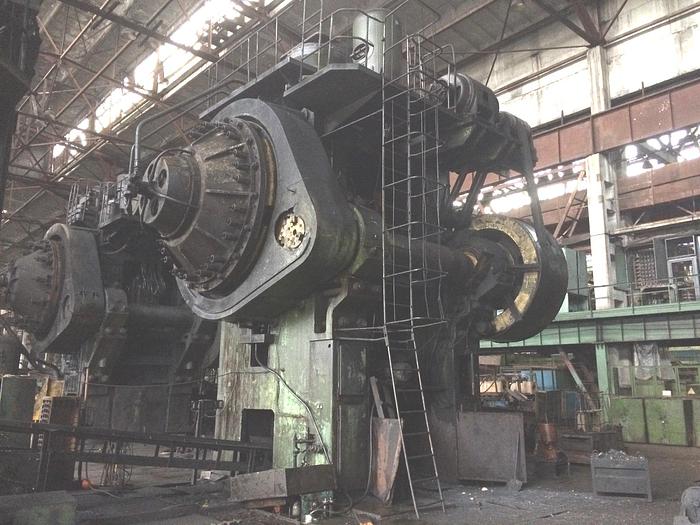

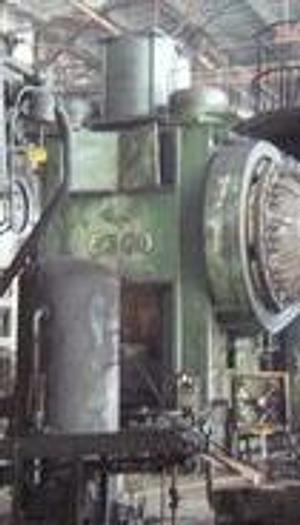

Press Hot Forging KB8548

Capacity : 6300 tons,

Stroke : 460 mm,

Stroke per minutes : 40,

Number of single engagements min-1 : 12,

Main drive electric motor power : 320 kW,

The distance between the table and the slide base plate in its extreme position (adjustment down) : 1150 mm,

The value of adjusting the distance between the table and the slider : 10 mm,

Table dimensions, mm

Left-right : 1900 mm,

Front-back : 1950 mm,

The size of the RAM, mm

Left-right : 1900 mm,

Front-back : 1680 mm,

Upper ejector:

Stroke : 40…65 mm,

The effort, ts : 16

Lower ejector:

Stroke : 100 mm,

The effort, ts 30

Press dimensions, mm

Left-right : 7635 mm,

Front-back : 5760 mm,

Height above floor level : 9400 mm,

Weight : 561 tons,

Compressed air consumption per stroke of the RAM, dm3 : 115

Die Holder included.
