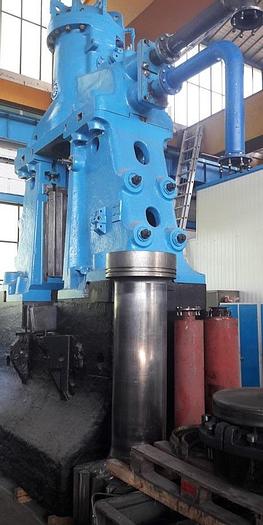

Hammer Forging Pneumatic MPM6300

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelMPM6300
ConditionUsed
Stock NumberMA1161
Item conditionGood Condition
Capacity tons2.5

Description

Capacity : 2.5 tons,

Energy of blow : 7000 kg.m,

Weight of falling ram : 2500 Kg,

Max. Tup stroke : 850 mm,

Guideway spacing : 650 mm,

Length of die seat in the tup : 650 mm,

Length of die seat in the cushion : 900 mm,

Min. Height of the die (without dovetail) : 300 mm,

Max. Weight of upper die : 800 Kg,

Stroking rate : 100 s.p.m.,

Steam or incoming air pressure : 5-7 Kg/cm2,

Average steam consumption : 970 Kg/h,

Average air consumption : 18 m3/mm,

Height above the floor : 4100 mm,

Total height : 5145 mm,

Weight of anvil : 47.5 ton,

Total weight of the hammer : 64 tons.t
