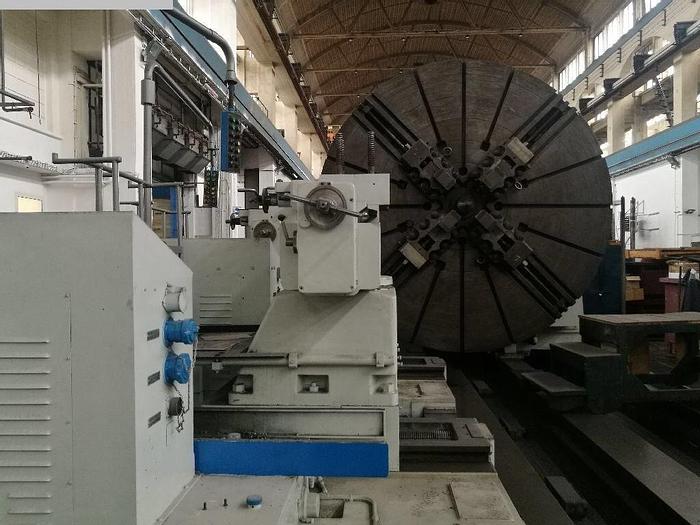

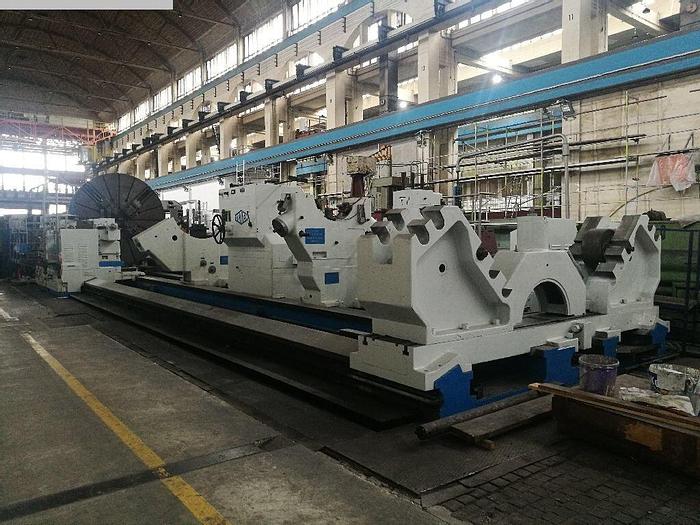

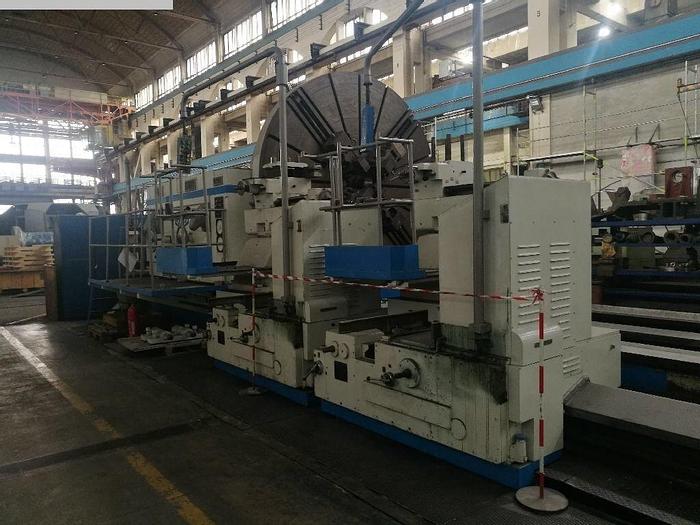

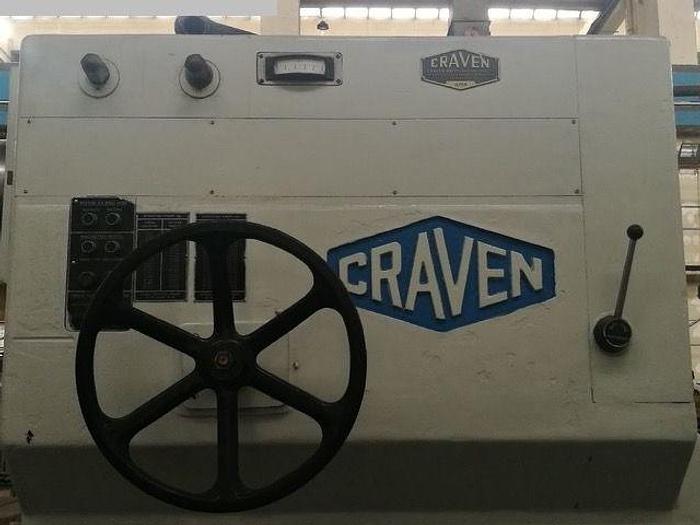

Lathe Heavy Duty Craven,UK

Conventional

Turning diameter over bed : 3680 mm,

Turning diameter over slide : 3251 mm,

Turning length : 15240 mm,

Faceplate diameter : 3350 mm,

Turning speed range : 0,8 - 40 U/min,

Feeds infinitely variable : 0,8 - 387 mm/min,

Center height : 1842 mm,

Max. workpiece weight between centers : 100 ton,

Spindle diameter in front bearing : 610 x 1016 mm,

Spindle diameter Rear Spindle: 379 x 610 mm,

Min./max workpiece dia. 216 - 3099 (external)mm,

Min./max workpiece dia. 635 - 3518 (internal)mm,

Lip angle 90 °,

Threading metric 1 - 25 mm/Stg.

Main drive motor : 74,5 kW,

Power capacity - kW

Weight of the machine ca. : 250 ton,

Dimensions of the machine ca.: 21500 x 4500 mm.
