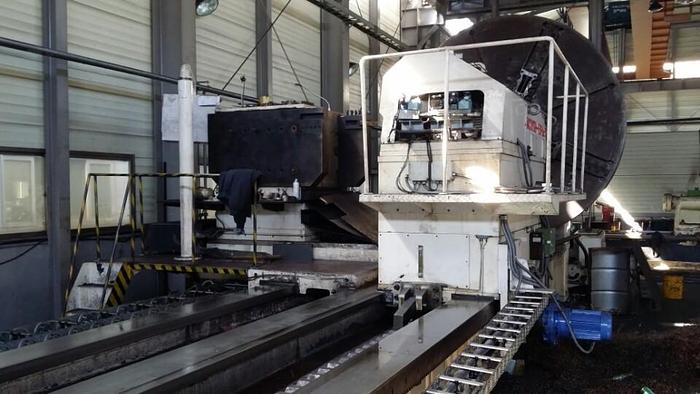

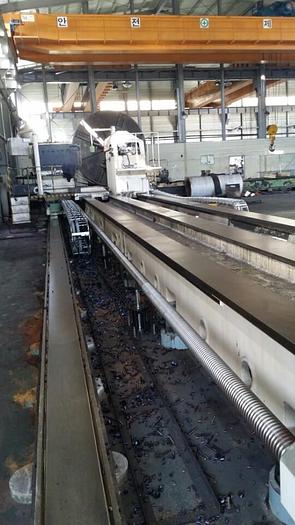

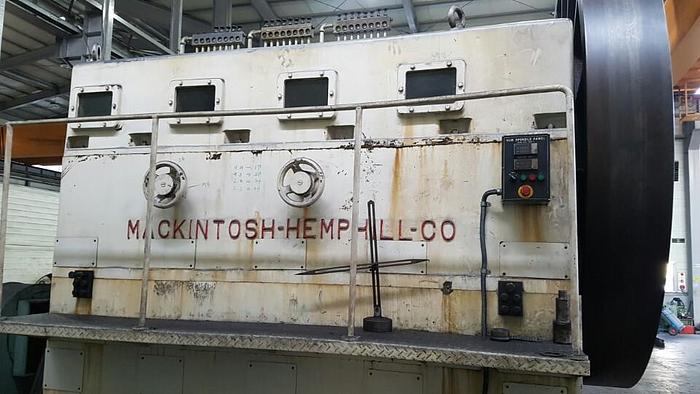

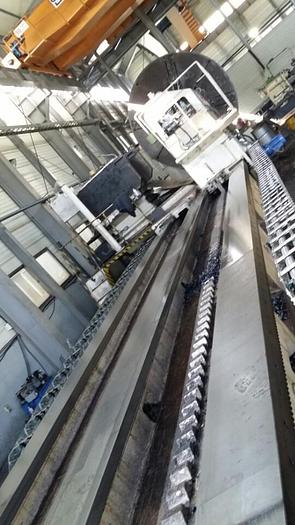

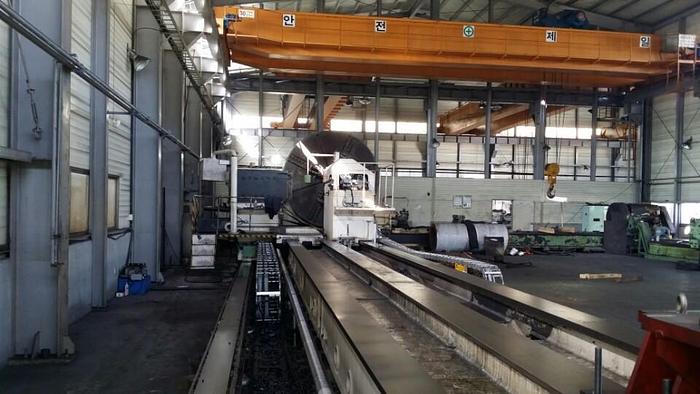

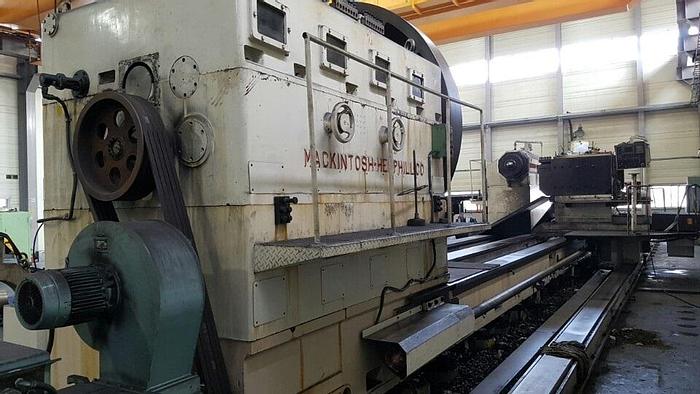

Lathe Heavy Duty CNC Mackintosh Hemphill Co.

NC Lathe : 3200 x 16 M,

Swing over Bed / Carriage  : 3200 / 3000 mm,

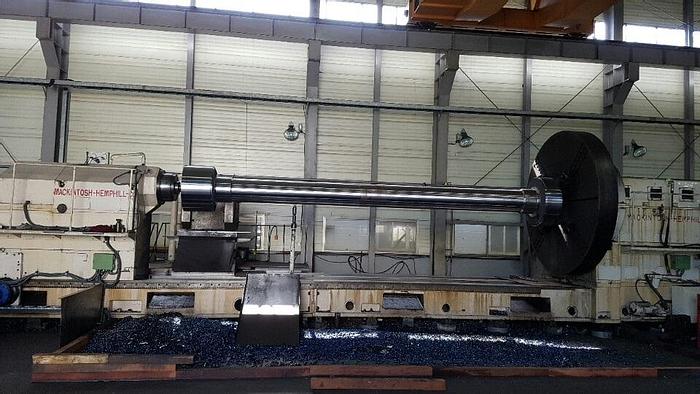

Chuck (Faceplate) : Dia 2800 mm (Thickness : 340 mm),

Main Spindle Rotation : Bearing Type,

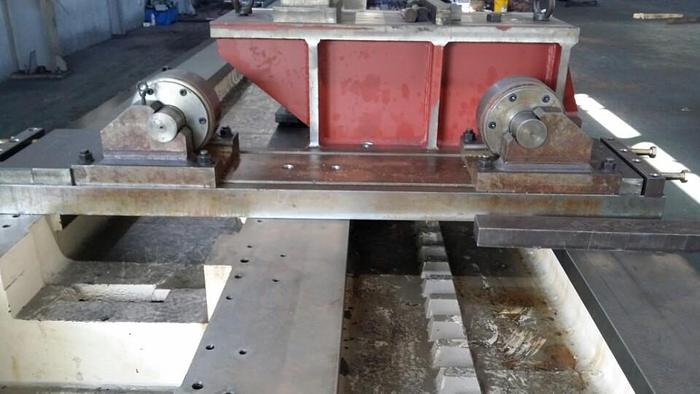

4 Shear Bed,

Distance B/C (X axis) : 16000 mm with Ball Screw (Ball screw’s Dia 100 mm),

Y axis : 1600 mm (distance from top surface of bed to the center of tailstock)

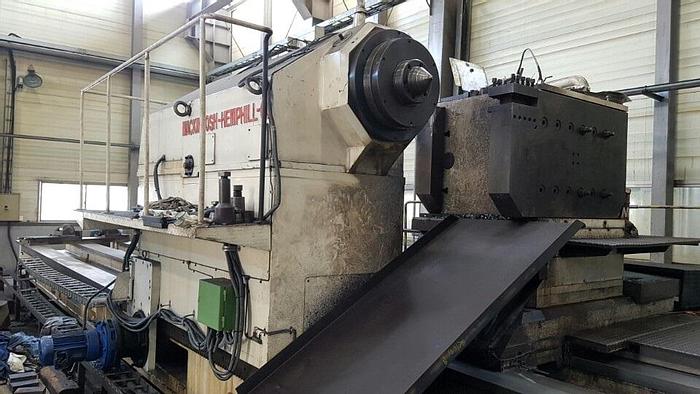

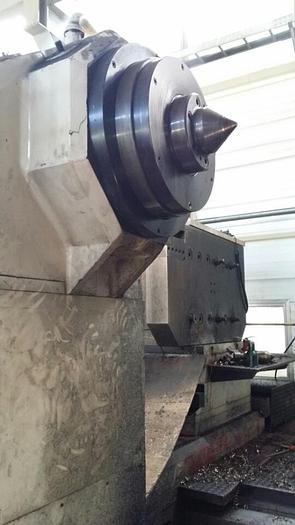

Tailstock : Center’s Quill : Dia 500 mm,

Stroke : 450 mm,

Max weight of Workpiece without rest : 150 tons,

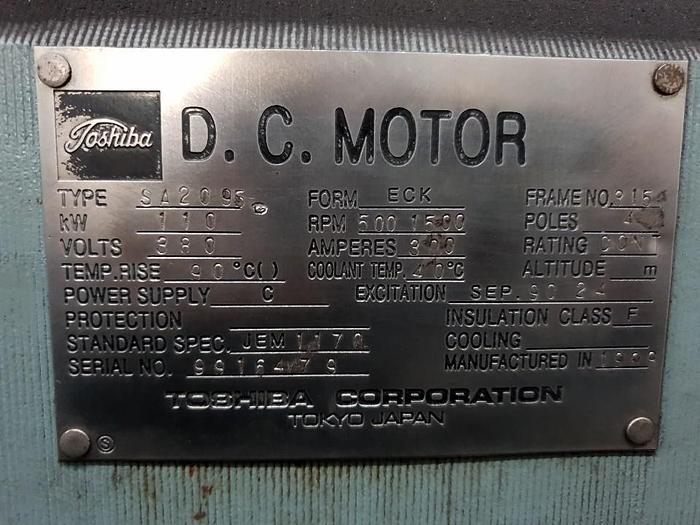

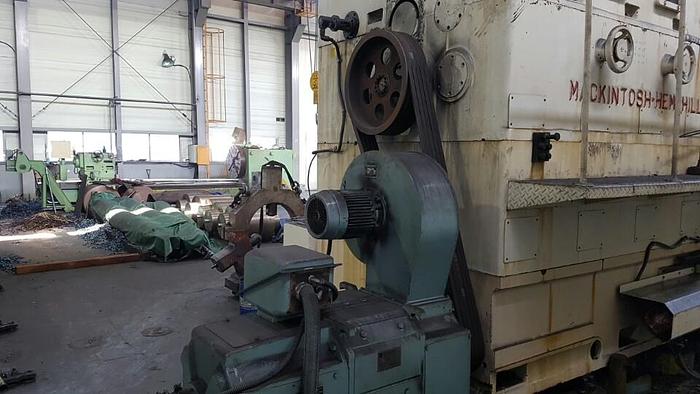

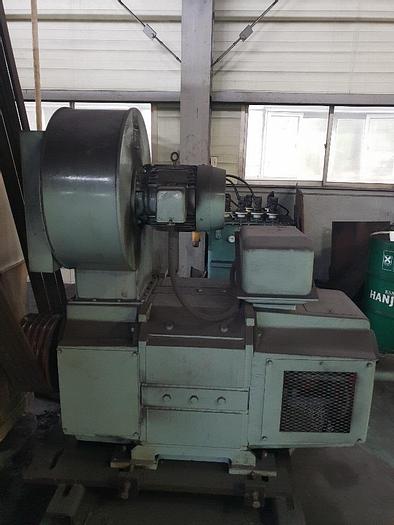

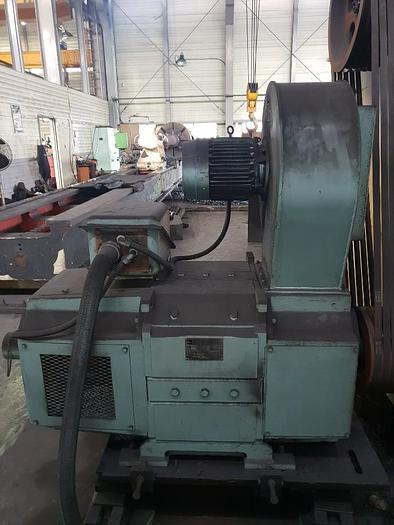

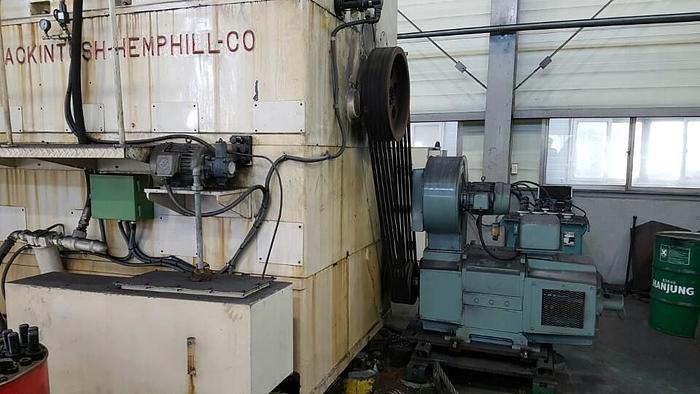

Main Motor : 150 HP,

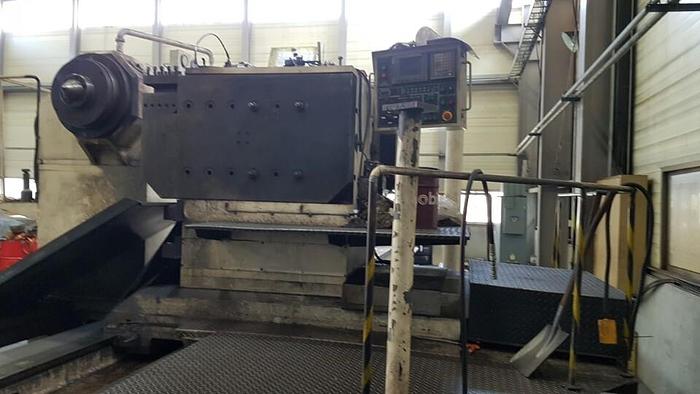

NC Controller : Fanuc 21i.

Rebuilt in 2012 by Korean specialists, Original Yom 1995.

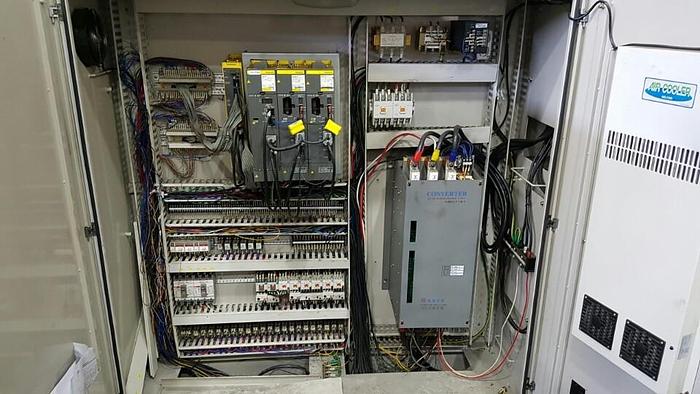

Electrical drawing available, mechanical drawings - partially available.
