Press Forging Open Die Hydraulic Zdas

Sold

Specifications

ManufacturerAbe Seiki,Japan
ConditionUsed
Stock NumberMA1150
Item conditionDisassembled
Capacity tons1000

Description

Press Type : Two (2) Column Pull Down,

Capacity : 1000 tons,

Stroke : 1000 mm,

Stroke per minutes : 60 - 90,

Number of main cylinders : 4,

Size of main cylinder : Ø 630 mm,

Forging Capacity # 320 kg/cm° : 1100 US ton,

Upsetting Capacity# 345 kg/cm2 : 1200 US ton,

Weight of Parts {\IY0P) estimated G' : 300 KNn1,

Number of return cylinders : 2,

Size of return cyliriders (lifting on annulus) : 230 x 125 mm,

Return Tonnage e 22okg/cm : 1,760 KNm,

Daylight between bolsters : 2,250 øm,

Clearance between columns : 1560/ mm.

Operating Speed of Press : 0-130 mm/sec,

Penetration Speed (300 bar) :

one(1) cylinders :0-87 mmfsec,

Approach Speed :0-250mmfsec.

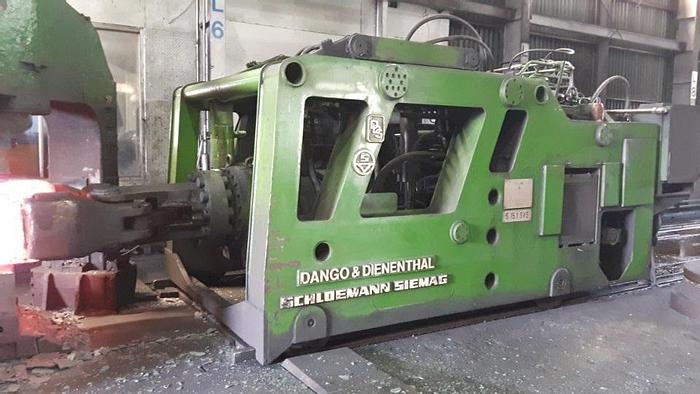

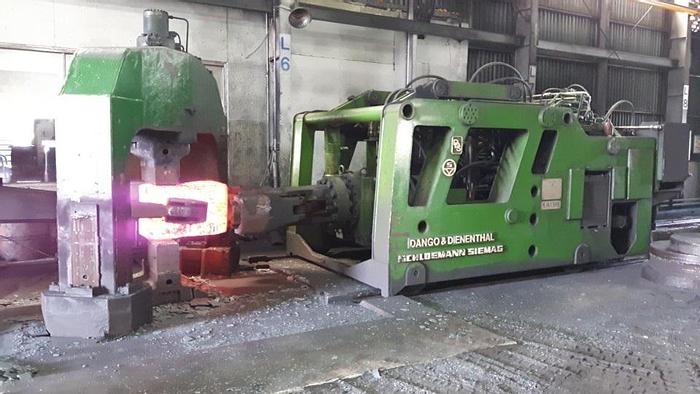

Maker : DANGO&-DIFNENTHAL

Mode : DDSS30.svs

Carrying Capacity : 8 tons,

Load moment : 20 mt,

Tongs max opening : ¢830 mm,

Tongs min opening : ¢270 mm,

Lifting lowest position : 865 mm,

Lifting stroke : 920 mm,

Rail gauge(Rail Center Distance) : 3,000 mm,

Tongs shift left & right : ±200 mm,

Total electric power source : abt 90 Kw,

Machine weight : abt 40 tons.


Technical manuals available
