Press Forging Open Die Hydraulic Seonam
Specifications
Manufacturer | Abe Seiki,Japan |
Year | 2008 |
Condition | Used |
Stock Number | MA1147 |
Item condition | Good working condition |
Capacity tons | 2000 |
Description

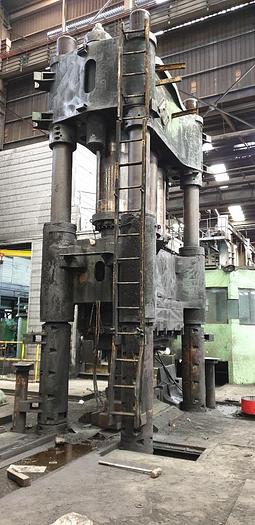

Four Column Push Down Open Die Forging Press
Capacity : 2000 tons,
Max. press stroke : 1500 mm,
Press daylight : 3400 mm,
Press force stage, at 300 bar:
- 1 stage (one-central cylinder) : 12.3 MN (1230 tons),
- 2 stage (two-side cylinders) : 10.63 MN (1063 tons),
- 3 stage (three-all cylinders) : 20 MN (2000 tons),
Distance between columns (clear width) : 2730 × 1180 mm,
Number of pull back cylinders : 2,
Eccentric loading at 20 MN - in line of forging : 150 mm either side,
at right angle to line at forging : 300 mm press center,
Die Table shifting device stroke (Left, Right): 6000 mm (L.3000mm, R.3000mm),

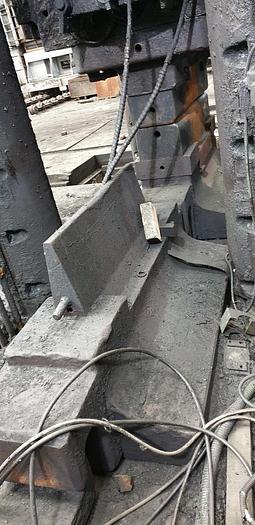

Table area (width × length) : 2200 × 6000 mm,
Press speeds
- Forging speed at 20MN (2000 Ton) : 60 mm/sec,
10.63 MN (1063 Ton) : 80 mm/sec,
- Advance speed. Fas : 250 mm/sec,
- t/slowReturn speed. Fast/slow : 250 mm/sec,
- Die table slide forward. Fast/slow : 250 mm/sec,
Force
- Forging : 20 MN (2000 ton),
- Return 2.4 MN (240 ton),
- Moving table : 0.65 MN (65 ton),
- Top die clamping : 0.15 MN (15 ton),
Hydraulic main pumps : 4 sets × A7V, A2FO,
High pressure axial, piston pump, Rexroth Germany,
Total electric power supply
- 4 sets × main motor : 185 kw 440 volt 1200 rpm,
- 1 set × pilot motor : 37.5 kw 440 volt 1200 rpm,
- 1 set × cooling and filtering motor : 22 kw 440 volt 1750 rpm,
- 1 set × lube motor : 0.75 kw 440 volt,
Electric main motor : 5 sets × 185 kw, 440 volt , 1200 rpm,
Overall dimension of the press:
- Total height : 11,300 mm,
- Press height above floor level : 8,500 mm,
- Depth : 2,800 mm,
Weight of press : Approx. 250 tons.
reconditioned 2020
PLC control panel and Operator panel: Mitsubishi PLC control panel 16’’ color touch screen.
Cycle mode : Manual, Semi-auto, Auto cycle.
Recond 2020
