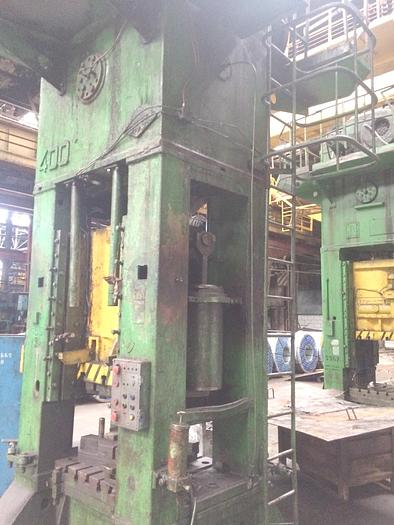

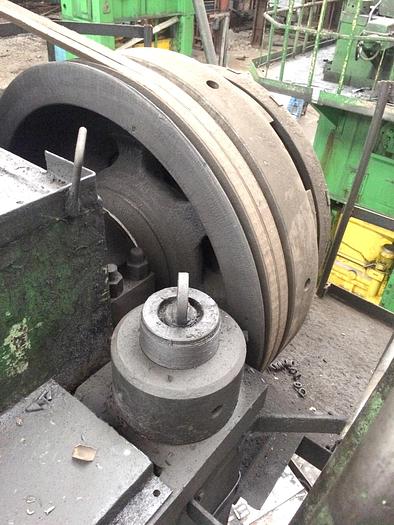

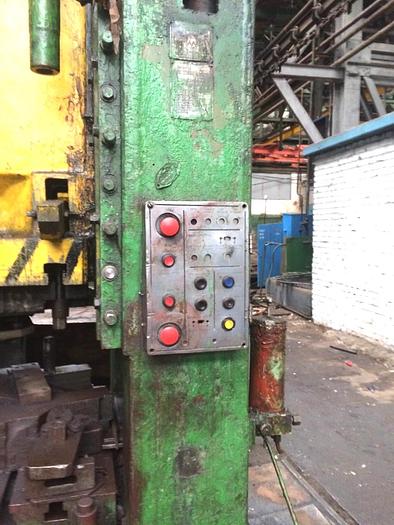

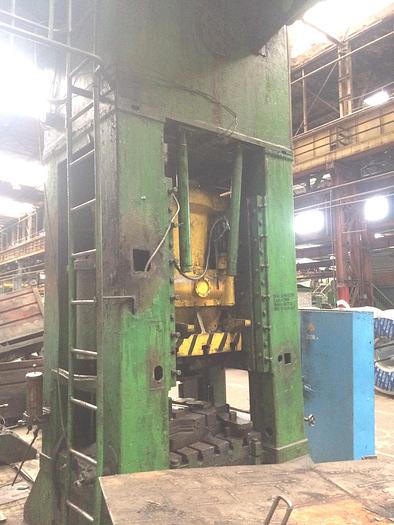

Press Trimming KA2536

Capacity : 400 tons,

Slider stroke length : 250 mm,

Slider stroke length to lower position: 12 mm,

Slider strokes per minute : 25,

Number of single turn-on : 19,

Shut height : 510 mm,

Adjustment : 160 mm,

The sizes of a under-forging plate : 1000 mm,

Table overall dimensions :

- from front to rear : 1000 mm,

- from left to right : 1000 mm,

Slider overall dimensions : 800 x 800 mm,

Total power of electric motors : 43,3 kW,

Press overall dimensions :

- length : 3470 mm,

- width : 3140 mm,

- height : 5940 mm,

Weight : 36.5 tons.
