Sheet Stamping Line Mechanical

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelDL4P-2500
Year2014
ConditionUsed
Stock NumberMA1113
Item conditionVery good condition
Capacity tons2500

Description

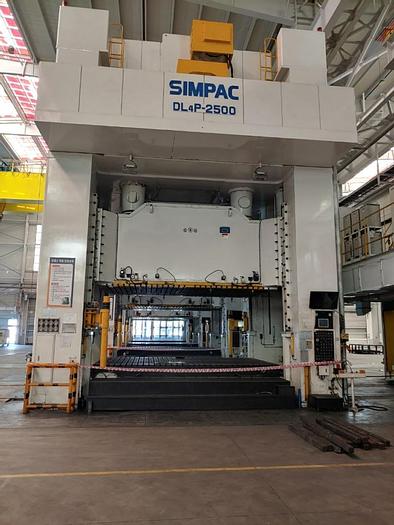

Tandem Line


Model : DL4P-2500

Capacity : 2500 tons,

Stroke Length : 800 mm,

Strokes per Min : 10-20/10,

Die Height : 1600 mm,

Slide Adjust : 700 mm,

Slide Area (LR x FB) : 5000 x 3000 mm,

Bolster Area (LR x FB) : 5000 x 3000 mm,

Bolster Thickness : 300 mm,

Min Motor : 315 x 4 (A.C) Kw x P,

Adjust Motor : 18.5 x 6 Kw x P,

Voltage : 440 x 60 V x Hz,

Rated Current : 536.1 A,

Die Cushion :

Capacity : 350 tons,

Stroke : 400 mm,

Pad Area (LR X FB) : 4400 x 2300 mm,

Adjust Motor : 3.7 X 6 Kw x P.

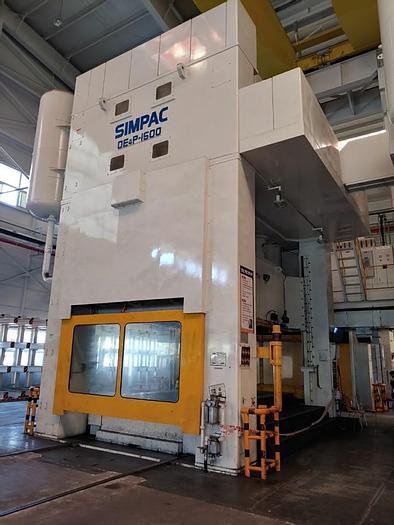

Model : DL4P-1500-07

Capacity : 1500 tons,

Stroke Length : 800 mm,

Strokes per Min : 10-20/10,

Die Height : 1500 mm,

Slide Adjust : 700 mm,

Slide Area (LR x FB) : 5000 x 3000 mm,

Bolster Area (LR x FB) : 5000 x 3000 mm,

Bolster Thickness : 300 mm,

Min Motor : 200 x 4 (A.C) Kw x P,

Adjust Motor : 18.5 x 6 Kw x P,

Voltage : 440 x 60 V x Hz,

Rated Current : 343 3 A,

Die Cushion :

Capacity : 350 tons,

Stroke : 350 mm,

Pad Area (LR X FB) : 4400 x 2300 mm,

Adjust Motor : 3.7 X 6 Kw x P.

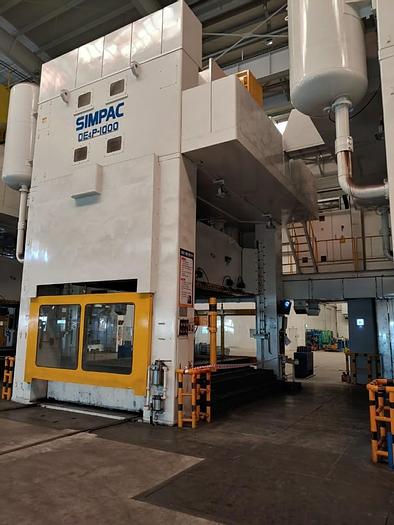

Tandem Line

Model : DL4P-1000-15

Capacity : 1000 tons,

Stroke Length : 800 mm,

Strokes per Min : 10-20/10,

Die Height : 1500 mm,

Slide Adjust : 700 mm,

Slide Area (LR x FB) : 5000 x 3000 mm,

Bolster Area (LR x FB) : 5000 x 3000 mm,

Bolster Thickness : 300 mm,

Min Motor : 132 x 4 (A.C) Kw x P,

Adjust Motor : 15 x 6 Kw x P,

Voltage : 440 x 60 V x Hz,

Rated Current : 223.8 A,

Die Cushion :

Capacity : 180 tons,

Stroke : 300 mm,

Pad Area (LR X FB) : 4400 x 2300 mm,

Adjust Motor : 2.2 X 6 Kw x P.

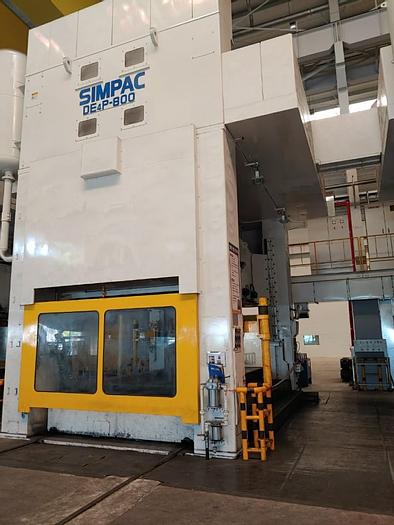

Tandem Line

Model : DL4P-800-13

Capacity : 800 tons,

Stroke Length : 800 mm,

Strokes per Min : 10-20/10,

Die Height : 1500 mm,

Slide Adjust : 700 mm,

Slide Area (LR x FB) : 5000 x 3000 mm,

Bolster Area (LR x FB) : 5000 x 3000 mm,

Bolster Thickness : 300 mm,

Min Motor : 110 x 4 (A.C) Kw x P,

Adjust Motor : 15 x 6 Kw x P,

Voltage : 440 x 60 V x Hz,

Rated Current : 188.8 A,

Die Cushion :

Capacity : 180 tons,

Stroke : 300 mm,

Pad Area (LR X FB) : 4400 x 2300 mm,

Adjust Motor : 2.2 X 6 Kw x P.
