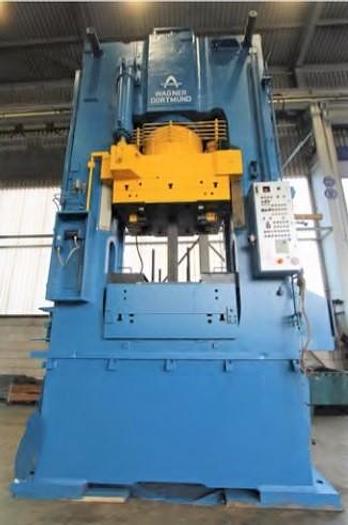

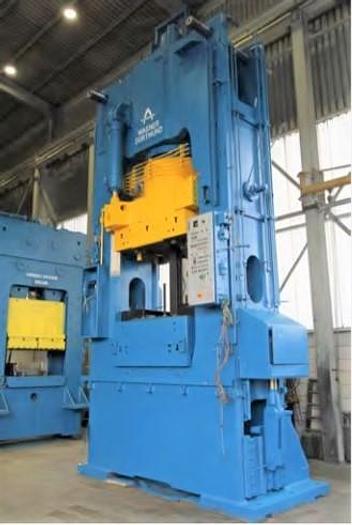

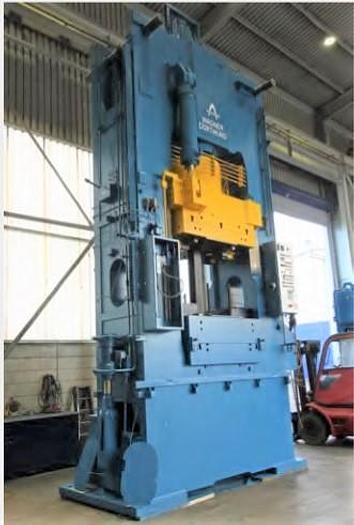

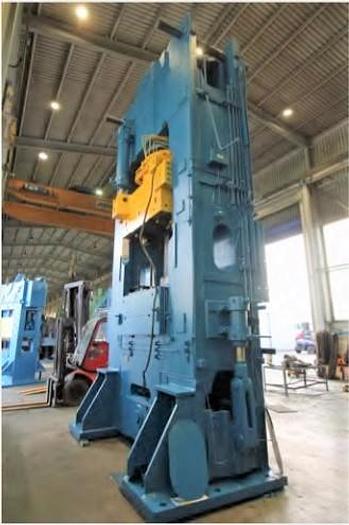

Press Forging Hydraulic DStPo1600
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | DStPo1600 |
Condition | Used |
Stock Number | MA1100 |
Item condition | Good Condition |
Capacity tons | 1600 |
Description
Capacity : 1600 tons,
Stroke : 700 mm,
Daylight : min. 1150 - max. 1850 mm,
Table size (left to right) : 1700 mm,
Table size (front to back) : 1300 mm,
Approach speed : 400 mm / sec,
Pressure speed at F max. : 10,9 mm / sec,
Return speed : 400 mm / sec,
Return force : 125 tons,
Lower ejector (power) : 40 tons,
Lower ejector (stroke) : 150 mm,
Upper ejector (power) : 40 tons,
Upper ejector (stroke) : 50 mm,
Driving power main drive : 3 x 75 kW / 380 V / 50 Hz,
Working pressure : 320 bar,
Height of machine above floor : 7840 mm,
Dimensions : 4200 x 2300 x 8200 mm (B x T x H),
Total weight : 100 tons.
