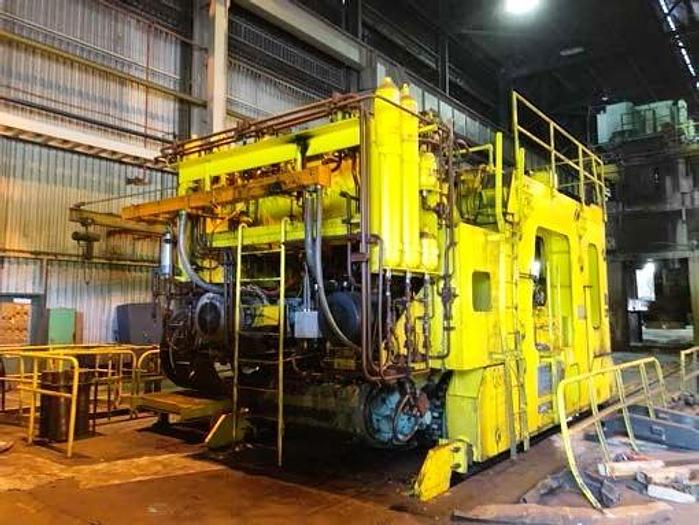

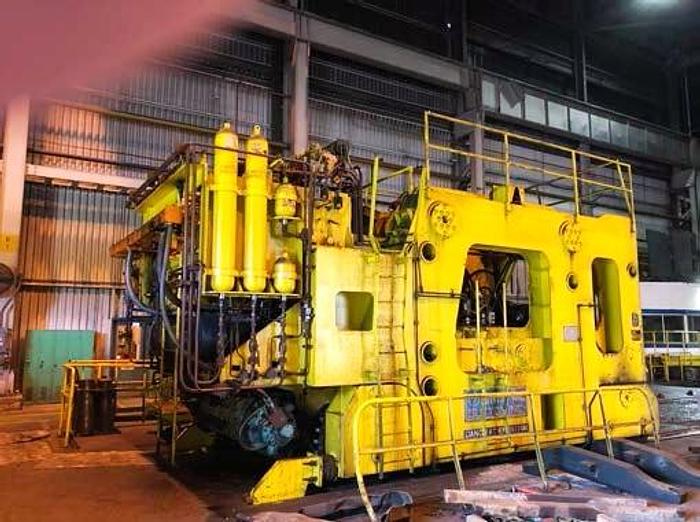

Manipulator SV60.1SVZ25

Rail Bound Forging Manipulator :

Capacity Data :

Max. Carrying Capacity : 25 tons,

Moment of Load (related to center of tongs) : 558 kN-m (217 ft.tons),

Short Time Overload : 677 kN-m (250 ft.tons),

Moment of Load (related to center of front wheel) : 1166 kN-m (430 ft.tons),

Short time Overload : 1355 kN-m (500 ft.tons),

Tongs Dimensions Data :

Max. Tongs Opening for Rounds : 1143 mm,

Min. Tongs Opening for Rounds : 317 mm,

Max. Tongs Opening with Inserts : 635 mm,

Min. Tongs Opening with Inserts : 101 mm,

Main Dimensions Data :

Total Length : 9525 mm,

Total Width : 3660 mm,

Total Height : 4300 mm,

Lowest Horizontal Position of tongs above floor : 1164 mm,

Parallel Hoist of Tongs : 855 mm,

Tilting of Tongs Upward : 165 mm,

Tilting of Tongs Downward : 304 mm,

Lateral Shift of Tongs to the Left : 203 mm,

Lateral Shift of Tongs tot he Right : 203 mm,

Working Times & Speeds Data :

Opening of Tongs : 150 mm/sec,

Closing of Tongs : 101mm/sec,

Lifting of Tongs : 0 – 127mm/sec,

Lowering of Tongs : 0 – 127mm/sec,

Tilting of Tongs Upward : 2 o/ Sec,

Tilting of Tongs Downward : 3 o/ Sec,

Rotating of Tongs (infinitely variable) : 2-20 RPM,

Lateral Shifting of Tongs to the Left : 101 mm/sec,

Lateral Shifting of Tongs to the Right : 101 mm/sec,

Travelling Forward/Backward : 0 – 508 mm/sec,

2 Steps Preselectable (infinitely variable) : 0 – 1016 mm/sec (0-40”)

Output :

PUMP P1 & P2 EM1:

Motors : 125 HP Per Pump,

Feed Capacity of Main Pumps : 315 l/min,

Speed of Motor : 1180 RPM,

Operating Pressure : 230 bar max.,

Pump Design : Axial Piston Variable Displacement,

Pump Type : PVK – 120LS – PNN – H1V-N,

PUMP P3 EM2:

Motor : 40 HP,

Feed Capacity of Main Pump : 230 l/min,

Speed of Motor : 1780 RPM,

Operating Pressure 140 bar max.,

Pump Design : Axial Piston Double Pump,

Pump Type : PFWH-60-LOFY-T/ + PVWH-11-LSAY-CN,

PUMP P4 EM3:

Motor : See Pump P3,

Feed Capacity of Circulation Pump : 45 l/min,

Speed of Motor : 1780 RPM,

Operating Pressure : 250 bar max.

Technical manuals available.
