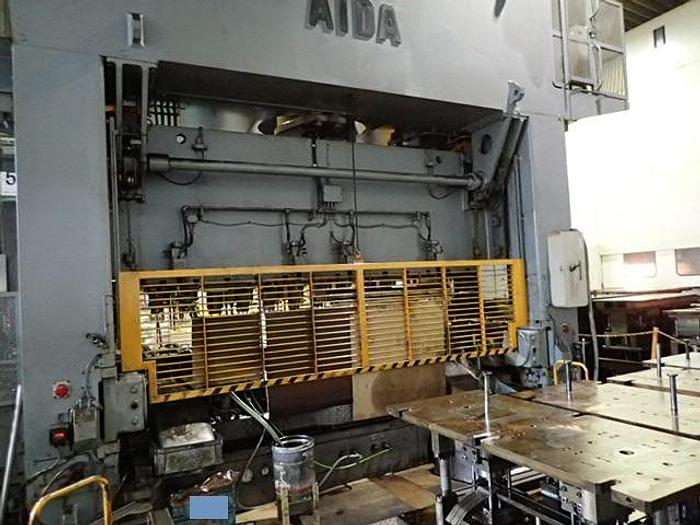

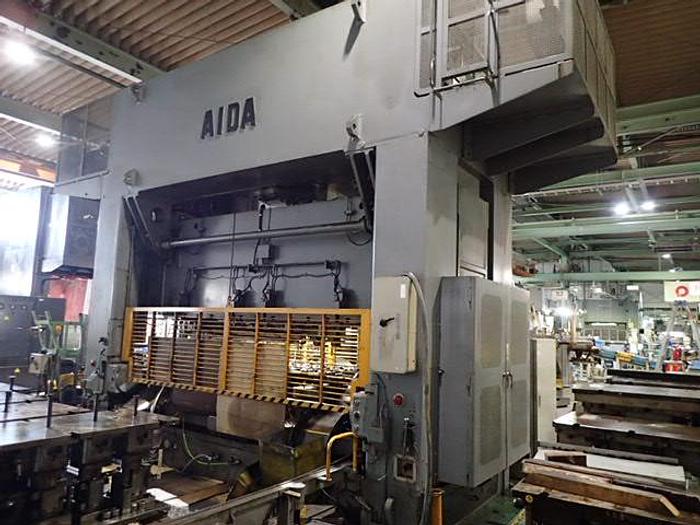

Press Transfer Mechanical AIDA,Japan
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Condition | Used |
Stock Number | MA1071 |
Item condition | Good working condition |
Capacity tons | 300 |
Description

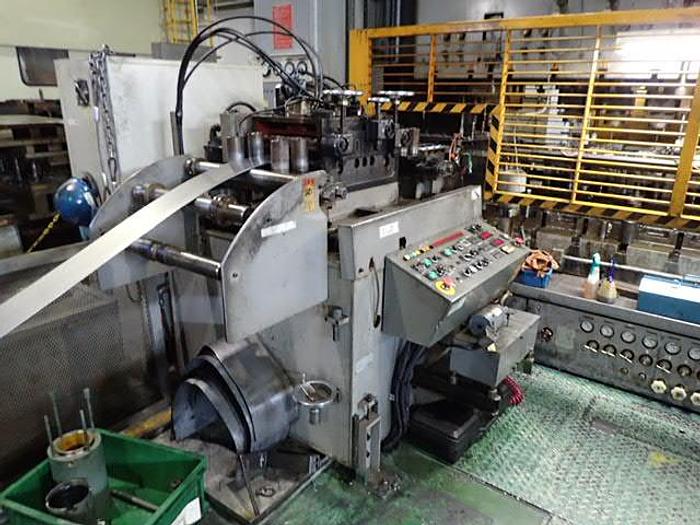

Transfer Press along with an Orii uncoiler leveler feeder unit :
Capacity : 300 tons,
Stroke : 350 mm,
Stroke Per Min 2nd Axis : 15 - 35,
Stroke Per Min 3rd Axis : 15 - 30,
Die Height : 700 mm,
Adjust : 100 mm,
Bolster : 3250 x 1000 mm,
Slide : 3250 x 1000 mm,
Main Motor : 45 Kw,
Feed Stroke : 250 mm,
Clamp Stroke : 120 mm,
Lift Stroke : 60 mm.
