Press Forging Open Die Hydraulic Korea

Sold

Specifications

ManufacturerAbe Seiki,Japan
ConditionUsed
Stock NumberMA1053
Item conditionGood working condition
Capacity tons2500

Description

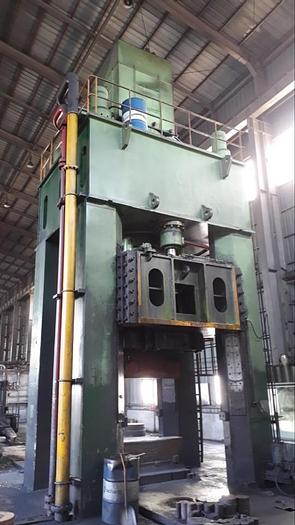

Free forging press:


Capacity : 2500 tons,

4- Column Push down Frame

Main Cylinder Stroke : 2500 mm,

Open Height : 2400 mm,

Press Speed :


Down 250 mm/sec,

forging 150 (at 1050 ton),

forging 75 (at 2100 ton),

forging 50 (at 2620 ton)


Up 250 mm,

Inside of Tie-Rod :2400 X 1800 mm,

Table Shift cap (at 250 bar),

Pull : 135 ton,

Push : 120 ton,


Main Cylinder Ram Die : 1100 mm,

Working Pressure : 280 kg/cm2,

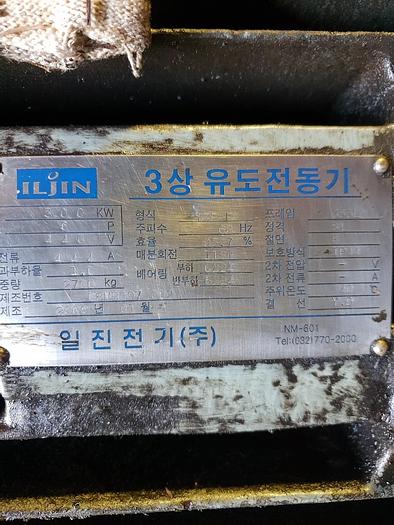

Main Motor : 300 Kw 6p 440V X 4EA,

Sub Motor 37 Kw X 1 EA,

Main Pump Lx 500 X 4EA / Lz 500 X 1EA,

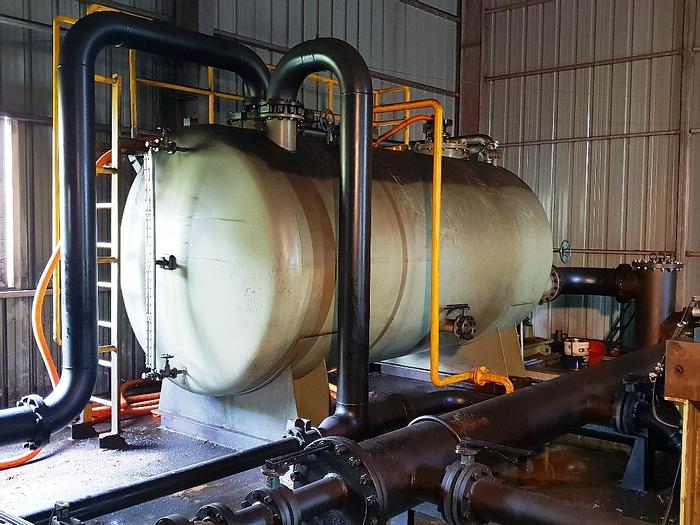

Main Oil Tank : 14000 liter,

Motor : 15 Kw 4p 440V,

Pre Fill Oil Tank : 2500 liter,

Forge Servo V/V Unit 4 set,

Noise lever 90Db(A) bellow,

Hydraulic pump Servo control,

Manual Semi Auto Operation,

Control Box,

Operation Panel


Supplied with

Cooling Tower

Pump PSV-1210 10HP,

Cooling Tower 80RT 100A,

Water Tank 5 tons,

Control Panel,

Pipes, Fittings and Others.
