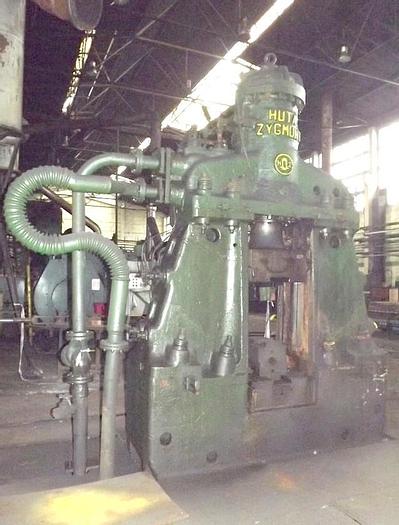

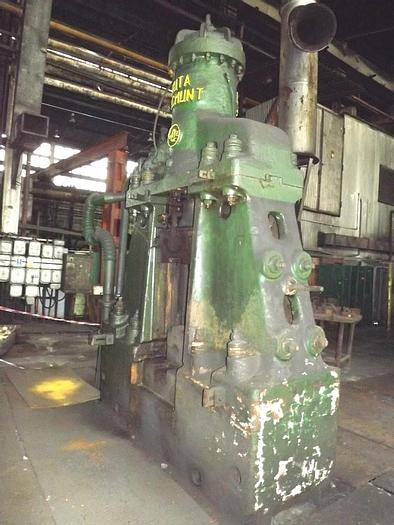

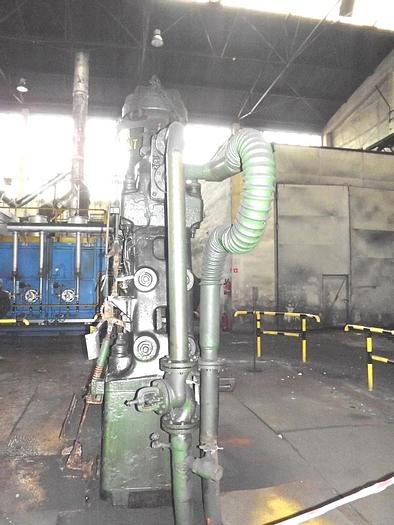

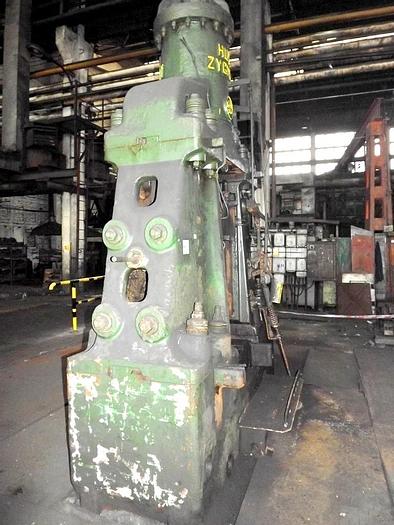

Hammer Forging Pneumatic MPM3150
Specifications
| Manufacturer | Huta Zygmunt, Polish |
| Model | MPM3150 |
| Condition | Used |
| Stock Number | MA1031 |
| Item condition | Good working condition |
| Capacity tons | 1 |
Description
Capacity : 1 ton,
Stroke rate : 110 spm,
Total height : 4380 mm,
Energy of blow : 3600 kg.m,
Max. tup stroke : 800 mm,
Weight of anvil : 24 tons,
Guideway spacing : 550 mm,
Weight of falling ram : 1250 Kg,
Height above the floor : 3750 mm,
Average air consumption : 12 m3/mm,
Max. weight of upper die : 400 Kg,
Average steam consumption : 650 kg/h,
Total weight of the hammer : 35 tons.
Length of die steam in the tup : 500 mm,
Steam or incoming air pressure: 5-7 Kg/cm2,
Length of die steam in the cushion : 700 mm,
Min.height of the die (without doveta) : 220 mm.
