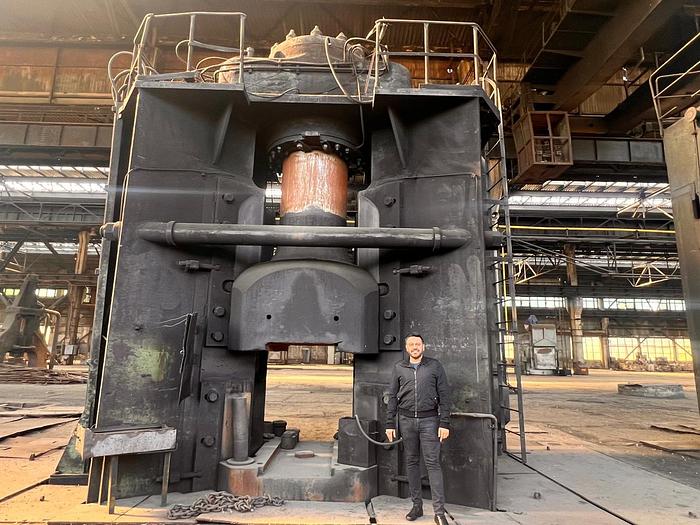

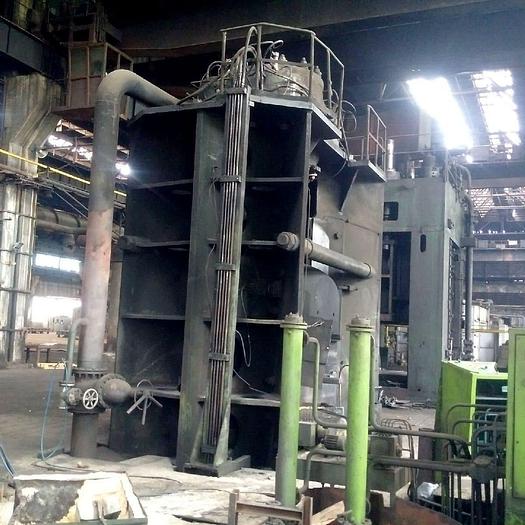

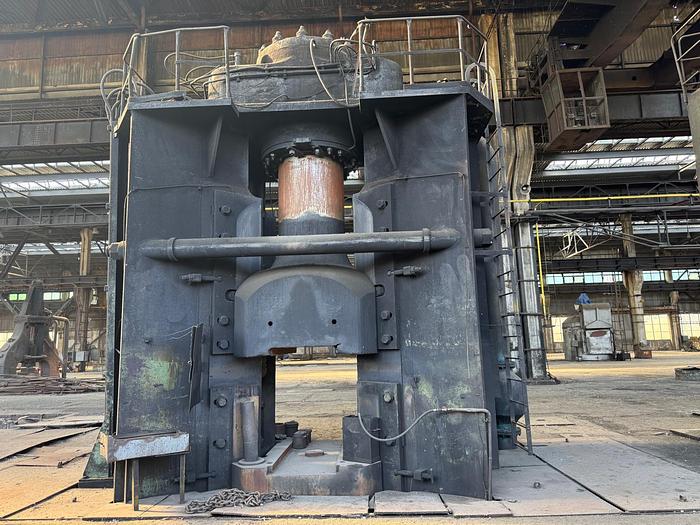

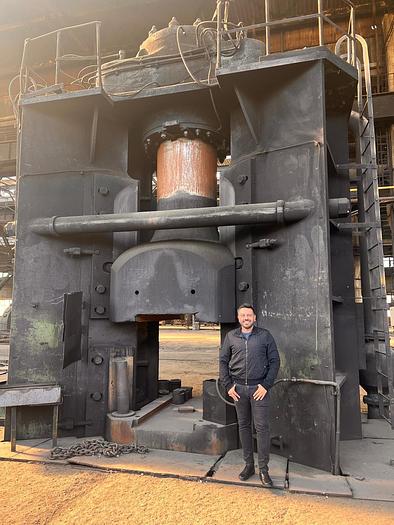

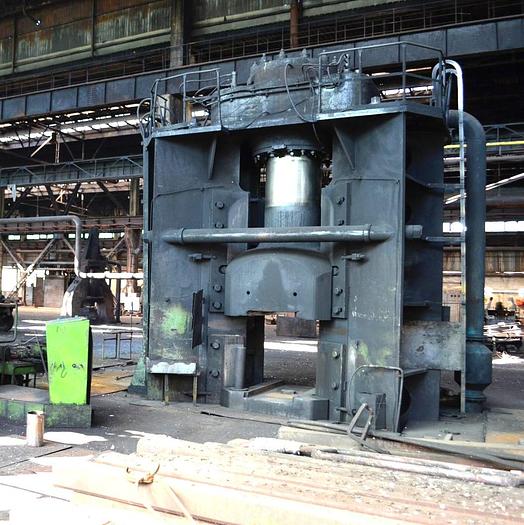

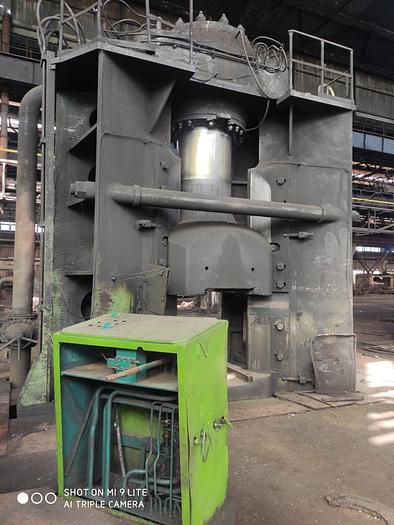

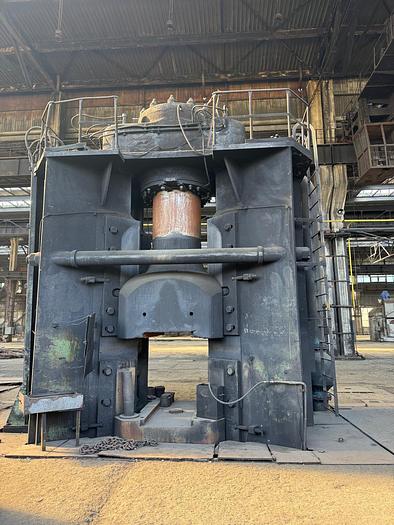

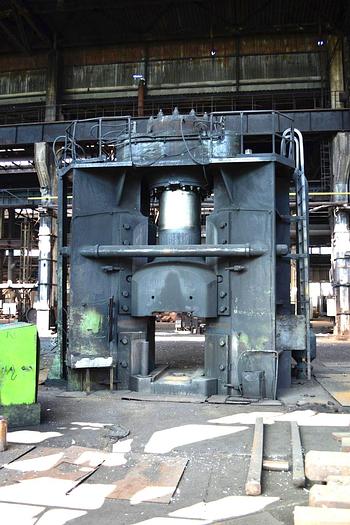

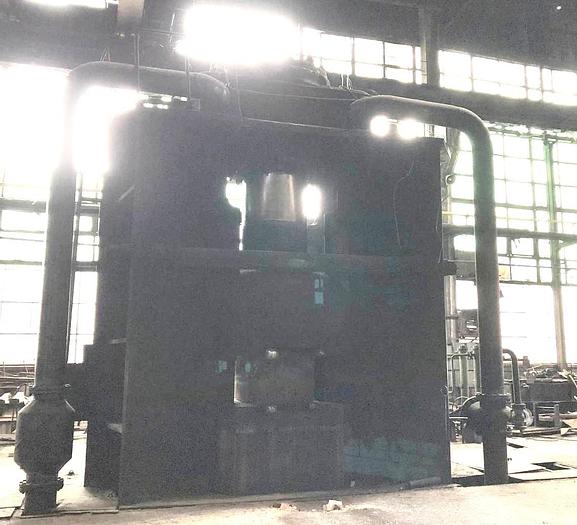

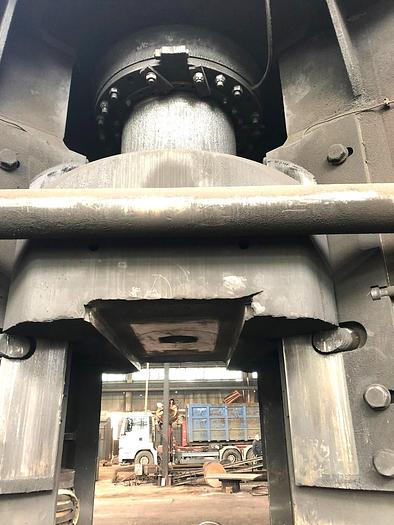

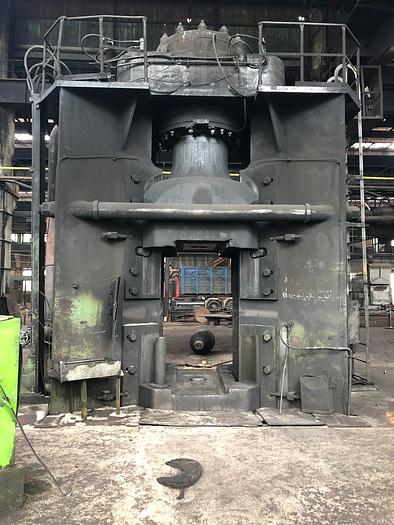

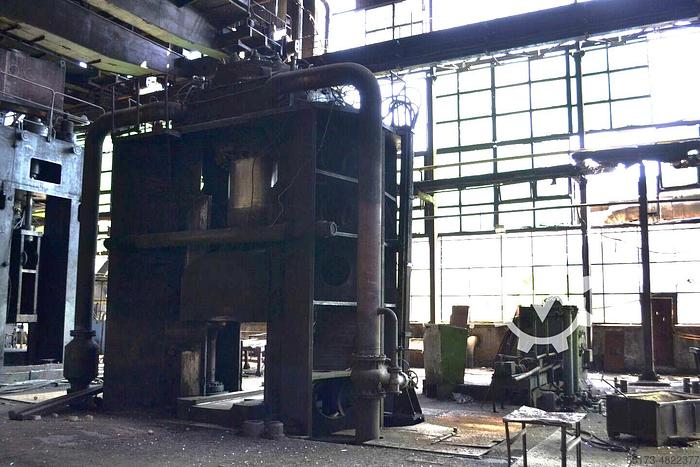

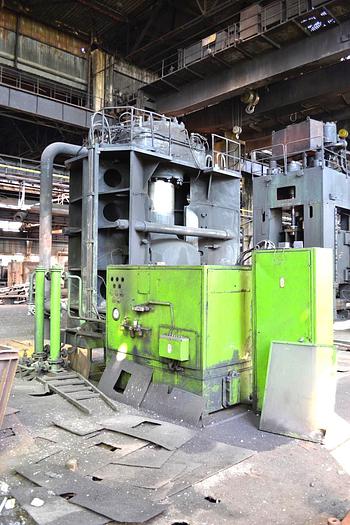

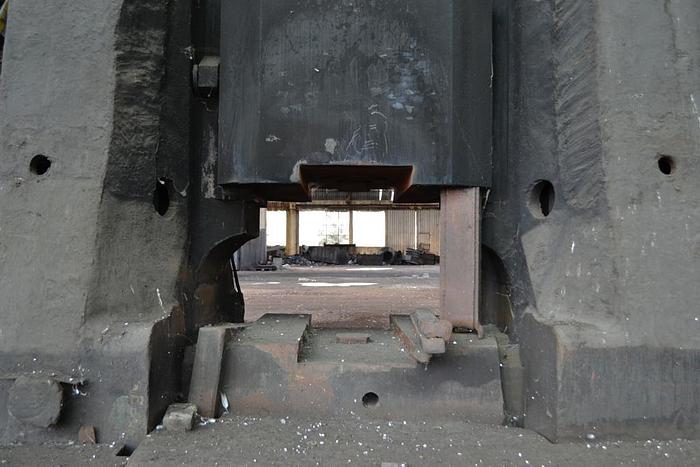

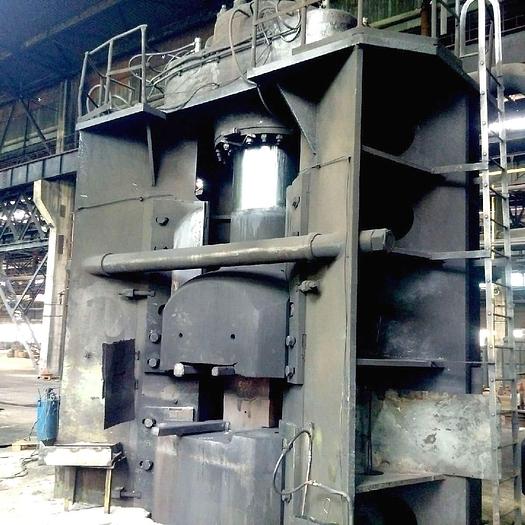

40 tons Hammer Counterblow DGH40 Beche

Capacity : 40 tons,

Rated size : 40,000 kgs,

Produces parts which weigh between : 50-400 kg,

Counterblow hammer (2 rams with 40T each) pneumo-hydraulic action

Ram stroke : 1400 mm,

Ram L-R : 3200 mm,

Ram F-B : 3000 mm,

Anvil L-R : 3000 mm,

Anvil F-B : 4800 mm,

Max. blow per minute : 40,

Compressed air pressure : 6-8 bar,

Oil pressure : 120 bar,

Maximum impact energy : 350 Kj,

Between the guides in daylight : 1400 mm,

Floor space L-R : 3800 mm,

Floor space F-B : 2800 mm,

Hammer height above the floor : 5880 mm,

Total Weight : 281 tons.
