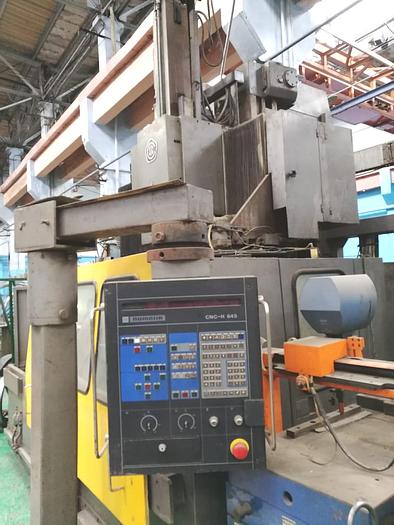

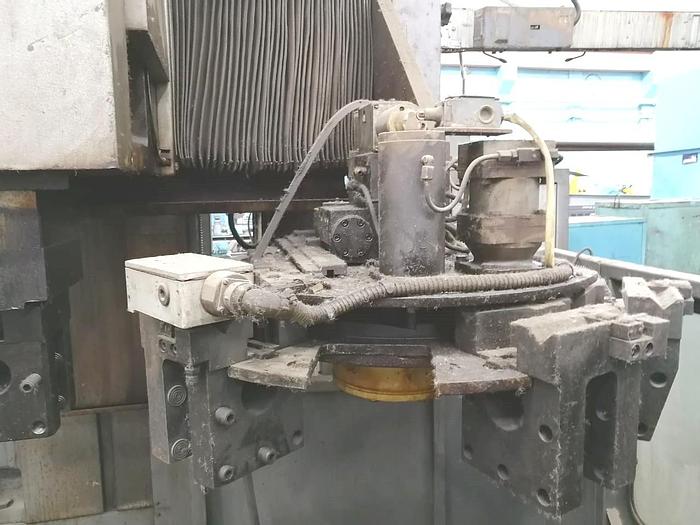

Lathe Vertical Turning CNC 1A516MF3
Sold
Specifications
| Manufacturer | Russian |

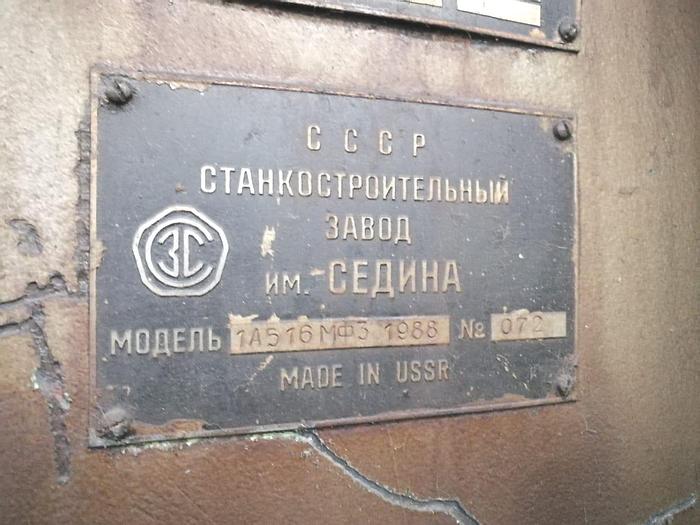

| Model | 1A516MF3 |
| Year | 1988 |
| Condition | Used |
| Stock Number | MA0983 |
| Item condition | Good condition |
| Capacity tons | 1600 |
Description
Turning dia : 1600 mm,
Height : 1250 mm,
Faceplate dia : 1400 mm,
Max. mass of workpiece : 15 tons,
Max. height of cutting tool section : 50 mm,
Max. stroke of carriage slide : 800 mm,
No. of tools nests in the magazine : 10,
Faceplate speed (stepless control) : 0.8-278 RPM,
Carriage working feed on each axis : (stepless control) : 0.01-100 mm/rev,
Max. rate of carriage positioning traverse : 6000 mm/min.,
Max. cutting force : 5 tons,
Max. faceplate torque : 35 kN-m,
Power of main drive : 55 kW,
Sound level at operators position : 80 dB,
Discreteness of point to point traverse : 0.001 mm,
Weight : 27 tons.
