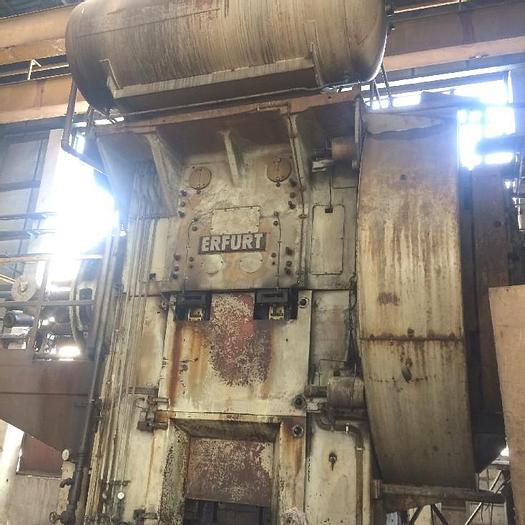

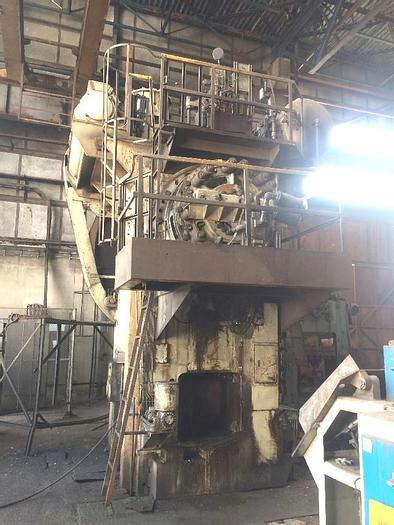

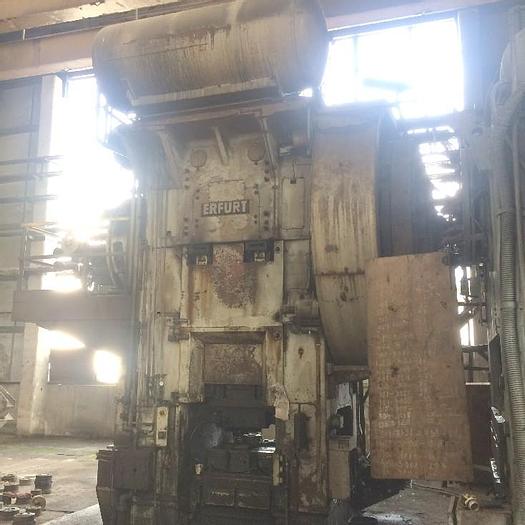

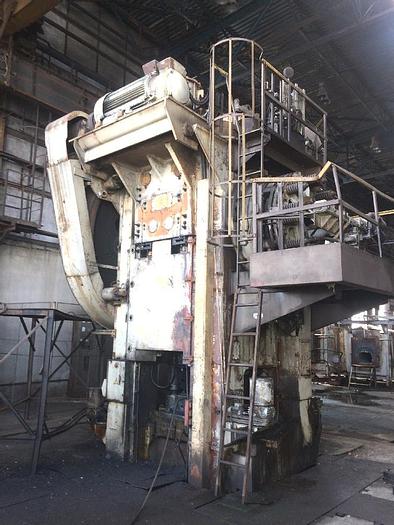

1600 tons Press Hot Forging PKXW1600 Erfurt

Capacity : 1600 tons,

Ram Stroke : 280 mm,

Stroke per minute : 85 SPM,

Slide adjustment : 16 mm,

Die height : 1000 mm,

Slide area : 900 x 1050 mm,

Bolster area : 1120 x 1250 mm,

Upper ejector capacity : 10 tons,

Upper ejector stroke : 40 mm,

Upper ejector : 3 place,

Upper ejector dia of pin : 50 dia,

Upper ejector pitch : 250 mm,

Lower ejector capacity : 24 tons,

Lower ejector stroke : 70 mm,

Lower ejector : 3 place,

Lower ejector dia of pin : 50 dia,

Lower ejector pitch : 250 mm,

Column gap : 1150 mm,

Machine dimension (FR x LR x H) : 4300 x 4810 x 6900 mm,

Work height : 500 mm,

Power supply : 440 V,

Control Power : 110 V,

Side open : 900 x 840 mm,

Main motor : 90 kW,

Machine Weight : 120 tons.
