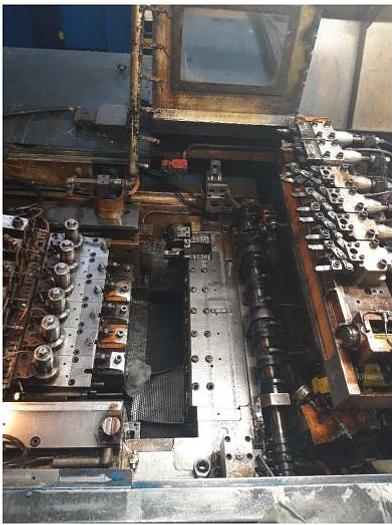

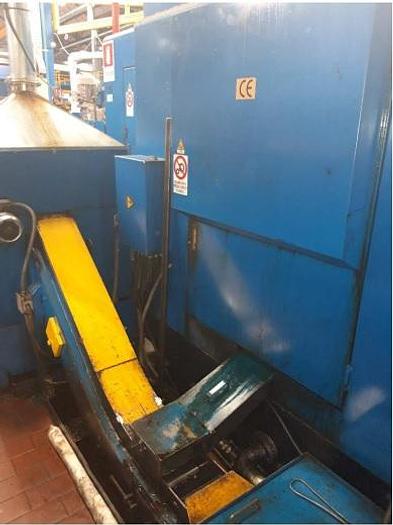

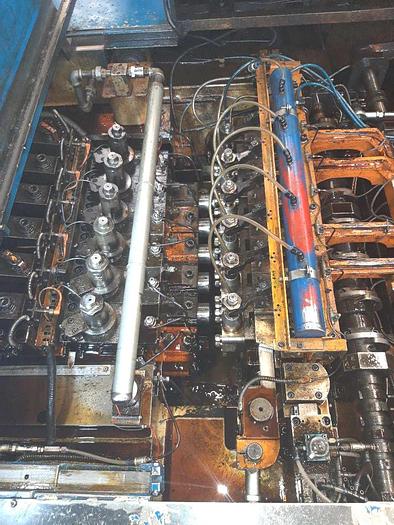

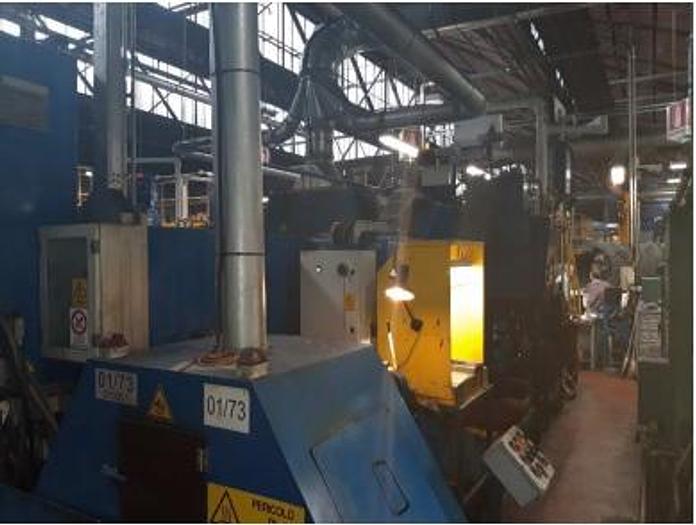

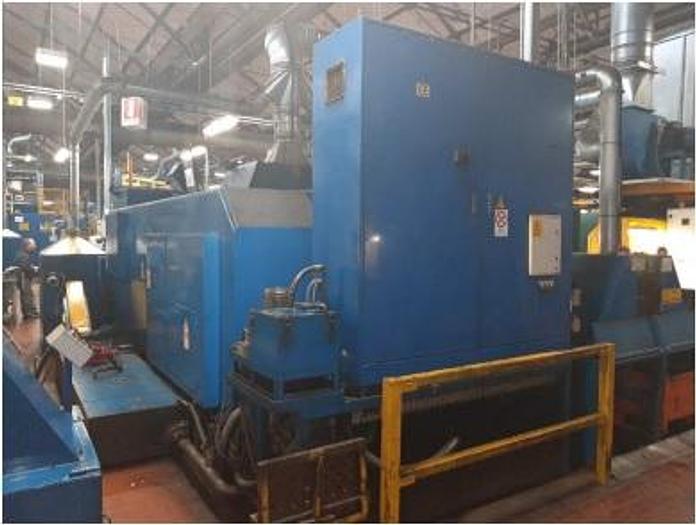

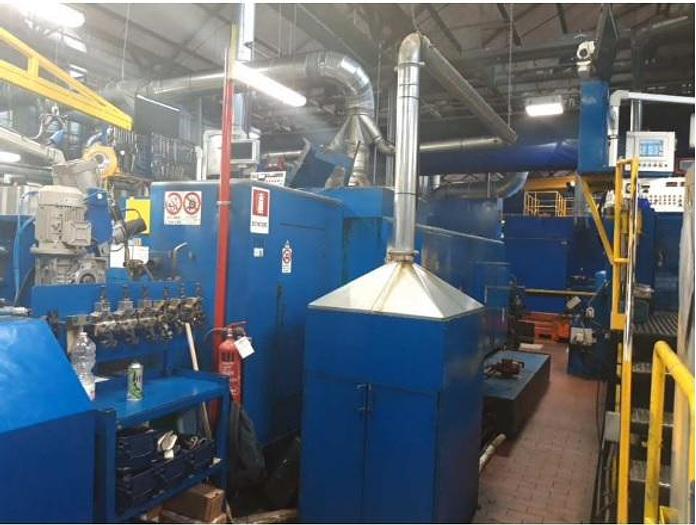

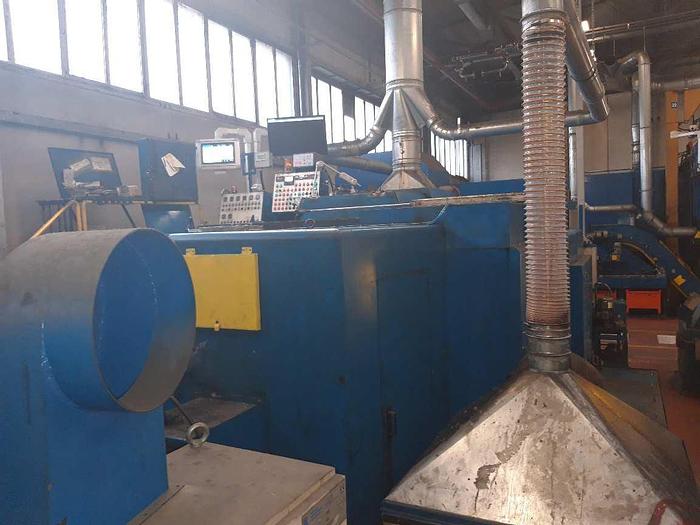

Header Progressive Bolt Makers BP-19B6S

Forging stations : 6,

Fingers’ number : 7,

Max. Diameter of wire : 23 mm,

Production ppm: 90 max,

Max. Diam. Screw : m18 x 110 iso 4014;

Max open upset : 37 mm

Max/min length of cutoff : 15/165 mm,

Dies diam. : 100 x 165 mm,

Punches diam. : 75 x 142 mm,

Cut-off quill diam./length 68 x 100 mm,

Punch kick out length 50 mm,

Dies pitch 114 mm,

Motor 75 hp / 55 kw,

Machine dimension : 9500 x 5500 mm,

Net weight : 34 tons,

Tonnage : 220 tons.

Quantity no. : 2
