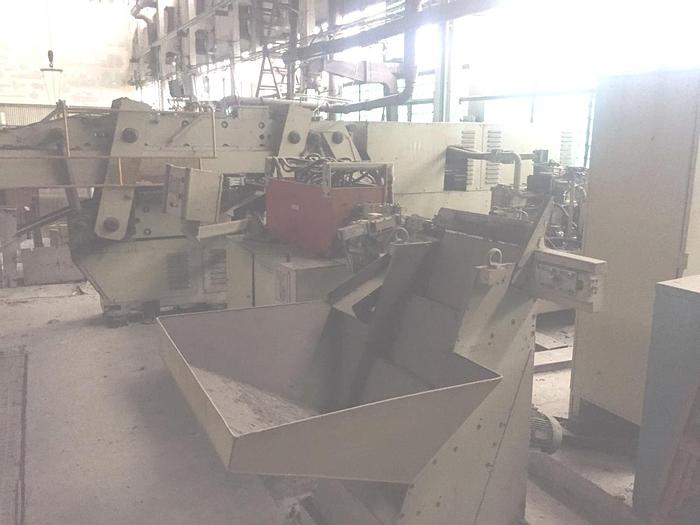

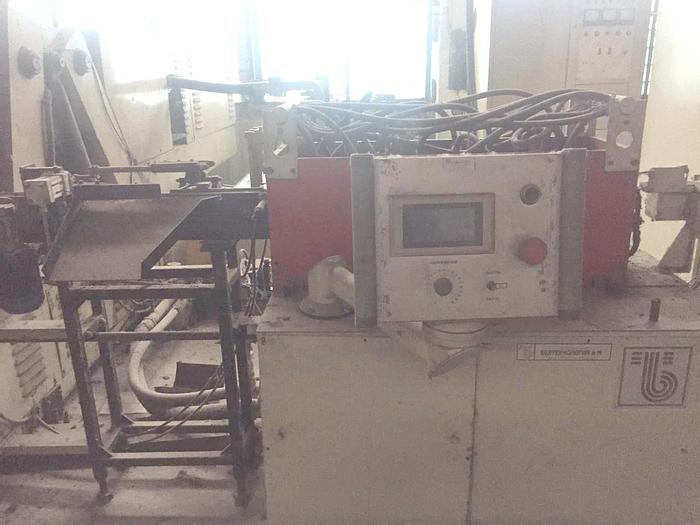

Cross Wedge Rolling Mill SP2000-1-1H
Sold
Specifications
Manufacturer | Abe Seiki,Japan |
Model | SP2000-1-1H |
Year | 2008 |
Condition | Used |
Stock Number | MA0954 |
Item condition | New |
Description
Diameter 32 - 60 mm,
Length up to 320 mm, when cutting end waste
Length up to 450 mm, without cutting end waste
Maximum productivity of 400 parts / hour (the possibility of regulation of productivity is provided)
Installed power of the mill is : 60 kW,

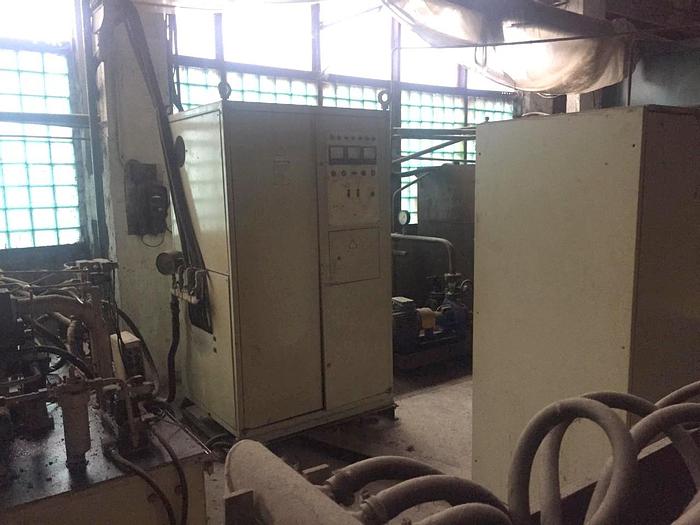

Maximum power of induction heater : 500 kW,
Average wedge tool life : 300,000 parts
The changeover time of the mill for rolling a new product –1 hours
Workpieces are heated automatically in a predetermined temperature range
Compressed air pressure : 0.4 - 0.5 MPa
Compressed air consumption : 2.8 m³ / min
Water pressure for cooling : 0.3 - 0.4 MPa
Water flow for cooling : 12 m³ / h
Weight : 13.5 tons,
Occupied area 39 m², installed on a concrete base 300 mm thick.
