10 tons Hammer Forging Hydraulic Line KGK1600

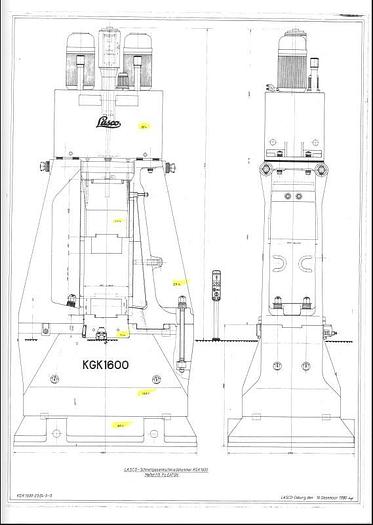

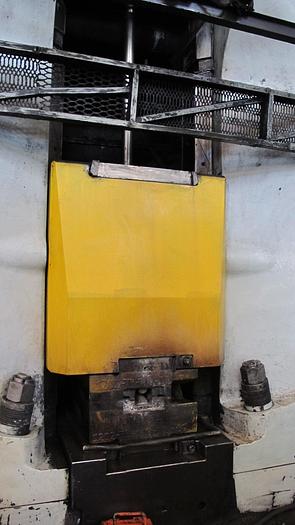

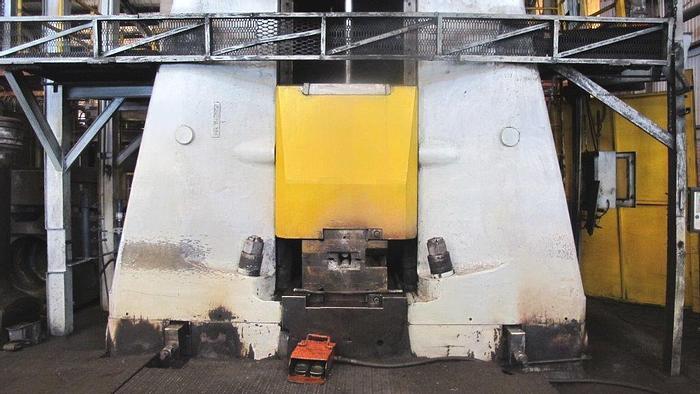

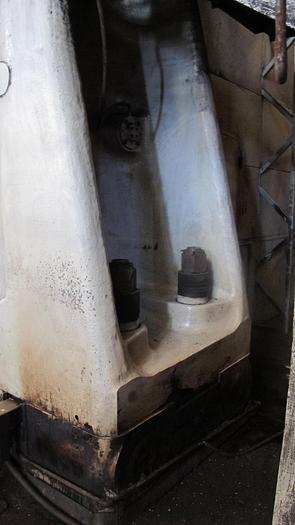

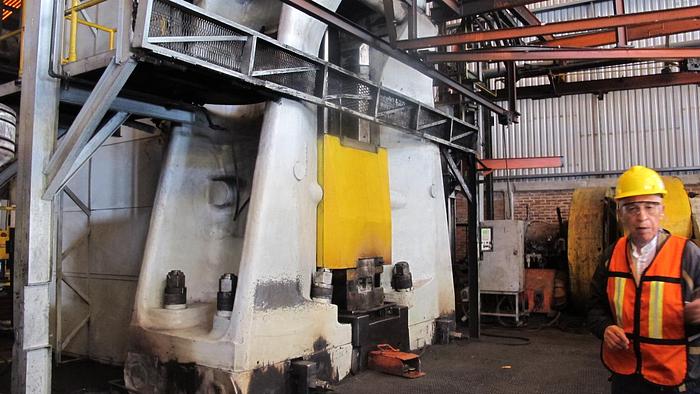

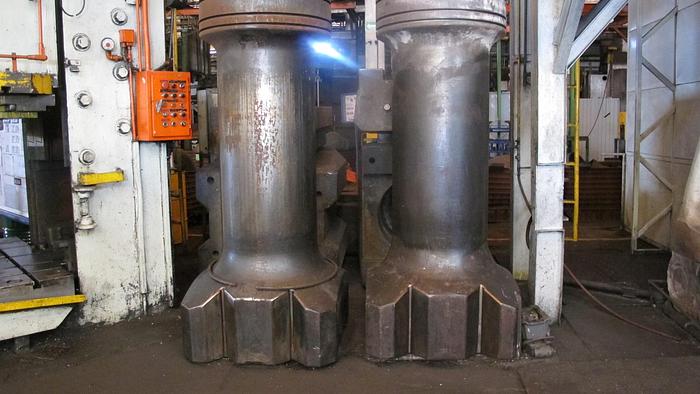

1) Hydraulic Forging Hammer

Make : Lasco,

Model : KGK1600,

Blow capacity : 16,000 kgm,

Capacity of continuous blow/minute : 60 to 70,

Blow high with standard die : 1100 mm,

Hammer total weight : 287 tons,

Anvil base weight : 192 tons (New anvil was installed in 2006),

Upgrades weight : 25,000 each (New upgrades were installed in 2013)

Both columns and anvil were made of weldable alloy according to ISO TR 10809-2,

Ram weight : 12 tons,

Die maximum weight : 2.5 ton,

Distance between upgrades,

Hammer total height : 10,600 mm,

Height above the floor : 8000 mm,

Ram dimensions length & width :

Wide (left to right) : 50.984” ,

Length (front to back) : 47.244”,

Sow Block dimensions - length & width :

Wide (left to right) : 42” ,

Length (front to back) : 63.5”,

Distance between the 2 columns

Clearance between uprights : 1100 mm (43.307”).

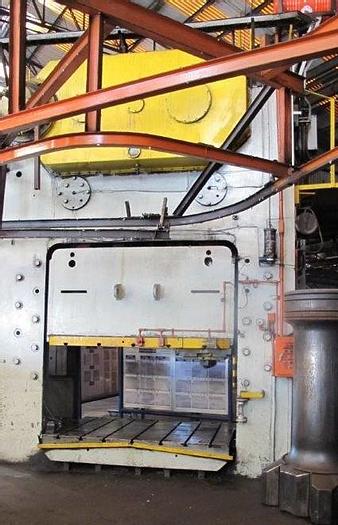

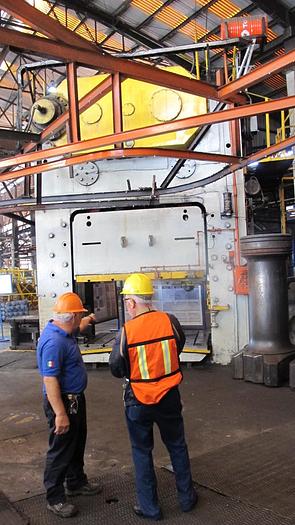

2) Trimming Press

Make : Wilkins & Mitchell

Model : W 102-54-18,

Press Capacity : 1500 tons,

Strokes per minute : 16,

Stroke : 650 mm,

Shut Height : 150 mm,

Table & Ram dimension : 2550 x 1800 mm,

Ram weight : 14 tons,

Machine total weight : 104 tons,

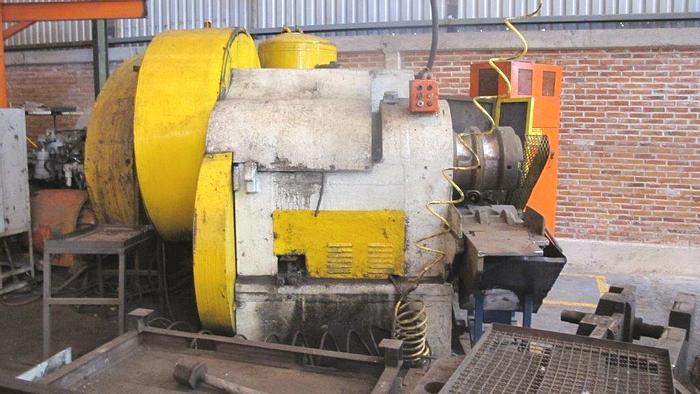

3) Reduce Rolling Machine

Make : National,

Model : TN 10,

Stock size : 5 mm

Maximum rolling length : 1016 mm,

Floor space wide : 3100 mm,

Floor space length : 3450 mm,

Machine height : 2600 mm,

Machine total weight : 25 tons.

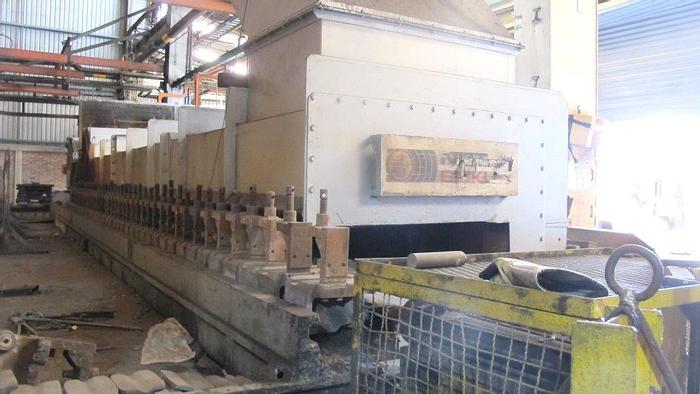

4) Nutec Gas Furnace :

1200° C

Total heating Capacity : 11,600,00 MBTU/Hr 12 burners,

70 to 80 pieces per hour.

With all the spare parts.

This Line was used to Forge I Beams & Gears.
