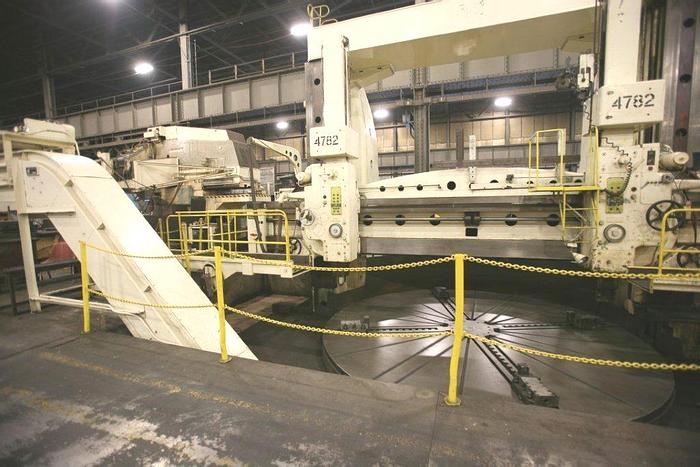

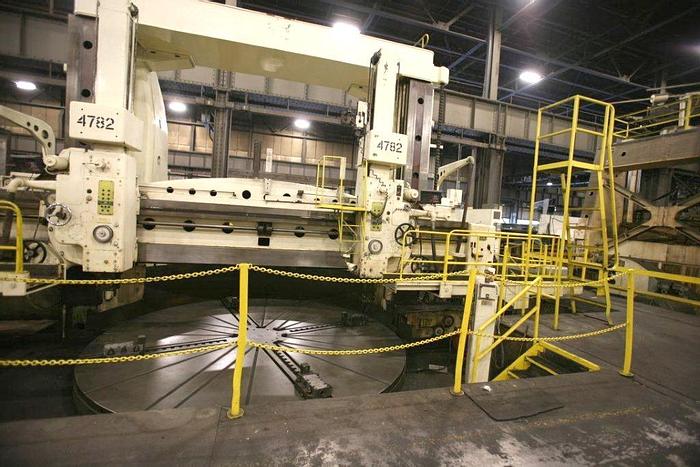

Lathe Vertical Turning SK50

Sold

Specifications

ManufacturerAbe Seiki,Japan
ModelSK50
Year1972
ConditionUsed
Stock NumberMA0923
Item conditionexcellent working condition
Capacity tons4750

Description

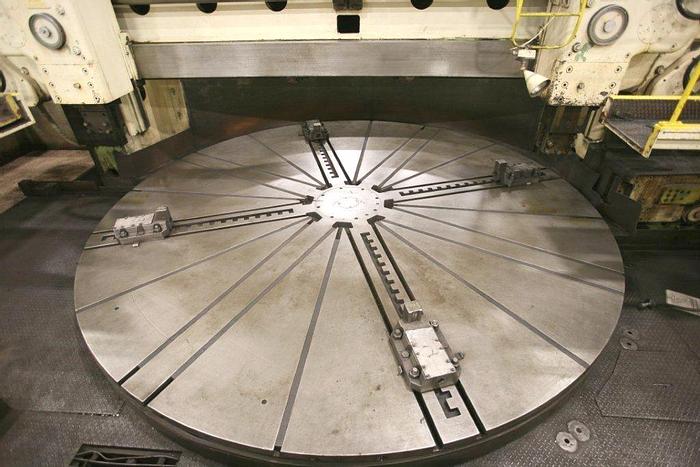

Table Diameter : 4750 mm,

Table Weight Capacity : 45 tons,

Table Motor, GE Variable Speed Drive : 80 kW,

Table Speeds (Inf. Variable) : 0.33 - 32.8 RPM,

Max Turning Diameter-Rams : 5180 mm,

Distance between the columns : 5200 mm,

Max Height Under Cross Rail : 3260 mm,

Max height under tool : 3050 mm,

Left Ram Vertical Travel : 1400 mm,

Left Ram Horizontal Travel :2960 mm,

Right Ram Vertical Travel : 1400 mm,

Right Ram Horizontal Travel : 2960 mm,

Vertical Ram Swivel : +/- 30 to 45 Degrees,

Feeds (15) : 0.005 - 11 mm/rev,

Dimensions:

Front to back : 8370 mm,

Left to right : 12600 mm,

Height : 9,890 mm,

Machine Weight : 134 tons.


Equipped with:

Two Swivelling Ram Heads

Side Head

2-Axis Newall DP7 Digital Readout System

Threading Attachment Inch/Metric

Electronic Tracer Conical Turning

Constant Surface Cutting Speed

Hydrostatic Table Bearings

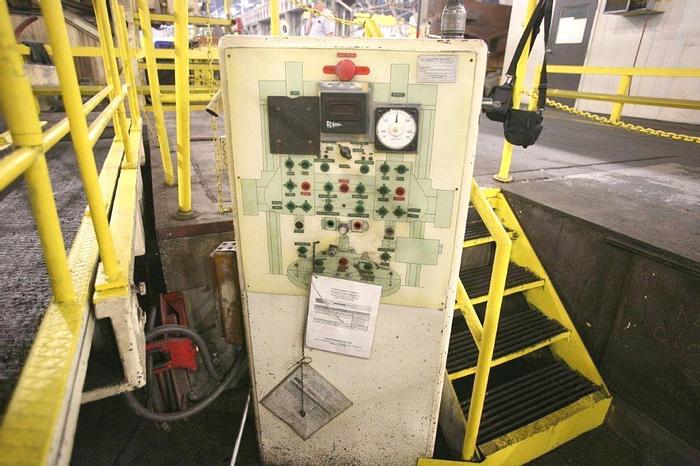

Pendant Control

Chip conveyor.
