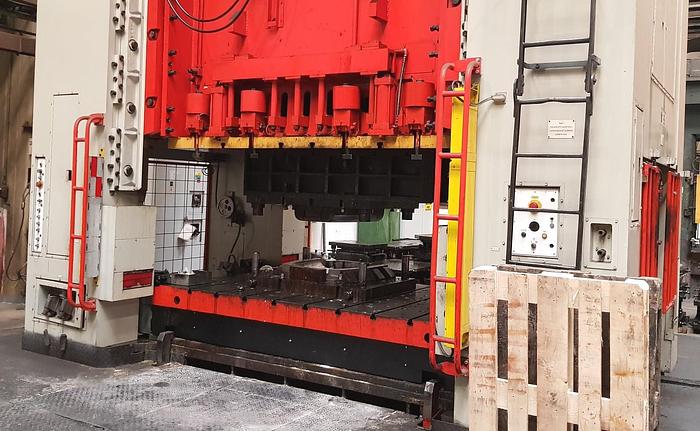

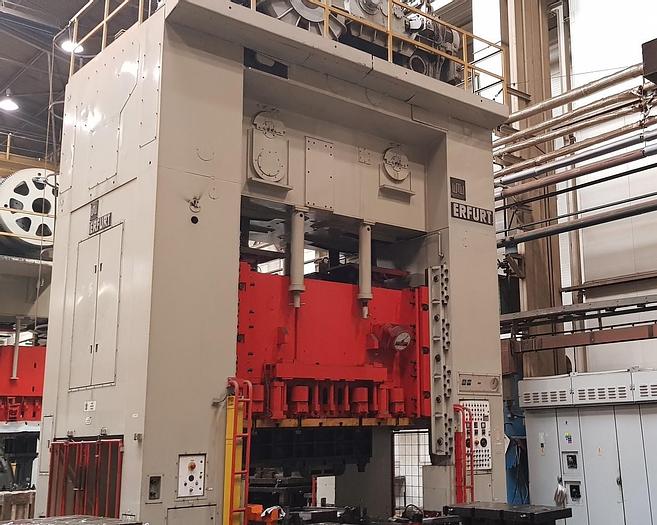

Press Sheet Stamping Mechanical PE 4-H-500/2800x1800 TS
Sold
Specifications
| Manufacturer | WMW Erfurt, Germany |
| Model | PE 4-H-500/2800x1800 TS |
| Condition | Used |
| Stock Number | MA0920 |
| Item condition | Good working condition |
| Capacity tons | 500 |
Description
Capacity : 500 tons,
Ram stroke : 500 mm,
Number of strokes per minutes : 25,
Adjustable ram : 400 mm,
Min. built-in tool height : 720 mm,
Max. built-in tool height : 1120 mm,
Table cushion:
- Stroke : 200 mm,
- Stroke adjustment : 200 mm,
- Retention force max. : 1000 kN,
Ejection force : 1000 kN,
Main motor power : 90 kW,
Approach power : 37 kW,
Table area : 2800 x 1800 mm,
Machine weight : 145 tons.

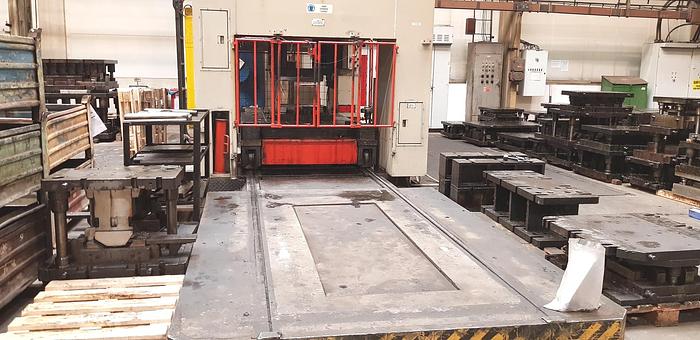

With Lateral Moving Bolster.
