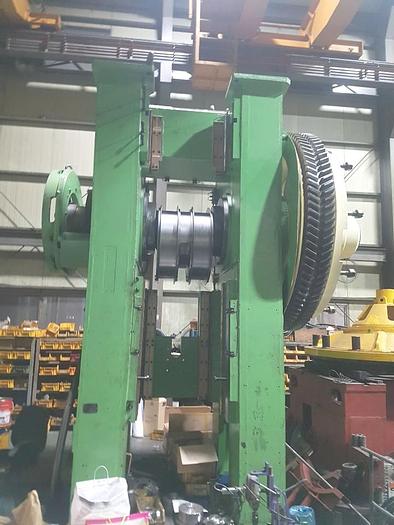

Press Hot Forging AKKG8040

Sold

Specifications

ManufacturerTMP Voronezh Russia
ModelAKKG8040
Year1987
ConditionRefurbished
Stock NumberMA0894
Item conditionDisassembled
Capacity tons1000

Description

Capacity : 1000 tons,

Ram stroke : 380 mm,

Number of strokes per minute 40,

Table dimensions : 930 x 1000 mm,

Ram dimensions : 780 x 1000 mm,

Opening in the column : 1250 x 560 mm,

Distance between columns : 1000 mm,

Max. distance between table and ram : 710 mm,

Table-to-ram adjustment : 10 mm,

Lower knockout stroke : 280 mm,

Lower knockout capacity : 10 tons,

Main motor power : 110 kW,

Total power required : 118 kW,

Machine dimensions : 4880 x 3920 x 5860 mm,

Press weight : 90 tons,


Two conrods, Ram adjustment, Hydraulic nuts

All other parts were overhauled with best conditions.

Electric and Mechanical drawings available.


Reconditioned work as below:

-New bearing

-Flywheel shaft refurbished and repainting

-Frame refurbished and repainting

-Guide refurbished

-Bush refurbished

-Crankshaft refurbished


New 1987, Retrofitted in 2021,

Electric, Pneumatic parts are excluded.
